Description

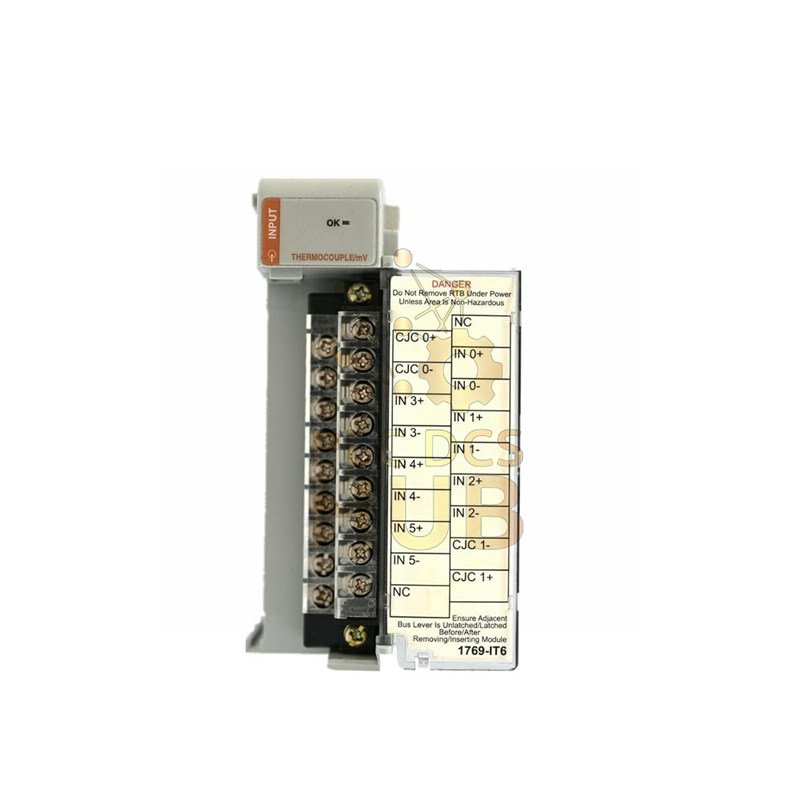

Allen-Bradley 1769-IT6 CompactLogix Thermocouple/mV Input Module
The Allen-Bradley 1769-IT6 is a precision measurement module for temperature and millivolt signals. It connects various thermocouples and low-voltage sensors to your control system. This module ensures accurate temperature monitoring in industrial processes.
Technical Specifications
- Brand: Allen-Bradley
- Model: 1769-IT6
- Input Channels: 6
- Thermocouple Types: J, K, T, E, R, S, B, N, C
- Millivolt Ranges: ±50mV, ±10mV
- Cold Junction Compensation: 2 built-in CJC sensors
- CJC Accuracy: ±0.3°C (±0.54°F)
- Nonlinearity: ±0.03%
- Current Draw: 100mA @ 5.1V DC, 40mA @ 24V DC
- Power Dissipation: 1.5W
- Wire Size: 22-14 AWG
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Dimensions: 118mm H x 87mm D x 35mm W (4.65″ x 3.43″ x 1.38″)
- Weight: 0.61 lbs (276 g)
Compatibility & Comparison
The 1769-IT6 works with CompactLogix systems. Compare with 1769-OF4VI output module or see 1769-OF4 analog output.
Installation Guide
Install within 8 modules of power supply. Use shielded cable (Belden 8761 recommended) for noise protection. Keep at least 2 slots away from AC power supplies.
FAQ
- 1. What thermocouple types does it support?
It supports types J, K, T, E, R, S, B, N, and C thermocouples. - 2. Does it need external calibration?
No, it auto-calibrates during power-up and can be programmed for periodic calibration. - 3. What is Cold Junction Compensation?
CJC automatically corrects for temperature changes at the connection point. - 4. Can it measure millivolt signals?
Yes, it accepts ±50mV and ±10mV signals from various transducers. - 5. What controllers does it work with?
It works with CompactLogix and compatible control systems.
Packaging & Warranty
Package Includes: One (1) Allen-Bradley 1769-IT6 Thermocouple Input Module.
We provide a 12-month warranty on this product.
