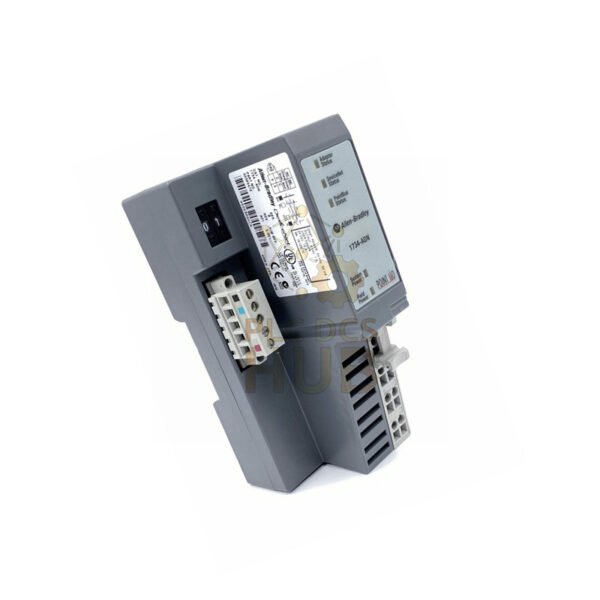

Power Your DeviceNet: Allen-Bradley 1734-ADN POINT I/O Adapter
The Allen-Bradley 1734-ADN seamlessly bridges your POINT I/O modules to a DeviceNet network. This robust adapter ensures real-time data transfer for distributed control systems. Download the full installation and configuration manual here.
Core Technical Specifications & Data
- Operating Voltage: 24V DC (23V DC minimum) for stable performance.
- Field Power Draw: Requires 400 mA with a high inrush of 6 Amps.
- Power Usage: Consumes 8.1 Watts, dissipating 2.8 Watts at 28.8V.
- Backplane Current: Provides 1000 mA to power other modules on the bus.
- System Capacity: Controls up to 63 I/O modules and 504 points total.
- Data Speed: Autobaud function supports 125K, 250K, 500K baud rates.
- Temp Range: Operates from -20°C to 60°C in harsh conditions.
- Noise Immunity: Excellent resistance to electrical interference for reliable data.
What’s in the Box?
- One Allen-Bradley 1734-ADN DeviceNet Adapter Module.
- Necessary hardware for DIN rail mounting and connection.
- Product information guide and safety leaflet.
We ship globally using FedEx, UPS, and DHL for reliable and fast delivery.
Expert FAQs
How does the auto-baud feature function?
- The module scans the network on startup to detect the baud rate. It automatically configures itself to match 125K, 250K, or 500K baud.
What is the maximum system capacity?
- This adapter can manage a large system with up to 63 I/O modules. This supports a maximum of 504 individual I/O points.
Can it handle extreme cold or heat?
- Yes, the adapter operates reliably within a wide temperature range of -20°C to 60°C. It is built for harsh industrial environments.
What is Auto Device Replacement (ADR)?
- ADR saves time during maintenance. If a module fails, swapping in a new one automatically transfers all configuration parameters.
Is there a specific mounting location?
- Yes, the 1734-ADN must be installed in the left-most position of any POINT I/O rack for proper communication.
