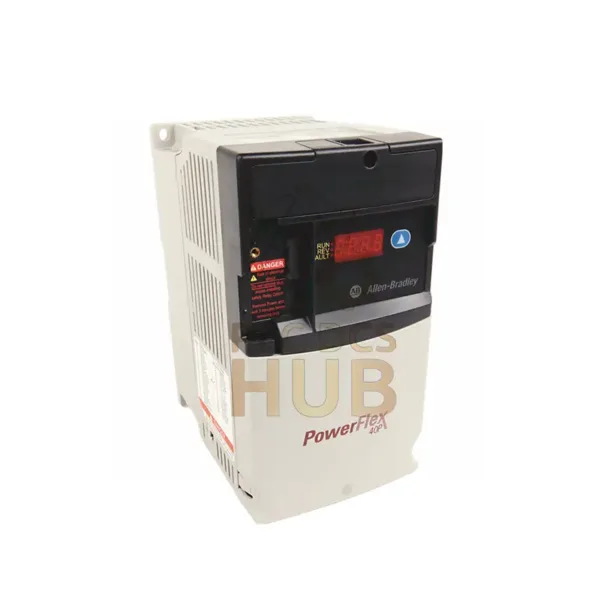

Allen Bradley Drive 22D-B5P0F104 PowerFlex 40P

Description

Allen-Bradley 22D-B5P0F104 PowerFlex Drive – Smart 1HP Motor Control

Ideal for: The Allen-Bradley 22D-B5P0F104 delivers precise speed control for 1HP motors in industrial automation. Perfect for pumps, conveyors, and machine tools.

Technical Details

• Model: 22D-B5P0F104 (PowerFlex 40P Series)
• Power: 1 HP (0.75 kW) output
• Voltage: 180-264V AC (3-phase)
• Frequency: 0-500 Hz adjustable
• Enclosure: IP20 (NEMA Open)
• Dimensions: 145 x 210 x 119.3 mm
• Weight: 1.5 kg (3.3 lbs)
• Inputs: 7 digital, 2 analog
• Relay Output: 3A programmable
• Cooling: Convection (no fan)
• Temperature Range: -10°C to 50°C

Expert FAQs

• Can I stack multiple drives together?
• Yes, if ambient temperature stays below 40°C.
• What fuse size is recommended?
• Use 10A fuses for protection.
• Does it support PID control?
• Yes, through analog inputs.
• How many preset speeds can I program?
• Multiple speeds via digital inputs.
• Is braking resistor included?
• No, but external braking is supported.

Package & Support

• 12-month quality guarantee
• Worldwide shipping via FedEx/UPS/DHL
• Includes mounting hardware

Comparison Choices

• 22B-E3P0C104 (Compact 3A version)
• 22B-E3P0H204 (Higher voltage 480V model)
