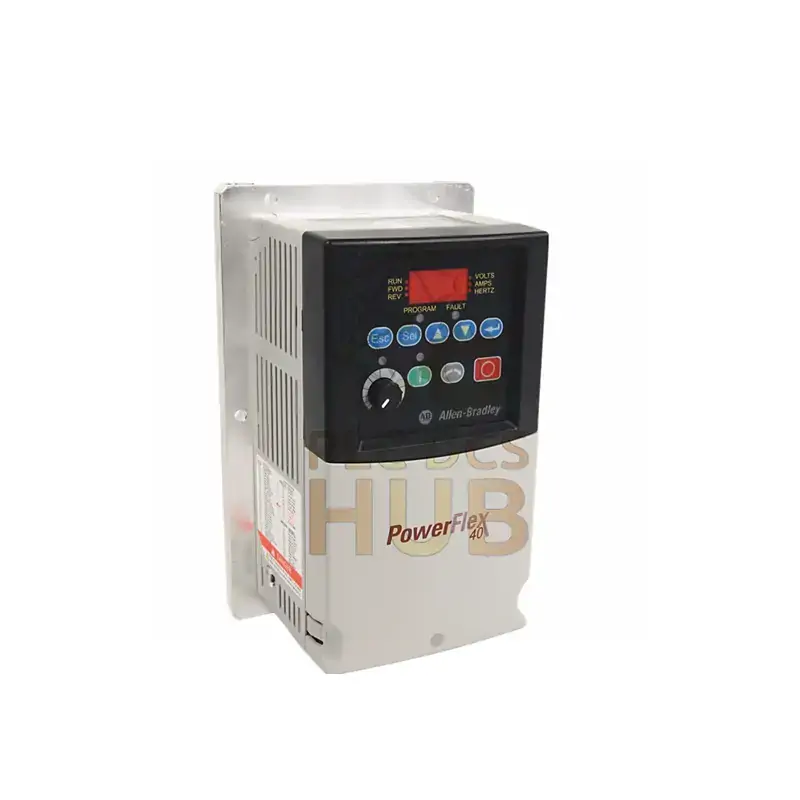

Allen-Bradley PowerFlex 40 Adjustable Frequency Drive – 22B-D017F104 (10 HP, 480V)
Description
The Allen-Bradley 22B-D017F104 is a high-performance PowerFlex 40 series adjustable frequency drive (AFD). Designed for industrial automation, this 3-phase, 480V AC drive delivers 10 HP (7.5 kW) output with sensorless vector control for precise motor speed regulation. Its compact Size C frame and flange-mount design (IP20 front/IP40-65 back) make it ideal for PLC integration. Features include RS-485 communication, dynamic braking, and an easy-to-use keypad.
Technical Data
| Brand | Allen-Bradley (Rockwell Automation) |
| Model | 22B-D017F104 (Full suffix: 22B-D017F104) |
| Input Voltage | 480V AC, 3-phase, 50/60 Hz |
| Output Power | 10 HP (7.5 kW), 17.0A |
| Control Voltage | 24V DC sink/source |
| Dimensions | 325 x 300 x 105.8 mm (12.8 x 11.81 x 5.44 in) |
| Weight | 11.93 kg (26.3 lbs) |
Installation & Compatibility
Mounts easily in PLC systems via flange. Compatible with Modbus RTU (03/06 commands) and supports networks of up to 31 drives. Works with standard 3-phase induction motors.
Package & Warranty
- 1x PowerFlex 40 Drive (22B-D017F104)
- Quick-start guide
- 12-month warranty
Shipping: FedEx, UPS, or DHL (express options available).
Download Manual
For detailed setup and programming, download the PowerFlex 40 User Manual here.
