Description

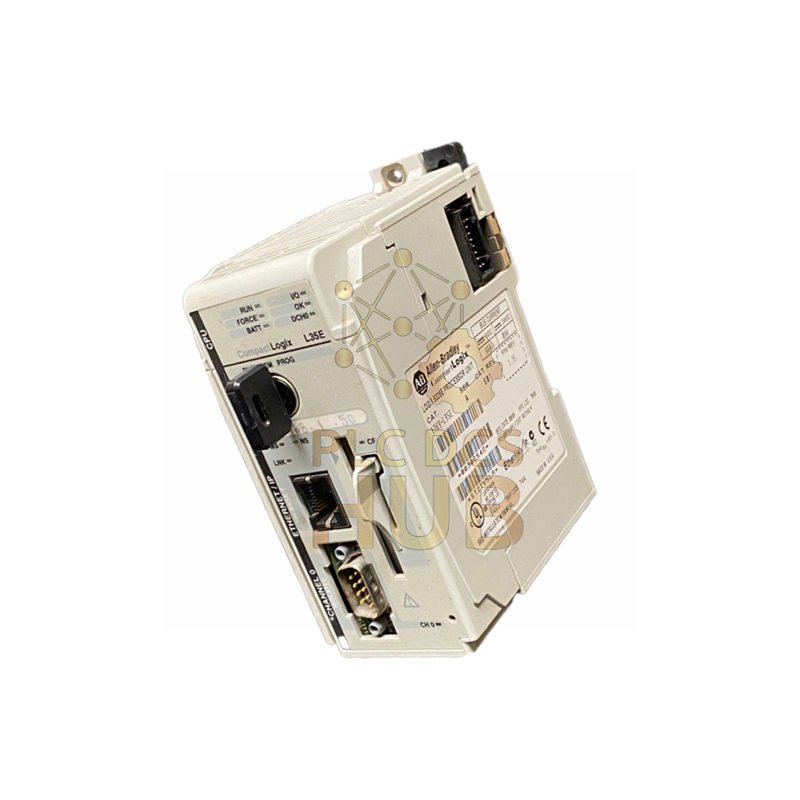

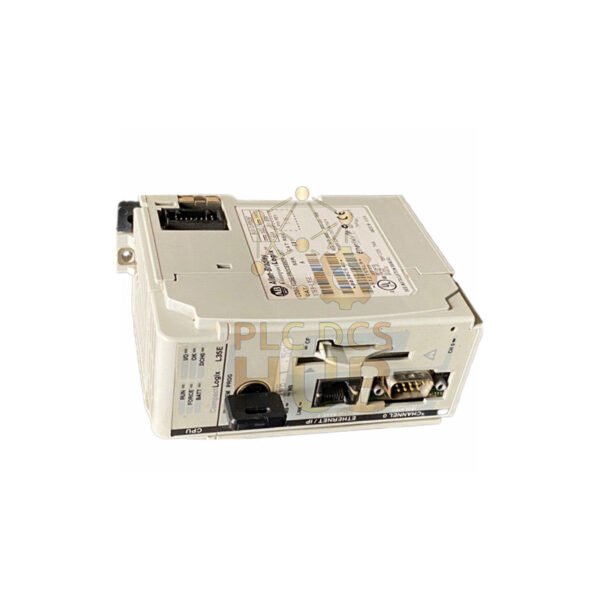

Allen-Bradley 1769-L35E CompactLogix Ethernet Controller
The 1769-L35E is a powerful automation controller. It has built-in Ethernet for easy connection. Perfect for medium-sized control tasks in factories.
Key Benefits of 1769-L35E
- Built-in Ethernet Port: Connect easily to networks and devices.
- Large Memory: 1.5 MB for complex programs.
- High Capacity: Supports up to 30 I/O modules.
- Flexible Communication: Works with Ethernet and RS-232 serial.
- Easy Programming: Uses standard languages like Ladder Logic.
Technical Specifications
- Brand: Allen-Bradley (Rockwell Automation)
- Model: 1769-L35E CompactLogix
- Module Type: Ethernet Processor
- User Memory: 1.5 MB
- I/O Capacity: 30 modules max
- Communication Ports: 1 Ethernet, 1 RS-232
- Backplane Current: 660 mA @ 5V DC
- Power Use: 5.5 Watts
- Work Temperature: 0 to 60 °C (32 to 140 °F)
- Storage Temperature: -40 to 85 °C (-40 to 185 °F)
- Weight: 0.30 kg (0.66 lbs)
- Battery Type: 1769-BA
Installation Guide
Mount the 1769-L35E on a DIN rail or panel. Use Cat5 or Cat6 cable for Ethernet. Keep the temperature between 0 and 60 °C.
Compare With Other Products
See how the 1769-L35E compares to other modules:
Frequently Asked Questions
- Q1: What cables work with the RS-232 port?
A1: Use 1747-CP3 or 1756-CP3 cables. Max length is 15.2 meters. - Q2: How many tasks can it run?
A2: It can handle up to 8 tasks at the same time. - Q3: What programming software is needed?
A3: Use Studio 5000 Logix Designer software. - Q4: Does it support DeviceNet?
A4: No, it supports Ethernet/IP and serial protocols. - Q5: What is the replacement battery?
A5: Use the Allen-Bradley 1769-BA battery.
