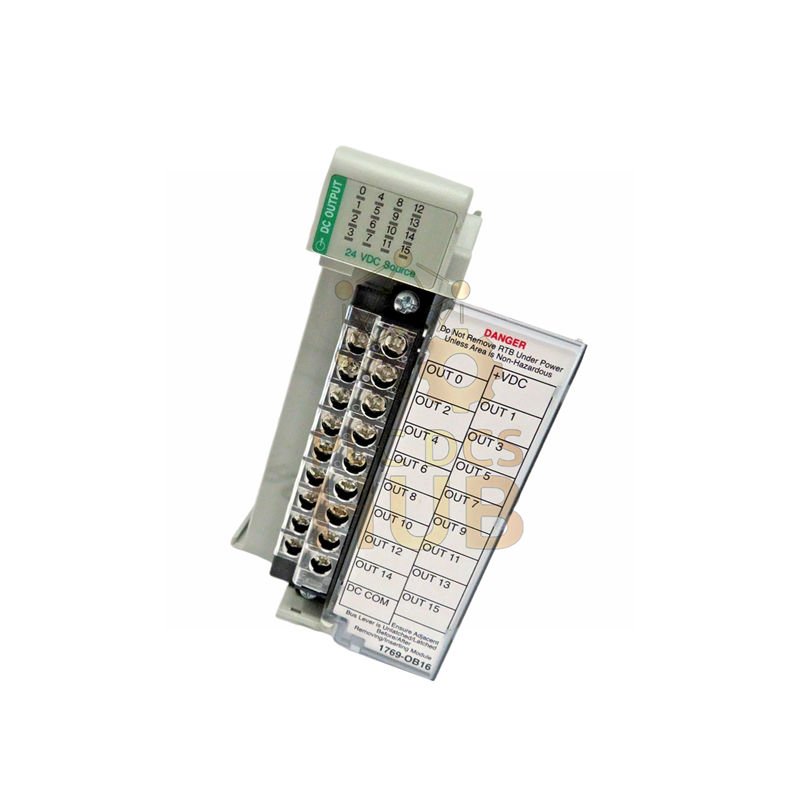

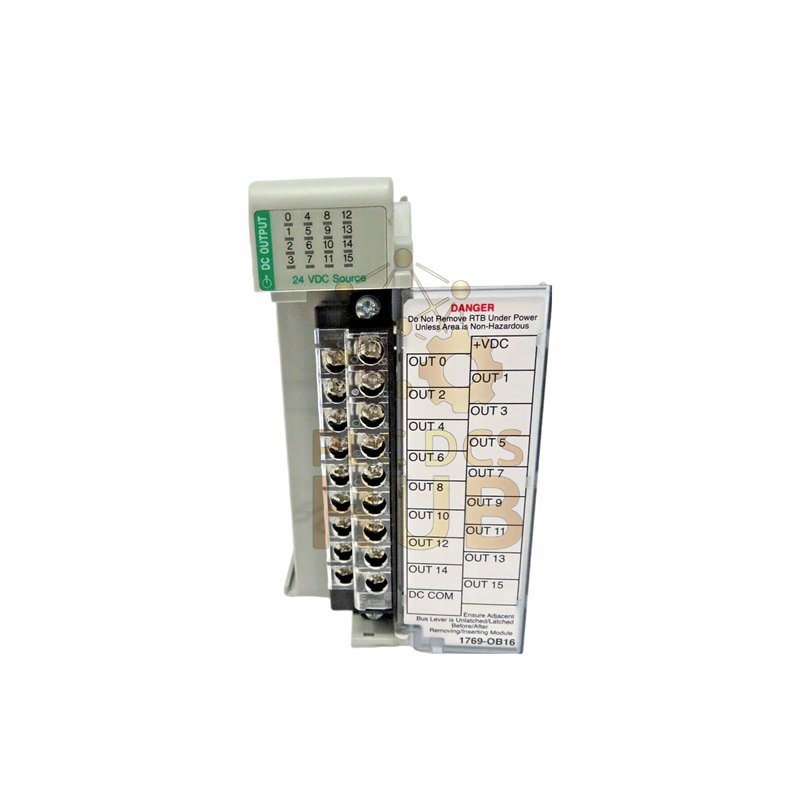

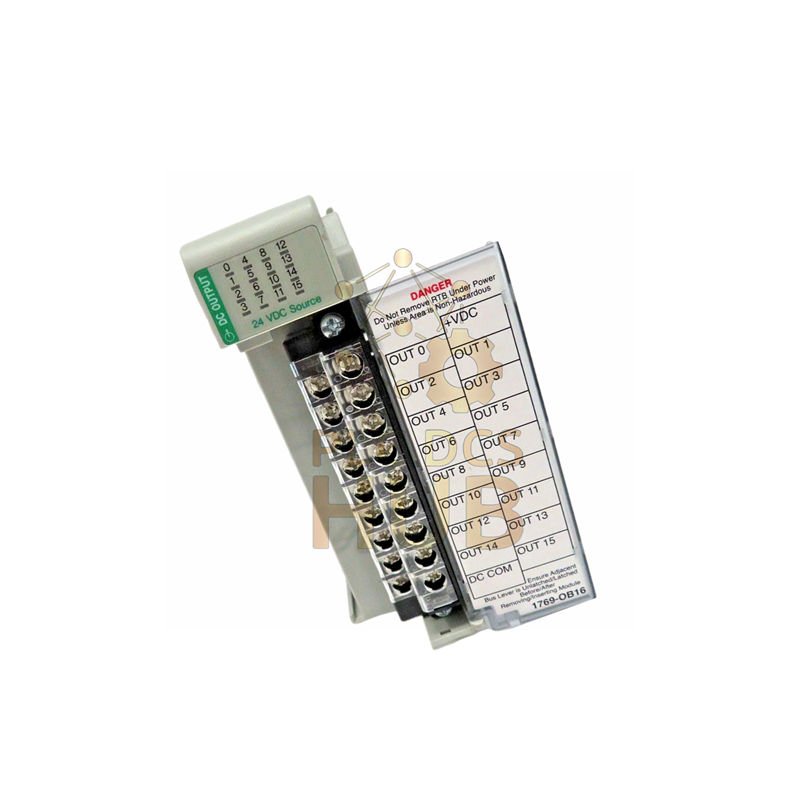

Allen-Bradley 1769-OB16 DC Output Module
The 1769-OB16 is a 16-point DC output module. It works with 24V DC systems. Perfect for controlling lights, relays, and small motors in automation.
Why Choose The 1769-OB16?
- 16 Output Points: Control many devices from one module.
- 24V DC Operation: Standard voltage for industrial systems.
- Fast Switching: Quick response for precise control.
- Easy Installation: Fits CompactLogix and MicroLogix 1500 systems.
- Strong Build: Designed for tough factory environments.
Technical Specifications
- Brand: Allen-Bradley (Rockwell Automation)
- Model: 1769-OB16 CompactLogix
- Module Type: Digital DC Output
- Number of Outputs: 16 points
- Voltage: 24V DC (20.4-26.4V range)
- Current per Point: 1.0A @ 30°C / 0.5A @ 60°C
- On Delay: 0.1 ms
- Off Delay: 1.0 ms
- Power Use: 2.11 Watts
- Work Temperature: 0 to 60 °C (32 to 140 °F)
- Wire Size: 22-14 AWG (Solid), 22-16 AWG (Stranded)
- Weight: 0.28 kg (0.61 lbs)
Installation Guide
Install the 1769-OB16 on a DIN rail or panel. Keep it within 8 modules of the power supply. Use the included 1769-RTBN18 terminal block. Always turn off power before wiring.
Compare With Other Products
See how the 1769-OB16 compares to other modules:
Frequently Asked Questions
- Q1: What systems is the 1769-OB16 compatible with?
A1: It works with CompactLogix controllers and MicroLogix 1500 systems. - Q2: What is the maximum current per output?
A2: 1.0 Amp at 30°C, derated to 0.5A at 60°C. - Q3: Can it control AC loads?
A3: Yes, when used with an interposing relay. - Q4: What wiring is recommended?
A4: Use 22-14 AWG solid or 22-16 AWG stranded copper wire. - Q5: Is the terminal block included?
A5: Yes, the 1769-RTBN18 terminal block comes with the module.
