Allen-Bradley Powerflex 400 AC Drive | 22C-D038A103 | Buy Now

Description

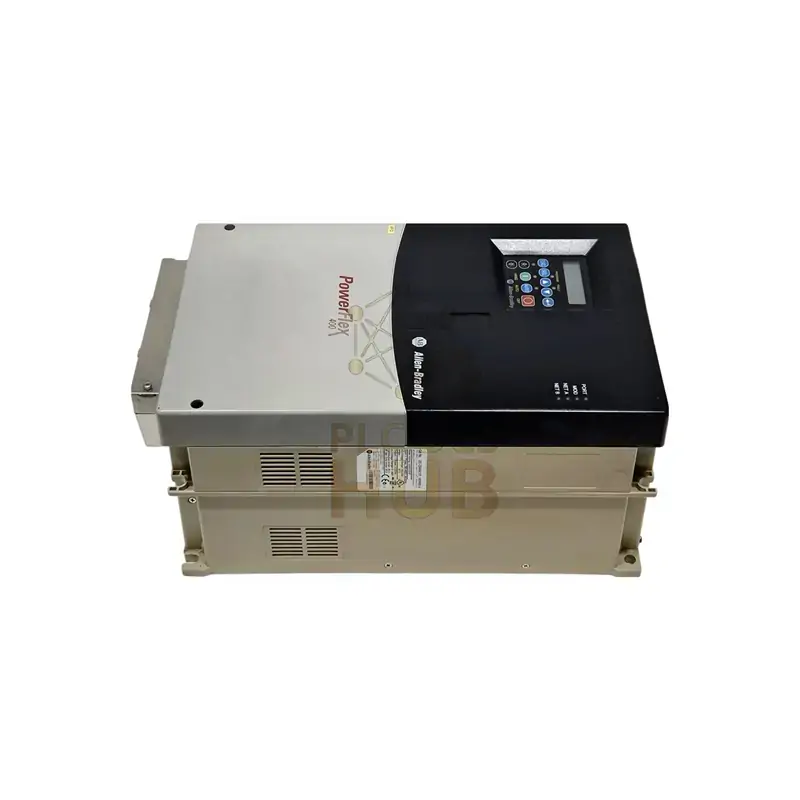

Allen-Bradley 22C-D038A103 PowerFlex 400 Drive – Heavy-Duty 25HP Motor Control

Powerful Performance

The 22C-D038A103 delivers robust 25HP control for demanding industrial applications. Perfect for large pumps, fans, and HVAC systems.

Key Specifications

• Model: PowerFlex 400 22C-D038A103
• Power: 25 HP (18.5 kW)
• Input: 342-528V AC, 3-Phase, 40A
• Output: 0-460V AC, 38A continuous
• Control: V/Hz, PID, Slip Compensation
• Enclosure: IP30 (NEMA 1) panel mount
• Wire Size: 8 AWG minimum (2 AWG max)
• Communication: RS485 + 6 optional networks
• Display: 2-line LCD with keypad
• Protection: Requires 125A fuse

5 Expert Questions Answered

1. What protection devices are needed?
   Requires 125A fuse and contactor (100-D110 recommended).
2. How many motors can it control?
   1 main motor + 3 auxiliary motors (400% total capacity).
3. What’s the maximum cable length?
   Motor cables should not exceed 50 meters.
4. Can it work in dirty environments?
   Yes with proper enclosure (IP30 rated).
5. How is it programmed?
   Via built-in keypad or remote interface module.

Shipping & Support

12-month warranty. Ships same day via FedEx, UPS, or DHL.

Need installation guidance? Download the complete 22C-D038A103 manual here.
