Description

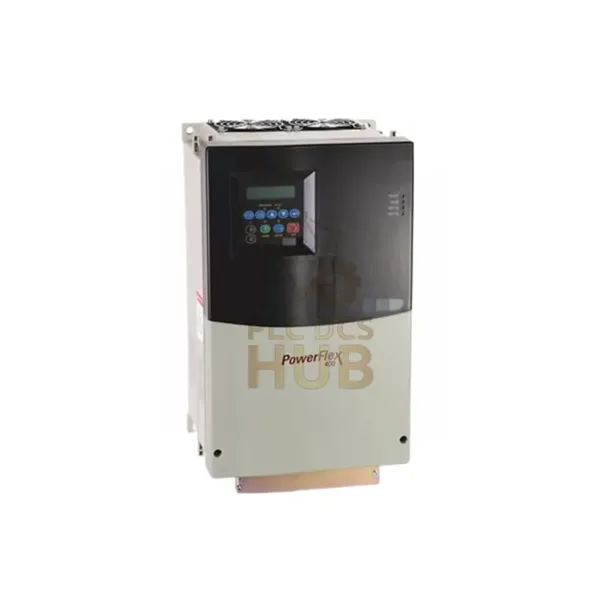

Allen-Bradley 22C-D6P0F103 – 3HP Compact Drive (6A)
Perfect for Small Pump & Fan Systems
- Controls 3HP motors efficiently
- Works with 380-480V AC, 3-phase power
- Compact flange mount design saves space
- Built-in keypad for easy programming
- Lightweight – only 7.5 kg
Need installation help? Download 22C-D6P0F103 manual
Technical Details
- Model: Allen-Bradley 22C-D6P0F103
- Power: 3 HP (2.2 kW)
- Current: 6A output (4.8A input)
- Frequency: 50-60 Hz
- Size: 260x130x180mm (10.2×5.1×7.1in)
- Protection: IP20 (indoor use)
- Connections: 7 digital inputs, 2 analog outputs
Key Benefits
- Simple installation with flange mount
- Multiple I/O for flexible control
- Compact size fits small spaces
- Works with standard 3-phase power
Common Questions
- What wire size is needed?
Use 14 AWG copper wires minimum. - Can it run on single-phase power?
No, requires 3-phase power input. - Is the display removable?
No, the keypad is fixed to the unit. - What’s the warranty period?
Full 12-month coverage included. - Maximum ambient temperature?
40°C (104°F) for safe operation.
What’s Included
- 1x 22C-D6P0F103 drive unit
- Mounting hardware
- Quick start guide
- 12-month warranty – we fix any issues
Fast shipping: FedEx, UPS, or DHL available.
