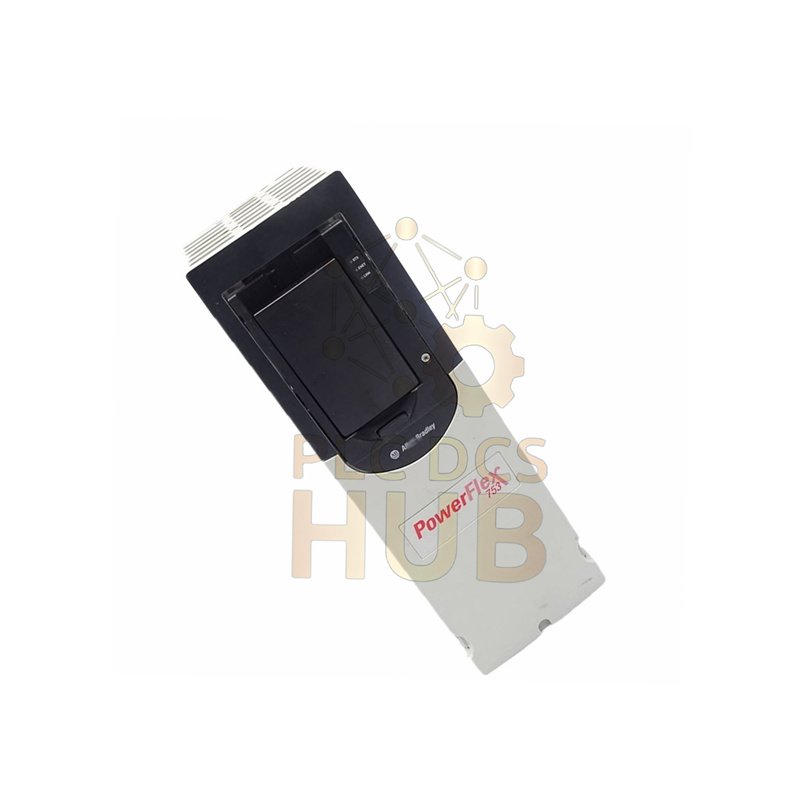

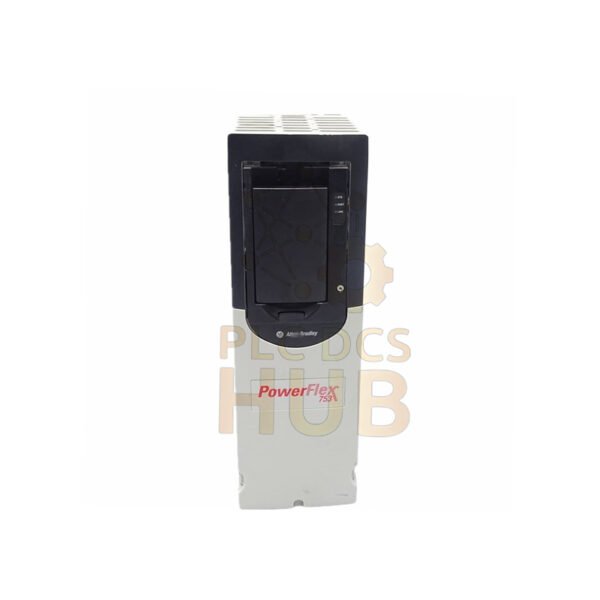

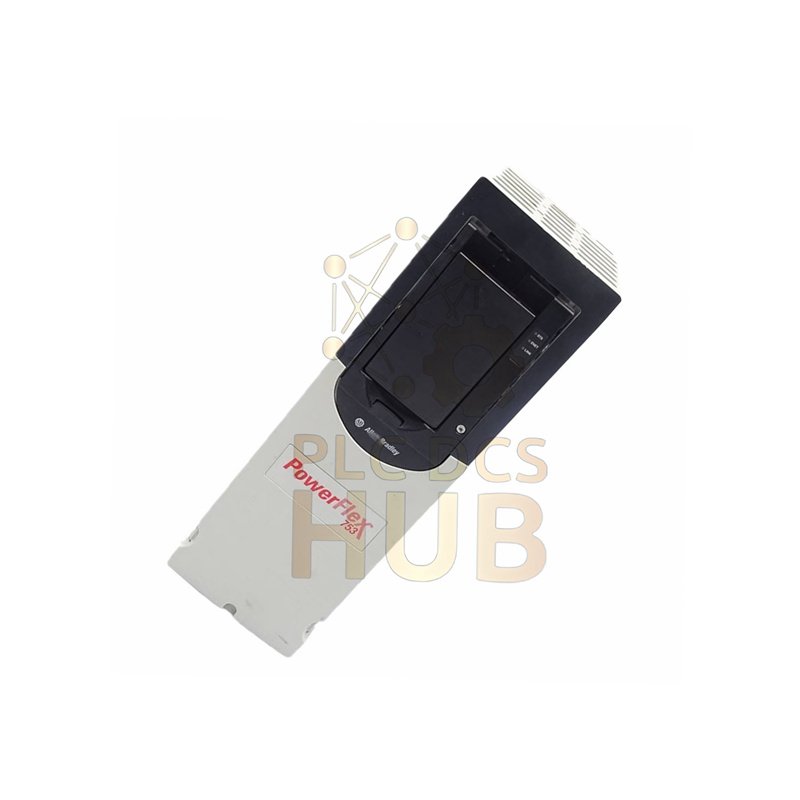

Allen Bradley PowerFlex 753 Drive 20F11ND022AA0NNNNN

Description

Description

• Allen Bradley builds the strong 20F11ND022AA0NNNNN drive for clear motor control.
• The unit is part of the PowerFlex 753 series.
• It drives motors with steady 22 A output.
• It offers V/Hz, vector, and sensorless modes for many uses.
• The design supports 480 VAC and 650 VDC input.
• The drive fits 11 kW (15 HP) ND and 7.5 kW (10 HP) HD loads.
• The 0–599 Hz range gives tight speed control.
• The open-type frame allows fast cooling with air flow.
• The brake transistor inside helps stop motors faster.

Key Technical Features

• Brand: Allen Bradley
• Model: 20F11ND022AA0NNNNN
• Series: PowerFlex 753
• Type: Adjustable Frequency Drive
• Output Current: 22 A
• Input Voltage: 480 VAC or 650 VDC
• Power Rating ND: 11 kW / 15 HP
• Power Rating HD: 7.5 kW / 10 HP
• Frequency Range:</b 0–599 Hz
• Input Phase: Three-phase
• Overload: 110% for 60 seconds
• Enclosure: IP20 / IP00
• Cooling: Air cooled
• Mount Style: Open type
• Brake Transistor: Internal
• Weight: 20 lbs
• UPC: 884951163638
• Temp Range: 0°C to 50°C
• Extra EMI strength: Good noise control for clean signals.
• Start-up help: AC input with precharge for safe starts.
• Control Speed: Fast drive update for smooth motion.
• Torque boost: High vector torque at low speed.
• Frame: Frame 2 design for easy panel fit.

Product Benefits

• Simple wiring for fast setup.
• Stable torque in slow motor ranges.
• Strong air cooling helps long running hours.
• Wide input options support many plants.
• Fast brake action with the built-in transistor.
• Clear fault data for faster service.

Applications

• Fans with wide speed needs.
• Pumps with firm torque load.
• Mixers that need smooth speed ramps.
• Compressors with high duty cycles.
• Material moving systems in plants.

Warranty

• 12-month warranty from delivery date.
• Covers normal defects and build issues.

Shipping

• Fast global shipping with FedEx.
• UPS and DHL options available.
• Safe packing for long travel.

FAQ

• How do I reduce heat during long operation?
• Leave clear space around the drive and keep air flow open.
• Why does the drive trip during quick speed changes?
• Check load torque and tune the vector mode for smoother ramps.
• Can I run long motor cables with this unit?
• Use shielded cable and ground both ends for clean signals.
• What is the best way to protect the drive in dusty rooms?
• Place it in a clean panel and check filters often.
• How do I improve stop time without extra hardware?
• Use the internal brake transistor and set brake levels in the menu.
