Description
PowerFlex EMC Filter Kit – Superior Noise Reduction for Industrial Drives

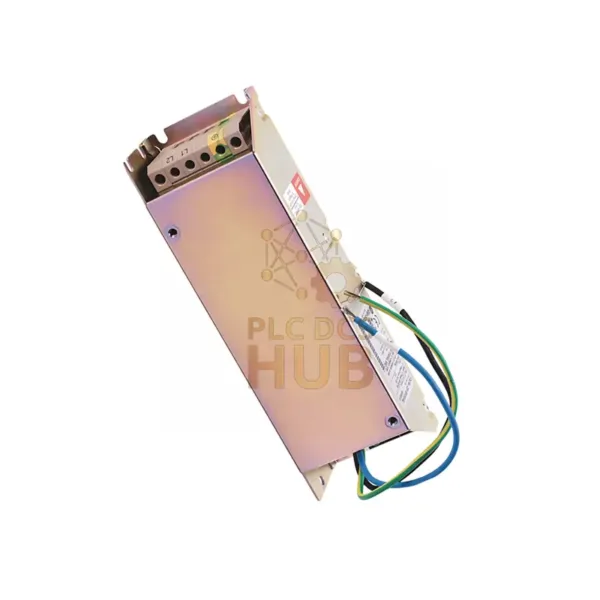

Enhance your PowerFlex 4M performance with the 22F-RF6P0-AL filter. Perfect for 380-480V AC systems with long cable runs. Get installation instructions →
Key Advantages
- L-Type Design – Superior EMI/RFI filtering
- 6A Capacity – For 0.5-2HP motors (0.4-1.5kW)
- Wide Voltage Range – 380-480V AC operation
- Long Cable Support – Reduces interference in extended runs
Technical Specifications
| Model Number | 22F-RF6P0-AL |
| Current Rating | 6A continuous |
| Power Range | 0.4-1.5kW (0.5-2HP) |
| Mounting Type | Panel mount |
| Enclosure Rating | IP20 (Open Type) |
| Terminal Size | M4 screw terminals |
| Dimensions | 4.7″ x 2.4″ x 1.8″ |
Common Questions
- What’s the maximum recommended cable length?
Optimized for runs up to 150 meters. - Does this filter require maintenance?
No – maintenance-free operation. - Can it be used outdoors?
No – IP20 rating is for indoor use only. - What’s the installation torque for terminals?
0.8 N·m (7 lb-in) recommended. - Is this filter UL listed?
Yes – meets UL standards.
Package Includes
- 1× 22F-RF6P0-AL filter unit
- Panel mounting hardware
- Installation guide
- 12-month quality guarantee
Shipping Information
Fast delivery available via FedEx, UPS or DHL with tracking number provided.
