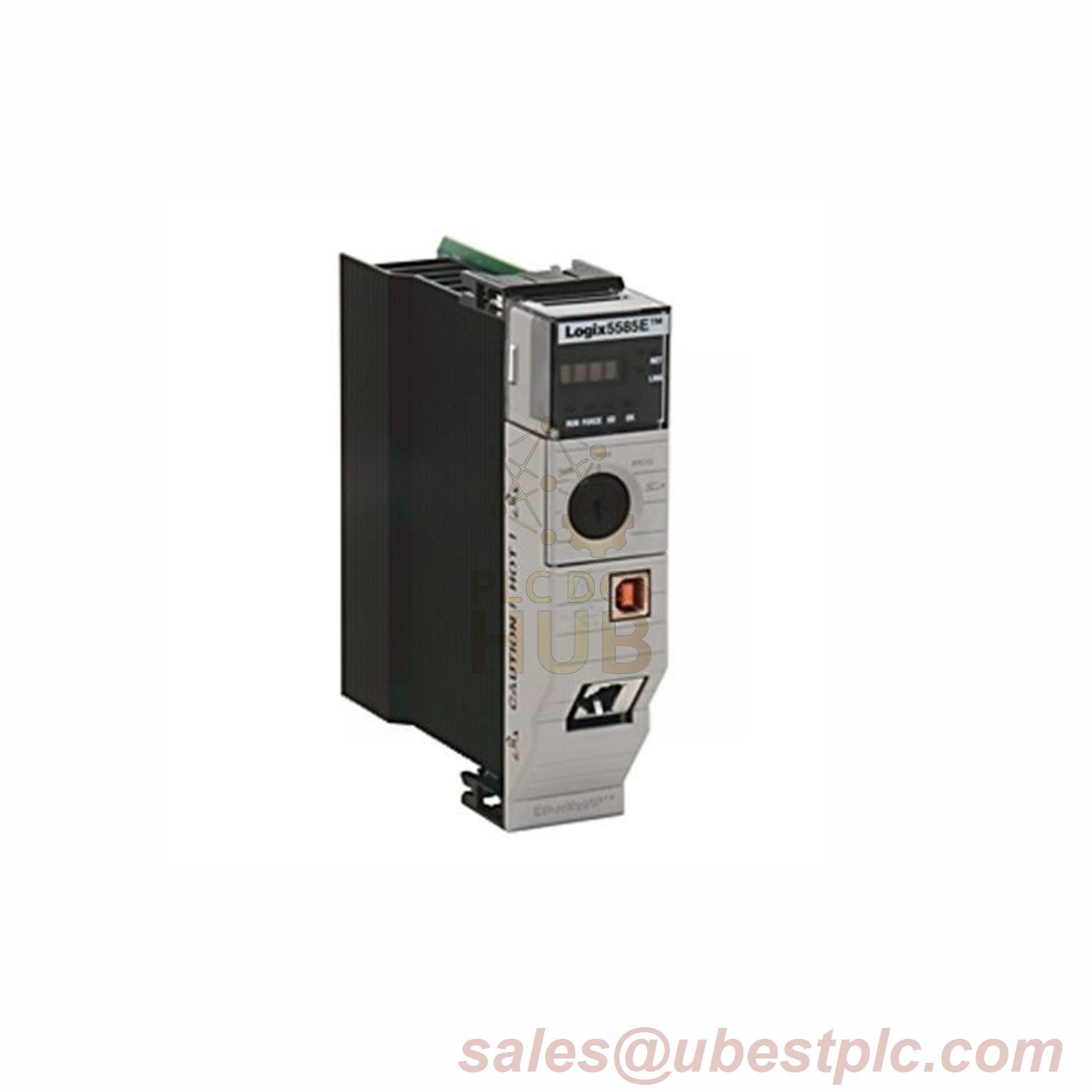

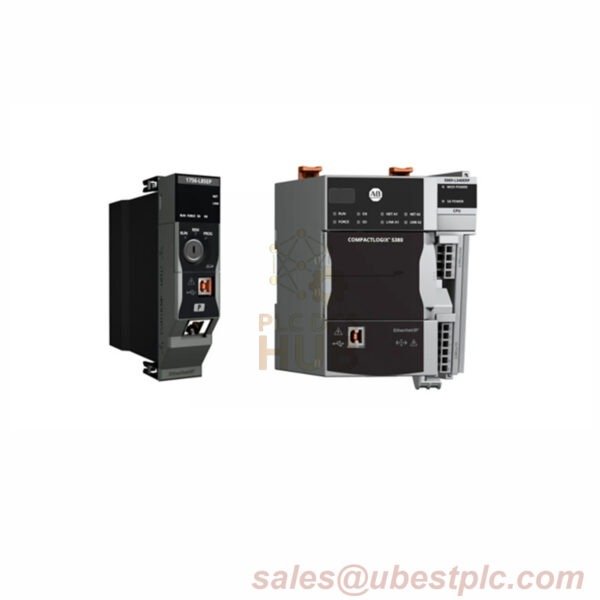

Allen-Bradley 1756-L85EP ControlLogix Process Controller
Maximum performance with the Allen-Bradley 1756-L85EP controller. This powerhouse module features an impressive 40 MB user memory and supports up to 300 EtherNet/IP devices. With built-in Gigabit Ethernet and a clear 4-character display, this 1756-L85EP controller delivers top-tier performance for the most demanding process applications.
Complete Technical Specifications
- Brand: Allen-Bradley / Rockwell Automation
- Model: 1756-L85EP Process Controller
- Series: ControlLogix 5580E
- User Memory: 40 MB
- EtherNet/IP Devices: 300 maximum
- Digital I/O Capacity: 128,000 points
- Analog I/O Capacity: 4,000 points
- Ethernet Speed: 10/100/1000 Mbps
- USB Speed: 12 Mbps (USB 2.0)
- Display: 4-character alpha/numeric
- Power Dissipation: 6.2 Watts
- Thermal Dissipation: 21.2 BTU/hour
- Current Draw: 1.2A @ 5.1V DC, 5 mA @ 1.2V DC
- Operating Temperature: 32°F to 140°F (0°C to 60°C)
- Vibration Rating: 2G (10-500 Hz)
- Shock Rating: 30G operating
- Humidity Range: 5-95% non-condensing
- Chassis Compatibility: Series C (optimal), Series B (derated)
Get Complete Installation Guide
- Full setup instructions for large-scale process control
- Network configuration for 300 EtherNet/IP devices
- Programming examples for maximum memory utilization
- Display programming and advanced diagnostic techniques
Download the full product manual here.
Shipping & Warranty Information
We ship worldwide using reliable carriers including FedEx, UPS, and DHL. Your package includes:
- One (1) Allen-Bradley 1756-L85EP Process Controller Module
Your investment is protected by a comprehensive 12-month warranty.
