Aluminum Body Proximity Probe Housing Assembly 21000-28-05-20-039-04-02

Description

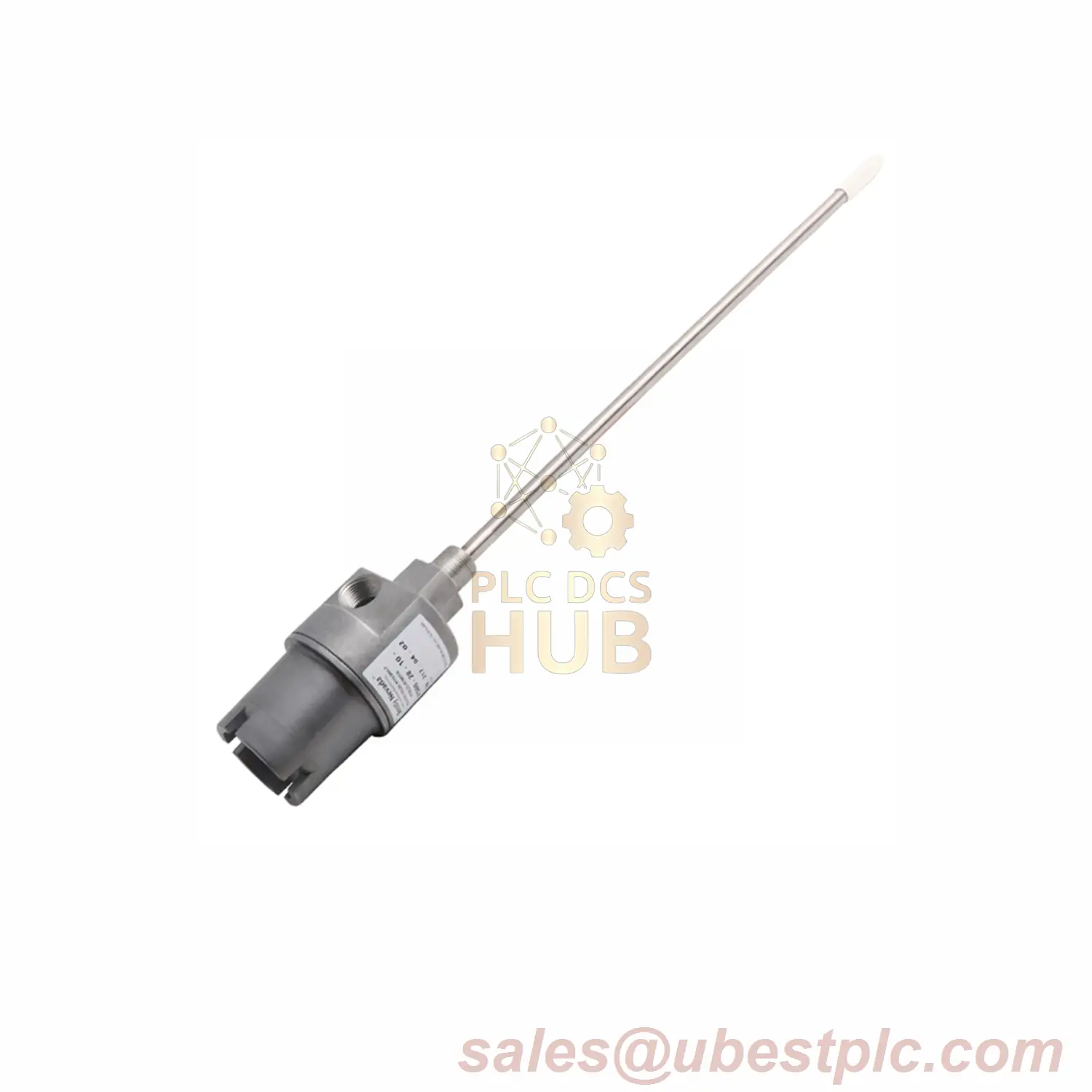

Bently Nevada 21000 Proximity Probe Housing Assembly

21000-28-05-20-039-04-02: A new, factory-sealed hazardous-area-certified assembly designed for precision machinery monitoring. Ideal for industries requiring explosion-proof solutions, including oil & gas, power generation, and heavy manufacturing.

Technical Data

• Brand: Bently Nevada
• Model: 21000-28-05-20-039-04-02
• Range: 3300 XL 8 mm probe
• Cable Length: 0.5 m (20 in)
• Penetration: 3.9 in
• Mounting: 3/4-14 NPT
• Temperature Range: -50°C to +80°C
• Material: Aluminum body with 304 stainless steel sleeve

Suffix Code Breakdown

• 28: 3300 XL 8 mm probe with connector
• 05: 0.5 m cable
• 20: 2″ standoff adapter
• 039: 3.9″ probe penetration
• 04: One 3/4-14 NPT plug
• 02: 3/4-14 NPT mounting thread

Key Features

• Certifications: CSA Type 4, RoHS, API 670 compliant
• Hazardous Area Approval: Class I/II/III Divisions 1 & 2
• Package Includes: Probe, O-rings, thread seal, dome cover
• Warranty: 12-month factory warranty

Typical Applications

• Gas turbine vibration monitoring
• Pipeline compressor protection systems
• Refinery pump alignment verification

Contact for Technical Specifications: sales@ubestplc.com

Check official datasheet to know more detailed information: 21000- 24701- and 164818 Proximity Probe Housing Assemblies Datasheet
