Bently Nevada 129966-03 Universal Monitor Processor | UNMP vibration protection

Description

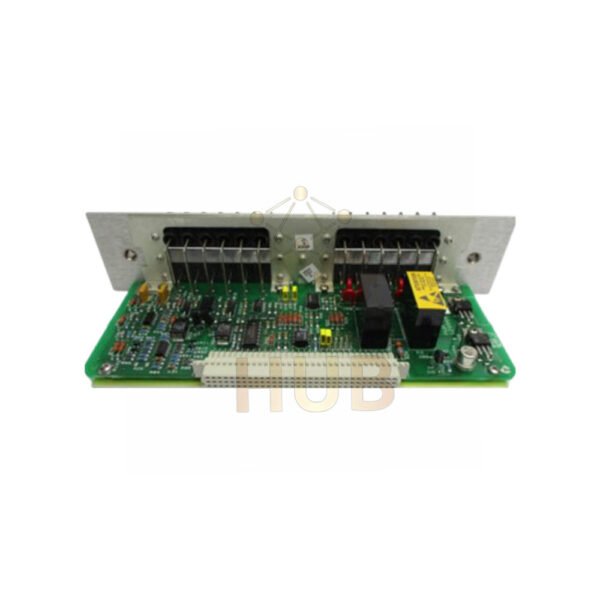

🧩 129966-03 · Universal Monitor Processor (UNMP)

• Bently Nevada 129966-03 = brain of the 3500 Series machinery protection system.
• Handles vibration, position, speed, temperature monitoring.
• Built for continuous condition monitoring and diagnostics.
• Works with 4‑20 mA analog outputs and MODBUS communication.
• Industrial grade: -20°C to +65°C operating range.

📐 Configuration breakdown – 129966-03

• Bently Nevada 129966-03 (main processor)
  • 🔹 Part number suffix: -03 = latest hardware revision (fully compatible with existing 3500 racks).
  • 🔹 System: 3500 Series – fits any standard 3500 slot.
  • 🔹 Function: Universal Monitor Processor – collects data from all monitor modules.
  • 🔹 Communication:
    • MODBUS RTU / TCP via optional communication modules.
    • Four 4‑20 mA outputs (programmable, isolated).
  • 🔹 Power input: 18‑36 VDC (nominal 24 VDC).
  • 🔹 Mounting: 3500 rack, rear connector.

⚙️ Core technical specs (expanded)

• ▸ Processor type: 32‑bit, floating point, fast scan (25 ms per rack).
• ▸ Analog outputs: 4 channels, 4‑20 mA, 16‑bit resolution, load ≤600 Ω.
• ▸ Communication: MODBUS (RTU/ASCII/TCP) – baud rate up to 115.2 kbps.
• ▸ Data memory: 8 MB non‑volatile for configuration and events.
• ▸ Power consumption: 9 W typical (15 W max).
• ▸ Temperature range: –20°C … +65°C operating; storage –40°C … +85°C.
• ▸ Humidity: 0 … 95% non‑condensing.
• ▸ Vibration tolerance: 2 g @ 10 … 500 Hz (operational).
• ▸ Compliance: CE, UL, CSA, ATEX (when installed in appropriate rack).

💡 Why this UNMP stands out

• ▶ Universal processor – works with any 3500 monitor (vibration, position, speed, temperature).
• ▶ On‑board 4‑20mA – direct analog link to DCS/PLC without extra I/O.
• ▶ MODBUS ready – easy integration with plant control systems.
• ▶ Fast scan – 25 ms full rack update catches fast transients.
• ▶ 8 MB event log – stores alarms, trip events, trends.
• ▶ Industrial temperature – –20°C to +65°C, suitable for harsh environments.

🔒 Protection & reliability

• ✅ Redundant power input – two independent 24 VDC feeds (optional).
• ✅ Watchdog timer – automatic reset if firmware hangs.
• ✅ Isolated outputs – 4‑20 mA channels isolated from ground loops.
• ✅ Conformal coated (optional) – protects against humidity and dust.
• ✅ EMI/RFI immunity – meets IEC 61000‑6‑2 industrial levels.

📦 Package, shipping & warranty

• 📦 Includes: 1x 129966-03 UNMP module, quick start guide. No rack or cables.
• 🚚 Shipping: FedEx, UPS, DHL – express worldwide. Tracking in 24h.
• ✅ Warranty: 12 months against defects. 30-day return policy.

❓ Professional FAQ – selection & field experience

• Q: Can I put 129966-03 in any 3500 rack slot?
  A: Yes. It occupies one standard slot. Use leftmost slot for optimal communication.
• Q: Which monitors does it support?
  A: All 3500 monitors: vibration (3500/40, /42), position (/45), speed (/50), temperature (/60).
• Q: How many 4‑20 mA outputs are field‑assignable?
  A: Four. Each can map to any monitored channel (vibration, temp, etc.).
• Q: Do I need extra software to configure it?
  A: Yes. Use Bently Nevada 3500 Framework software (v6.0 or later) – not included.
• Q: Is it hot‑swappable?
  A: No. Remove power before swapping. But configuration is stored internally.
