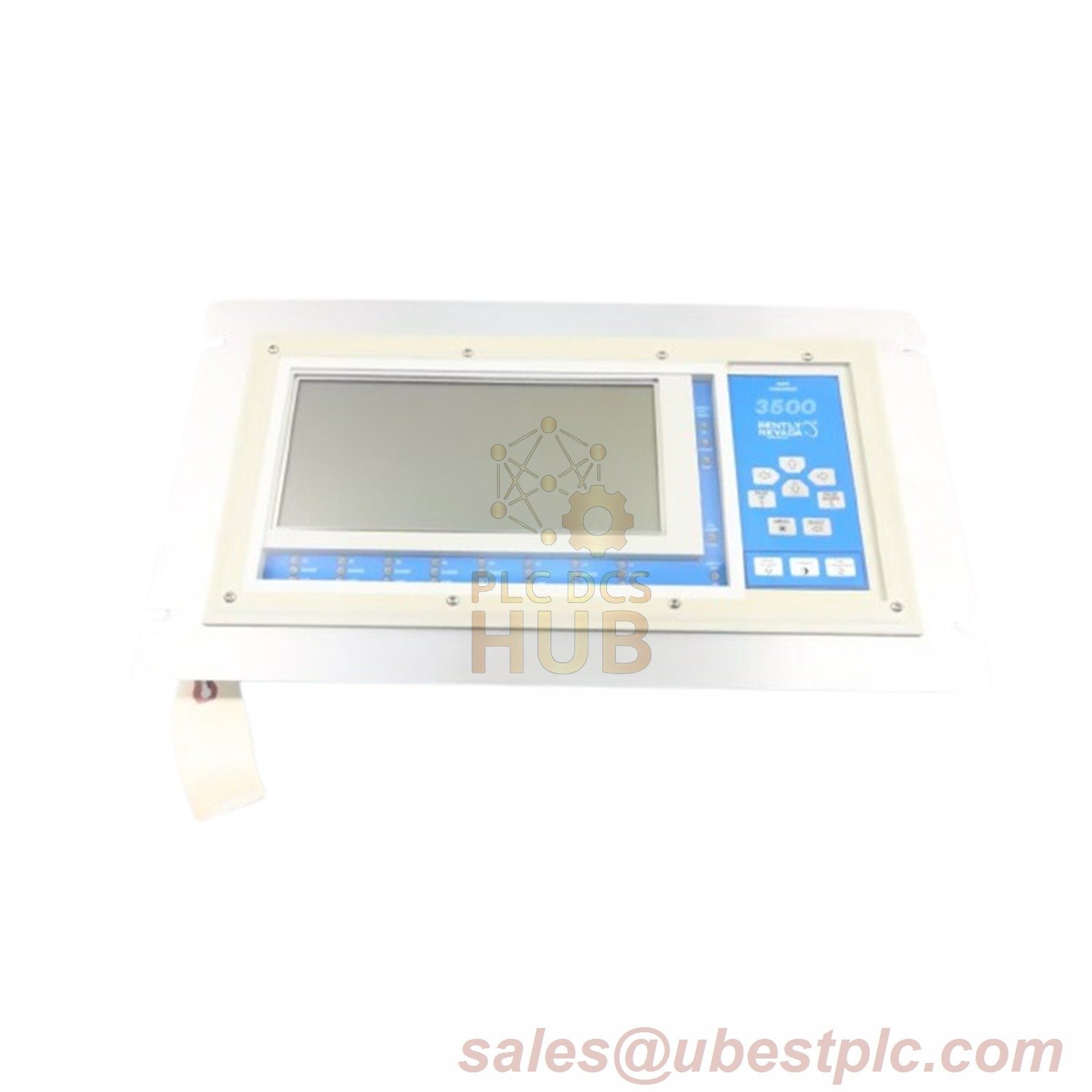

Bently Nevada 3500/93 Display Unit
Model: 135785-02
Description
The Bently Nevada 135785-02 3500/93 Display Unit provides real-time visual monitoring for machinery protection systems, compliant with API Standard 670. It displays system/channel data, alarms, and event logs, supporting both local and remote operations.
Technical Specifications
| Dimensions | 203.2 mm x 412.8 mm x 31.2 mm |
| Weight | 2.1 kg (4.6 lb) |
| Operating Temp | -20°C to 65°C |
| Storage Temp | -30°C to 80°C |
| Humidity | 95% non-condensing |
Display Features
- Status LEDs: Unit OK, Rack OK/Alert/Danger, Channel OK/Alert/Danger (x8), New Alarm.
- LCD Screens:
- Reflective LCD: 640×200 dots (ambient light required).
- Transflective LCD: 640×200 dots (electroluminescent backlight).
Mounting & Power
- Mounting Options: Face, 19-inch EIA Rack, Panel, Independent.
- External Power Supply: Required for backlight or cables >100 ft (115/230 Vac).
Applications
- Oil & Gas Turbines: Real-time monitoring of vibration and speed data.
- Power Plant Compressors: Visual alarm tracking for critical machinery protection.
