Description
Product Description

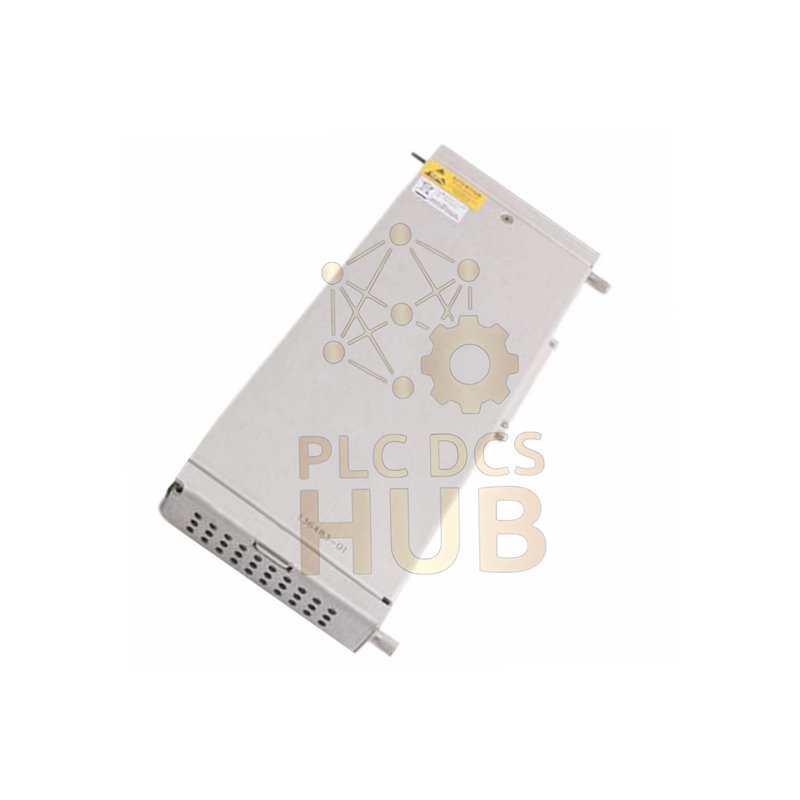

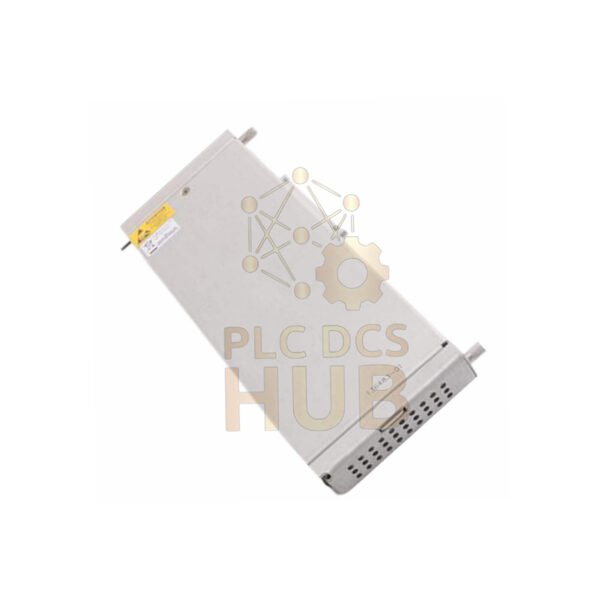

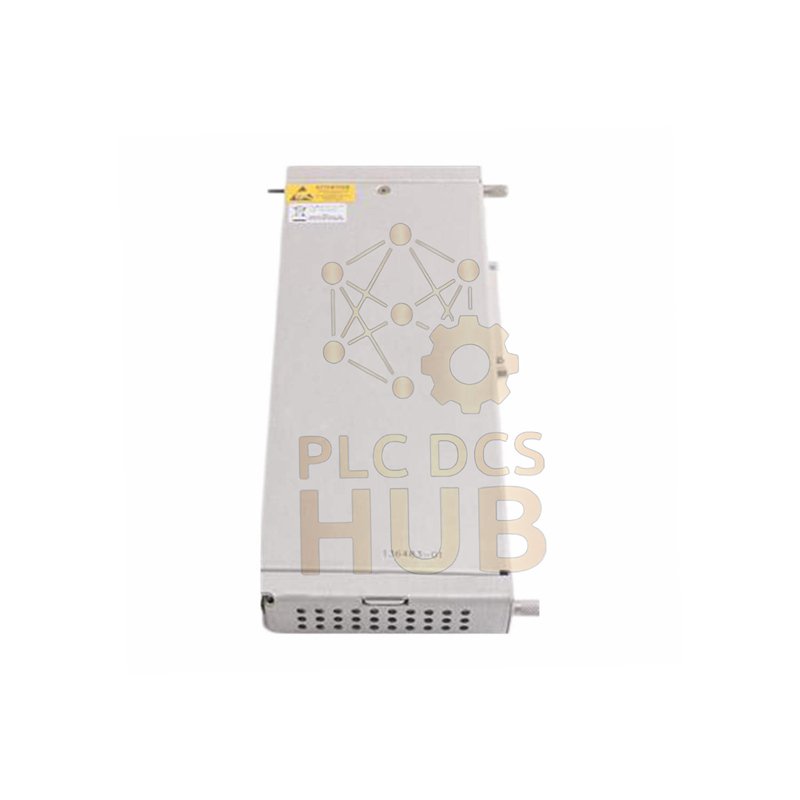

- The Bently Nevada 136483-01 is a high-precision I/O module for machinery protection systems.
- Designed for the Bently Nevada 3500 Series monitoring platform.
- Optimized for stable processing of 4–20 mA and ±10 Vdc signals.
- Provides strong isolation to reduce noise and ground loop risks.
- Ideal for critical industrial automation and asset protection tasks.
Key Technical Data
- Brand: Bently Nevada
- Model: 136483-01
- Series: 3500 Machinery Protection System
- Module Type: Isolated Analog Input / Output
- Power Consumption: Typical 7.0 W
Signal Input Capabilities
- Voltage Input: ±10 Vdc range
- Current Input: 4–20 mA with barrier or isolation
- Minimum Voltage Span: 2 V
- Input Impedance: 1 MΩ for voltage, 50 Ω for current
- Isolation Strength: 500 V between circuits
Output & Signal Conditioning
- Output Type: Proportional current or voltage
- Full-Scale Mapping: Up to 20,000 engineering units
- Accuracy: ±0.33% typical, ±1% maximum
- Linearity: Maintained across full signal span
- Calibration: Not required
Alarm & Diagnostic Functions
- User-Defined Alarms: Alert and Danger levels
- Alarm Range: 0–100% of full scale
- Alarm Accuracy: Within 0.13%
- Time Delays: Adjustable for stable decisions
- Front LEDs: OK, TX/RX, and Bypass status
Environmental & Reliability Performance
- Operating Temperature: -30°C to +65°C
- Storage Temperature: -40°C to +85°C
- Humidity: 95%, non-condensing
- EMI Resistance: High immunity to electrical noise
Mechanical Information
- Dimensions: 241.3 × 24.4 × 99.1 mm
- Weight: 0.20 kg without barrier
- Weight with Barrier: 0.46 kg
Installation Guidelines
- Install directly into a 3500 system rack.
- Ensure correct grounding for best noise immunity.
- Use shielded cables for current loop wiring.
Commissioning & Maintenance
- Configuration via 3500 software only.
- No field calibration required.
- LEDs simplify troubleshooting.
- Hot-swappable with proper rack procedures.
Compatibility
- Fully compatible with Bently Nevada 3500 monitors.
- Supports standard industrial sensors and transmitters.
- Works with barrier and isolated I/O architectures.
Certifications & Compliance
- Designed to meet industrial safety standards.
- Suitable for continuous-duty environments.
Typical Applications
- Machinery protection systems
- Process variable monitoring
- Critical rotating equipment diagnostics
- Oil, gas, power, and heavy industry plants
Package Contents
- 1 × Bently Nevada 136483-01 I/O module
- Protective industrial packaging
- Quality inspection label
Warranty & Logistics
- Warranty: 12 months
- Shipping: FedEx, UPS, DHL available
- Fast global delivery supported
FAQ
- Can this module power external sensors?
- Yes. The barrier version supplies +24 Vdc up to 250 mA.
- Is this module suitable for noisy environments?
- Yes. Isolation and design reduce EMI effects.
- Does it need periodic recalibration?
- No. Factory accuracy is maintained during operation.
- How to choose between barrier and isolated I/O?
- Use isolation when ground loops or noise risks exist.
- Is this part suitable for legacy 3500 systems?
- Yes. It integrates directly with existing 3500 racks.
