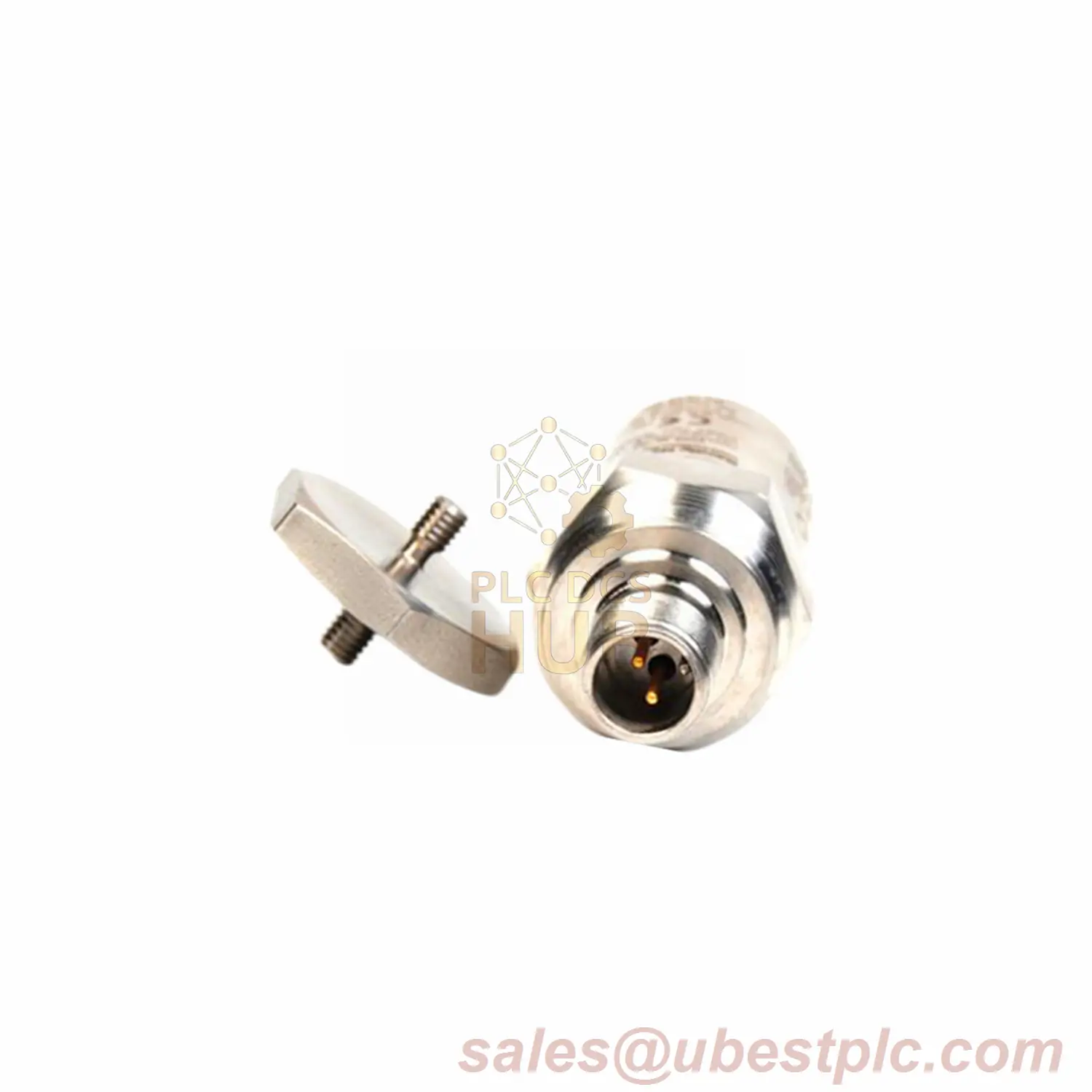

Bently Nevada 190501-08-99-04 Industrial Velocity Sensor
Core Technology
American-made vibration sensor for extreme conditions. Features explosion-proof certification and wide temperature tolerance. Ideal for pumps, fans, and compressors.
Critical Specifications
- Manufacturer: Bently Nevada
- Model: 190501-08-99-04
- Sensitivity: 100 mV/in/s ±5%
- Frequency Range: 1.5 Hz to 1.0 kHz
- Temp Range: -40°F to +185°F
- Hazard Rating: Class I, Zone 0/1
Electrical Performance
- Output Bias: 10.1V DC ±1V
- Resonant Frequency: >9 kHz
- Max Cable: 1,000 ft (305m)
- Linearity: ±2% at 2.5 in/s
Robust Construction
- Material: 316L stainless steel
- Weight: 10.5 oz (297g)
- Mounting: 3/8-in to 1/2-in adapter
- Sealing: 100% humidity resistance
Certifications
- CSA/NRTL/C (Class I Div 1)
- ATEX/IECEx Zone 0/1
- Ex ia IIC T4 Intrinsically Safe
Package Contents
- 1x Velocity Sensor
- 32-ft integrated cable
- Mounting hardware
Global Shipping
FedEx | UPS | DHL – Delivered in 2-5 business days
Installation Guide
- Mount vertically on machine surface
- Torque to 40 in-lbf (4.5 N-m)
- Connect to monitoring system
Technical Questions
Q: Suitable for outdoor use?
A: Yes, withstands -40°F to 185°F and 100% humidity
Q: Cable replacement options?
A: Use shielded triad cable (16-24 AWG)
Q: Warranty coverage?
A: 12 months from delivery date
