Description

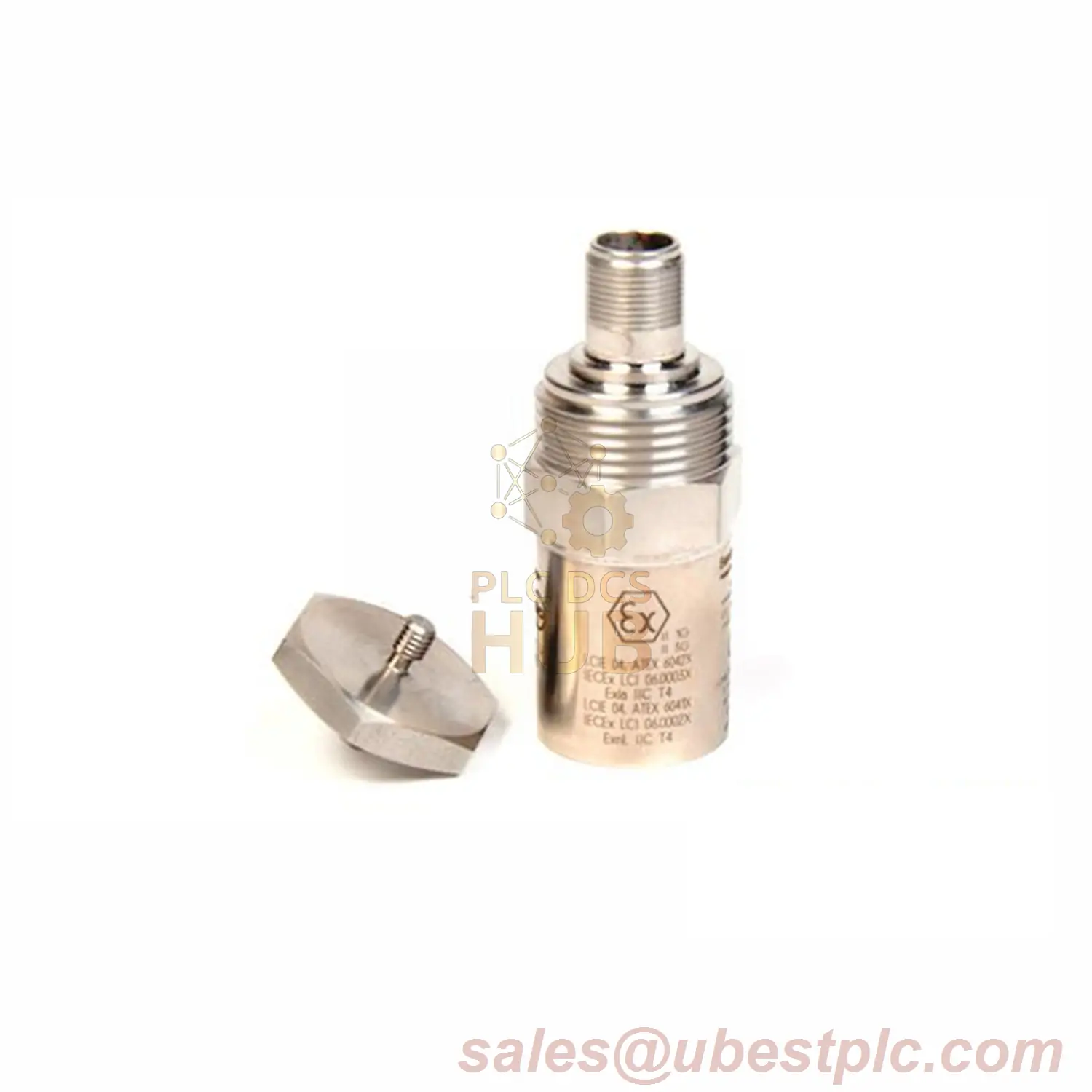

Bently Nevada Velomitor CT – Industrial Vibration Sensing Expert
???? Key Features
- Explosion-proof design for hazardous areas
- Wide frequency range: 1.5Hz to 1kHz
- Works from -40°C to +85°C extreme temps
- 316L stainless steel rugged casing
- MIL-C-5015 military-grade connector
???? Technical Highlights
Basic Info
- Brand: Bently Nevada
- Model: 190501-19-00-04
- Type: Velomitor CT
- Made in: USA
Performance
- Sensitivity: 100 mV/in/s
- Range: 0-2.5 in/s pk
- Accuracy: ±5%
- Resonance: >9 kHz
Durability
- Temp Range: -40°C to +85°C
- Shock Proof: 5000g peak
- Waterproof: 100% humidity
- Weight: 297g
???? Mounting & Setup
- Use 3/8-24 to 1/4-18 NPT adapter
- Apply 40 in-lbf torque
- Connect to MIL-C-5015 interface
- Check 10.1V bias voltage
⚠️ Critical Specs
| Parameter | Value | Importance |
|---|---|---|
| Frequency Response | 1.5Hz-1kHz | Catches slow & fast vibrations |
| Hazard Rating | Class I Div 1 | Safe in explosive areas |
| Cable Length | 305 meters max | Long-distance installations |
???? What You Get
- Velomitor CT transducer
- Mounting adapter
- Installation guide
- 12-month warranty card
James Wilson
Bought this for our manufacturing line’s motor diagnostics. Product was pristine new, and shipping took only 3 days coast-to-coast. Applied it to track abnormal vibrations in conveyor belts—prevented a costly shutdown. The professional support helped optimize placement. Exceptional value for fast-paced industries!
