Description

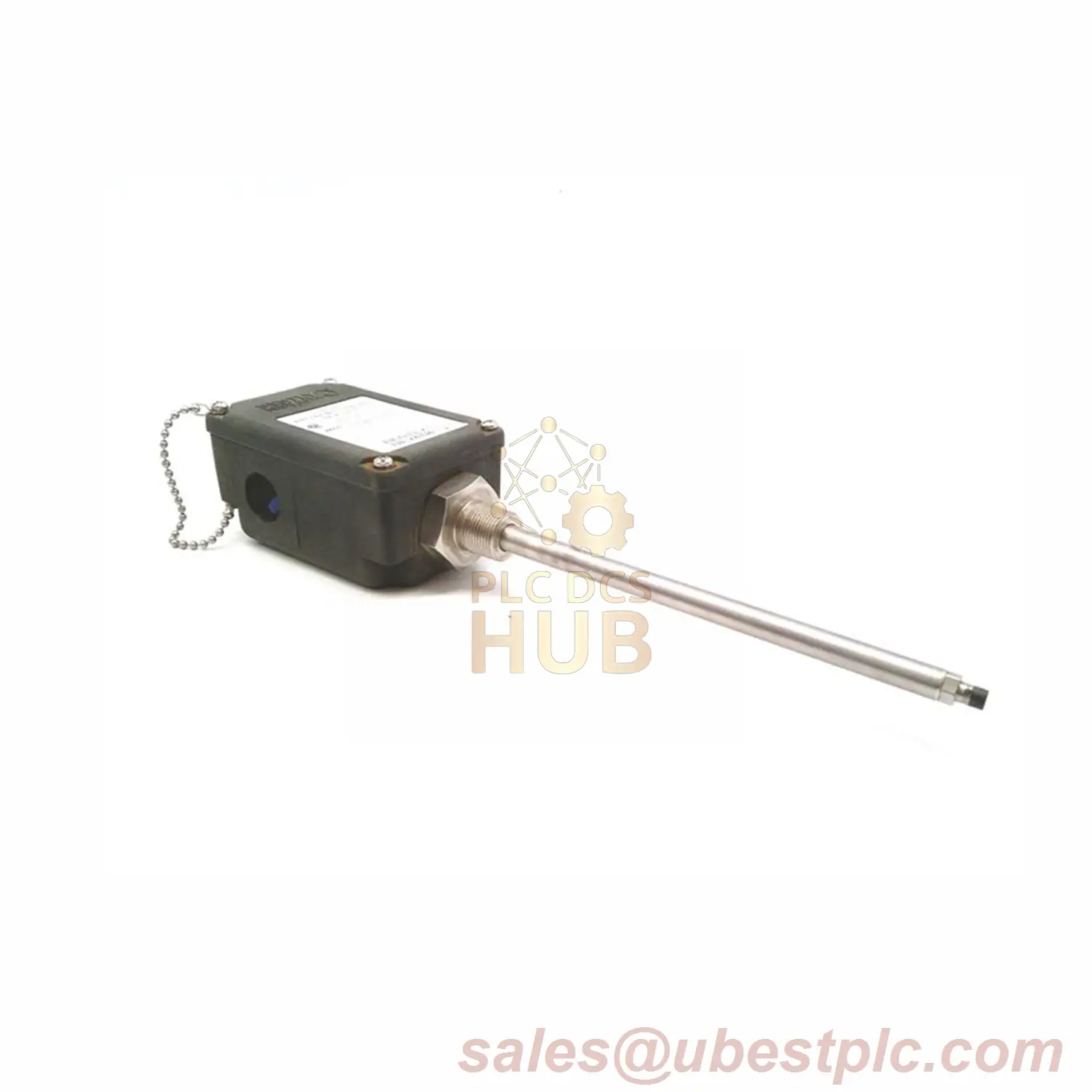

Bently Nevada 31000 Probe Housing Assembly
Technical Specifications
- Part Number: 31000-28-05-00-025-01-02
- Probe Type: 3300 XL 8mm (multi-approval)
- Cable Length: 0.5 metre (20 inches)
- Probe Penetration: 2.5 inches (63.5 mm)
- Mounting Thread: 3/4-14 NPT
- Housing Material: Conductive PPS thermoplastic
- Seals: Neoprene O-rings
Performance Metrics
- Impact Resistance: 7 Joules (5.2 ft·lb) at room temperature
- Load Capacity: 912 N (205 lb) at 38mm leverage
- Torque Specification: 29.4 N·m (260 in·lb) for retaining nut
- Temperature Range: -51°C to +105°C (-60°F to +221°F)
- Weight: 1.2 kg (2.6 lb)
Material Composition
- Housing: Glass-reinforced PPS with conductive fibers
- Internal Sleeve: AISI 304 stainless steel
- External Hardware: AISI 303 stainless steel
- Seals: Neoprene O-rings
Certifications
- CSA Type 4X
- IP66 (per SC115582-1)
- EN50014 electrostatic protection
- BASEEFA impact certified
Installation Requirements
- Use 3/4-14 NPT threaded mounts
- Apply 260 in·lb torque to retaining nut
- Maintain probe gap per 3300 XL specifications
- Ground housing properly in hazardous areas
Shipping Details
FedEx, UPS, and DHL express shipping available worldwide. Tracking provided.
Frequently Asked Questions
Q: Is the probe included?
A: Yes – includes 3300 XL 8mm probe (option 28)
Q: What certifications does it have?
A: CSA Type 4X, IP66, and BASEEFA impact certified
Q: Can it handle corrosive environments?
A: Yes – PPS housing and stainless steel resist chemicals
Q: What’s the maximum load capacity?
A: Supports 205 lb (912 N) at 1.5 inches from mounting point
Q: Is this suitable for outdoor use?
A: Yes – rated for -51°C to +105°C with IP66 weather protection
