Description
Bently Nevada 200151-20-02-00 Accelerometer Cable
Product Overview

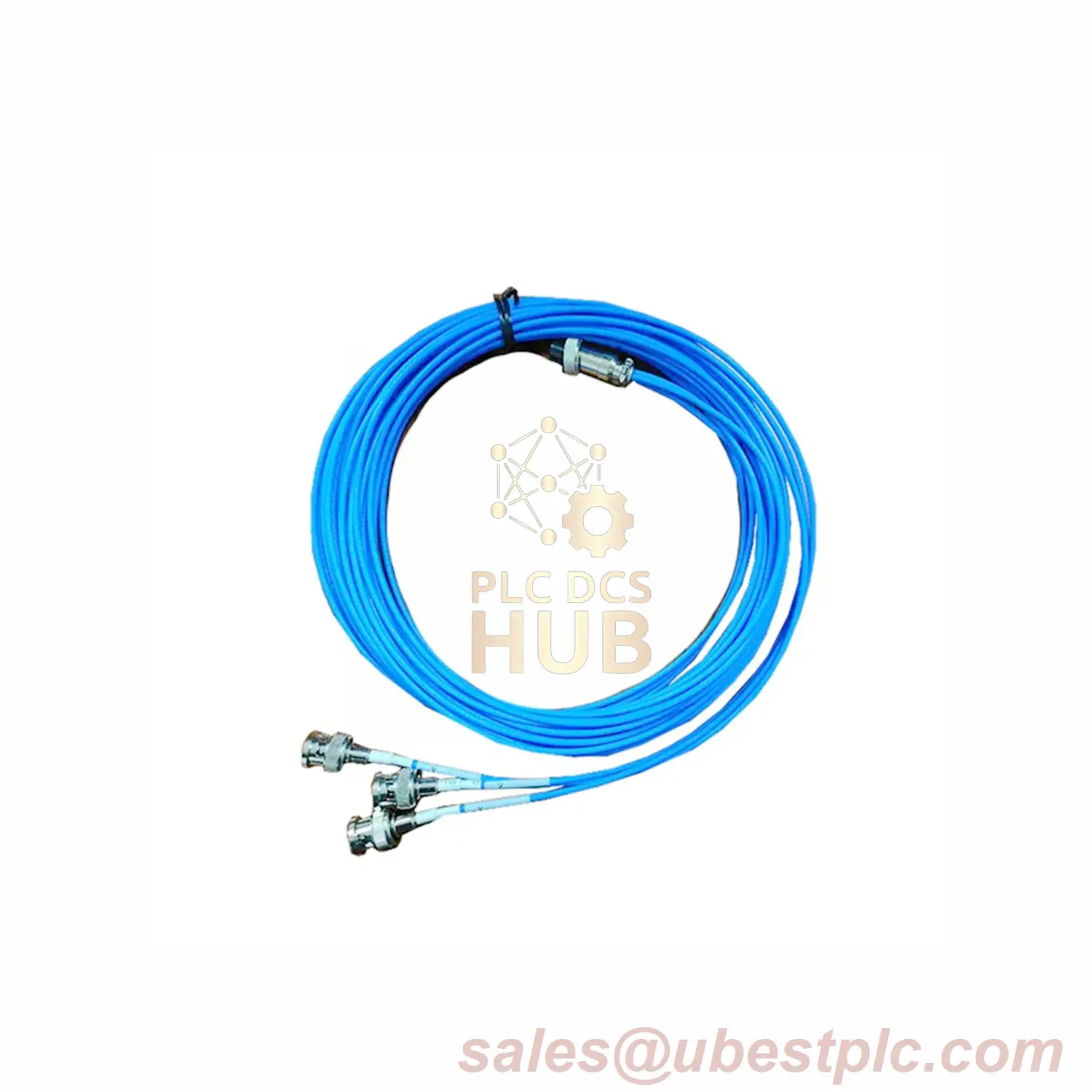

Industrial-grade 2-meter accelerometer cable with IP67-rated connectors and nickel-plated coupling nuts. Features blue PVC jacket without armor for flexible installation in vibration monitoring systems.
Model Configuration
| Suffix | Feature | Specification |
|---|---|---|
| -20- | Length | 2.0 meters |
| -02- | Cable Type | Blue standard cable without armor |
| -00 | Coupling Nut | Standard version |
Technical Specifications
Electrical Properties
- Conductors: 4x 22 AWG
- Shielding: Braided (85% coverage)
- Drain wire included
Mechanical Properties
- Min bend radius: 63.5mm (2.5″)
- Coupling nuts: Nickel-plated
- Jacket color: Blue PVC
Environmental Ratings
- Operating temp: -20°C to +100°C
- Seal temp range: -55°C to +121°C
- Seal cure time: 24 hours
Key Features
- IP67 protection against dust and water immersion
- Molded connectors with DC4 insulating compound
- Thermal shock resistant construction
- Braided shield for EMI/RFI protection
Installation Guidelines
- Maintain minimum 63.5mm bend radius
- Avoid flexing below -20°C (-4°F)
- Allow 24-hour cure time for seals
- Use in dry environments or with moisture protection
Package Contents
- 2-meter blue accelerometer cable
- Documentation sheet
- Standard coupling nuts
Warranty & Shipping
12-month manufacturer warranty • Ships worldwide via FedEx/UPS/DHL • Tracking provided
Technical FAQ
Q: What’s the temperature limit for flexing?
A: Do not flex below -20°C (-4°F) to prevent damage
Q: Does this include moisture protection?
A: Yes, DC4 compound provides moisture resistance after 24-hour cure
Q: What’s the difference between -02 and -03 models?
A: -02 is standard cable, -03 would be armored version
Q: Can I use this in wet environments?
A: IP67 rating protects against temporary immersion
