Bently Nevada 2300/20-00 Vibration Monitor | 2300 Series Condition Monitoring

Description

Product Overview

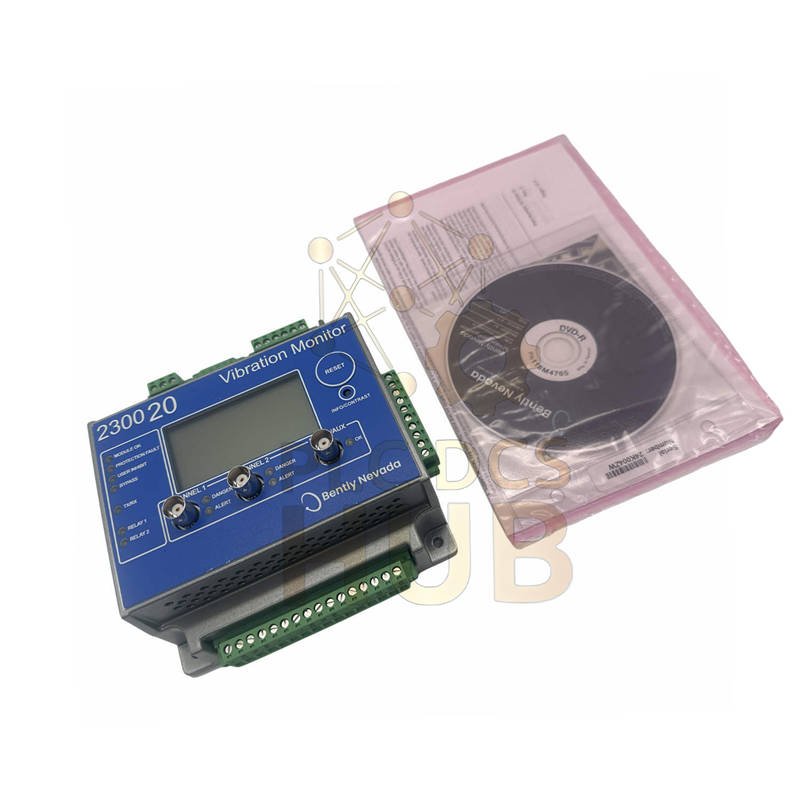

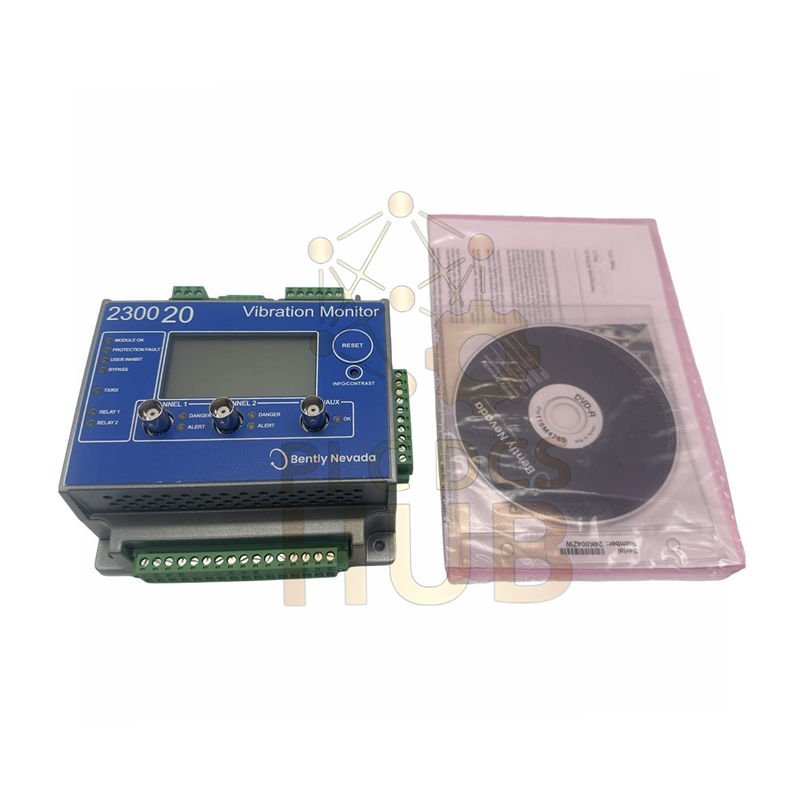

• Bently Nevada 2300/20-00 is a compact vibration monitor.
• It belongs to the trusted 2300 Series.
• The unit supports critical rotating equipment.
• It delivers fast alarms and clear diagnostics.
• Designed for continuous industrial duty.

Main Selling Points

• Supports vibration, speed, and thrust inputs.
• High accuracy improves fault detection.
• Ethernet enables remote monitoring.
• Buffered and 4-20mA outputs simplify integration.
• Compact size saves panel space.

Electrical Specifications

• Brand: Bently Nevada
• Model: 2300/20-00
• Product Type: Vibration Monitor
• Power Supply: 18 to 36 Vdc
• Power Consumption: Maximum 7.5 W
• Independent ADC: 24-bit per channel
• Country of Origin: U.S.A

Vibration Measurement Performance

• Frequency Range: 0.2 Hz to 20 kHz
• Acceleration Range: 2 to 80 g peak
• Velocity Range: 0 to 50 in/s peak
• Radial Vibration: Up to 160 mil peak-peak
• Scale Factor: 5 to 1000 mV per unit
• Accuracy: ±1 percent of full scale

Speed and Position Monitoring

• Supports Keyphasor and speed sensors.
• Speed range up to 120,000 RPM.
• Handles multiple events per revolution.
• Threshold resolution of 0.1 Vdc.

Output Capabilities

• Three buffered BNC outputs.
• Two vibration outputs.
• One dedicated speed output.
• Two internal powered 4-20mA outputs.
• Update rate of 100 milliseconds.

Relay and Alarm Functions

• Two dry-contact relays.
• SPDT relay configuration.
• Supports alert and danger levels.
• Latched alarm reset supported.

Display and User Interface

• Built-in LCD display.
• Shows speed and vibration values.
• Displays alarm status clearly.
• Local buttons simplify operation.

Communication

• Ethernet 10Base-T and 100Base-TX.
• Standard RJ-45 connector.
• Supports remote configuration software.
• Stores alarm data during network loss.

Environmental Ratings

• Operating Temperature: -30°C to +65°C
• Storage Temperature: -40°C to +85°C
• Humidity: Up to 95 percent non-condensing
• Vibration Limit: 3 g

Physical Details

• Dimensions: 127 x 127 x 76.2 mm
• Weight: 1.03 kg
• Mounting: Panel or DIN rail

Applications

• Steam and gas turbines.
• Compressors and pumps.
• Fans and motors.
• Balance of plant equipment.

Warranty and Delivery

• Warranty: 12 months.
• Fast global shipping available.
• Courier options include FedEx.
• UPS and DHL supported.

FAQ

• Can this monitor replace older vibration systems?
• Yes. It fits many retrofit projects.
• Is the Ethernet needed for daily operation?
• No. The monitor works standalone.
• How often should configuration be checked?
• Engineers usually review settings yearly.
• Does high RPM affect accuracy?
• No. The speed channel remains stable.
• What improves long-term reliability?
• Clean wiring and stable power supply.

Buying Guide

• Confirm sensor types before ordering.
• Select output type for your control system.
• Plan Ethernet access if remote data is needed.
• Order spare relays for critical assets.
