Bently Nevada 2300 Series 2300/20-KIT-003 | Industrial Vibration Monitoring Kit

Description

Product Description

Bently Nevada 2300/20-KIT-003-00-00 is a compact vibration monitoring kit.

It delivers clear machine condition data through stable 4–20 mA outputs.

The kit supports predictive maintenance with fast setup and reliable performance.

It suits pumps, motors, fans, and general rotating equipment.

Key Advantages

• Real-time vibration monitoring for early fault detection.
• Simple signal output for PLC and DCS systems.
• Wide frequency range for low and high speed machines.
• Rugged design for harsh industrial environments.

Technical Specifications

• Brand: Bently Nevada
• Model: 2300/20-KIT-003-00-00
• Series: 2300 Vibration Monitor
• Input Type: ICP accelerometers
• Output Signal: 4–20 mA
• Power Supply: 18–36 Vdc
• Power Consumption: Max 7.5 W
• Frequency Response: 0.2 Hz to 20 kHz
• Sensitivity Range: 5 to 1000 mV/g
• Velocity Scaling: 5 to 1000 mV/in/s
• Radial Scaling: 5 to 1000 mV/mil
• Acceleration Range: 2 to 80 g peak
• Velocity Range: 0 to 50 in/s peak
• Radial Range: 0 to 160 mil peak-peak
• Open Circuit Voltage: -21 to -24 Vdc
• Current Source: 3.3 mA ±5%
• Dimensions: 127 × 127 × 76.2 mm
• Weight: 1.03 kg
• Operating Temperature: -30°C to +65°C
• Protection Class: IP20

Measurement Performance

• High linearity ensures stable signal output.
• Good resolution for small vibration changes.
• Strong noise immunity in industrial cabinets.
• Stable readings under temperature variation.

Installation Guide

• Mount the monitor inside a control cabinet.
• Connect accelerometers using supplied cables.
• Provide a stable 24 Vdc power source.
• Wire 4–20 mA outputs to control systems.

Commissioning and Maintenance

• Quick startup with minimal configuration.
• No complex software required.
• LED indicators support fast diagnostics.
• Low maintenance during long-term operation.

Compatibility

• Works with standard ICP accelerometers.
• Compatible with PLC, DCS, and SCADA systems.
• Integrates easily with condition monitoring platforms.

Certifications

• CE compliant
• UL / CSA approved

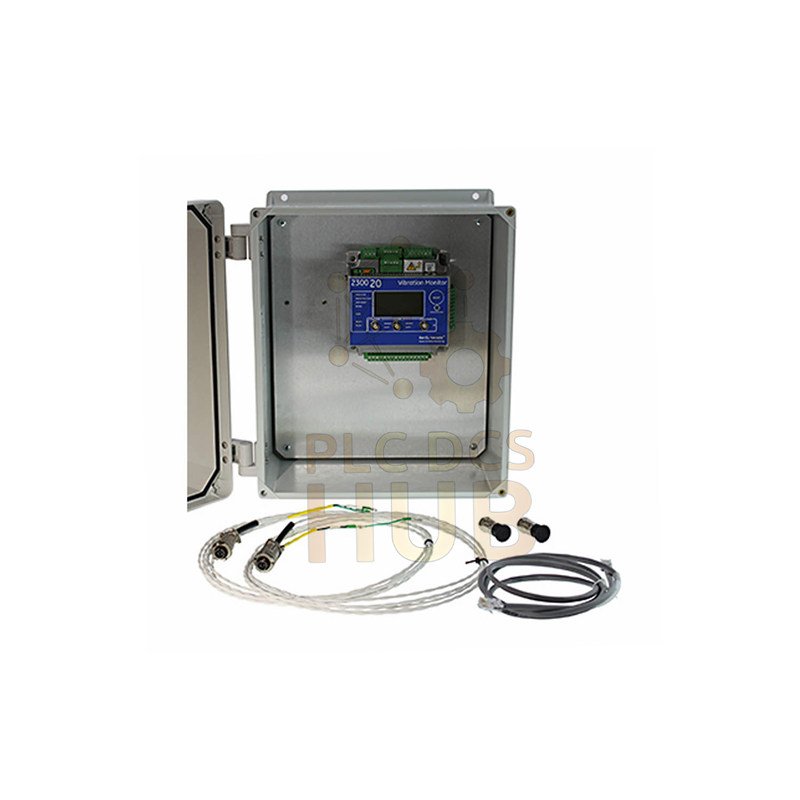

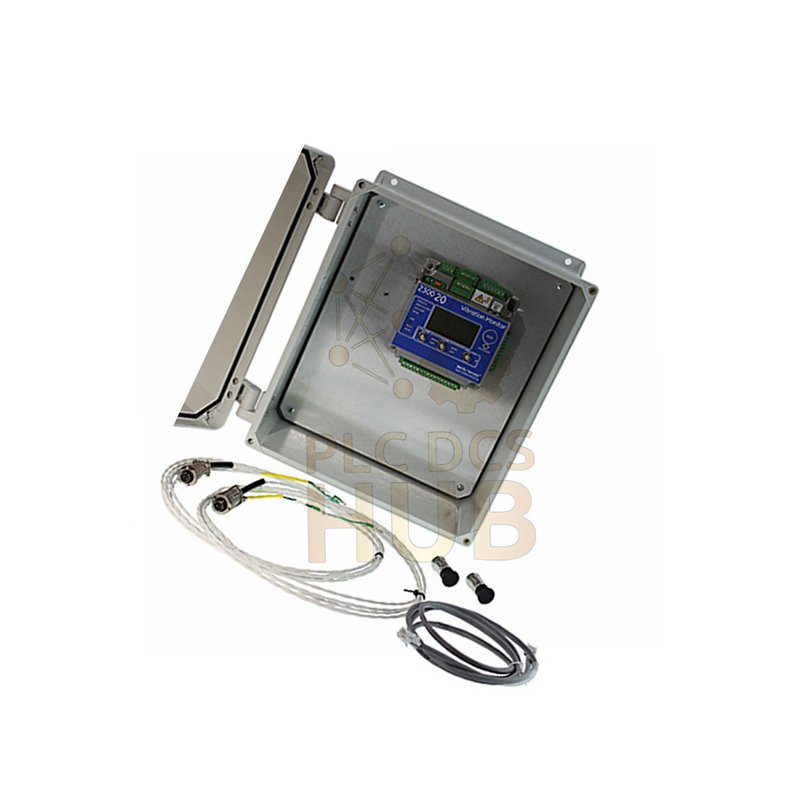

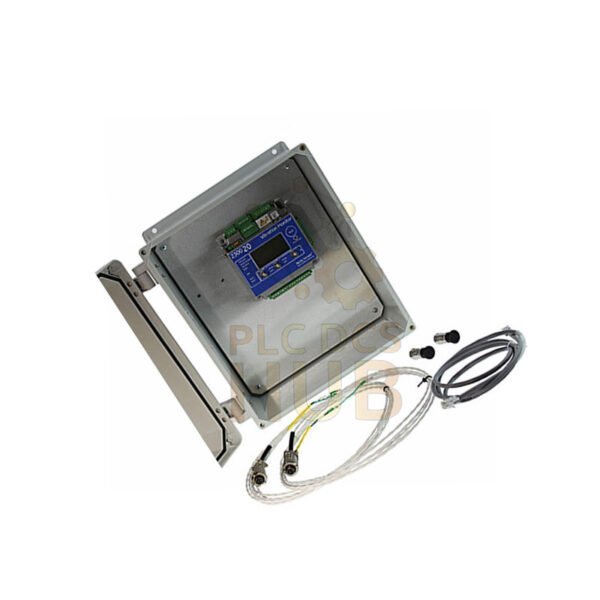

Packing List

• 1 × 2300/20 Vibration Monitor
• 2 × Accelerometers AM3100T2-Z2
• 2 × Sensor cables, 12 ft (9571)
• 1 × Shielded Ethernet cable, 6 ft
• Keyphasor sensor not included
• 24 Vdc power supply not included

Typical Applications

• Motors and pumps
• Fans and blowers
• Gearboxes
• General rotating machinery

Diagnostic Capabilities

• Detects imbalance and misalignment.
• Identifies bearing wear trends.
• Supports condition-based maintenance.

Warranty and Delivery

• Warranty: 12 months
• Shipping methods: FedEx, UPS, DHL
• Professional export packaging provided.

FAQ

• Is this kit suitable for new installations?
• Yes. It works well for new and retrofit projects.
• Can it replace older vibration transmitters?
• Yes. It offers better frequency range and stability.
• Does it need special software?
• No. It uses simple analog outputs.
• How to choose the right sensor?
• Select based on speed, mounting, and vibration level.
• Is it suitable for harsh environments?
• Yes. It performs well in industrial conditions.
