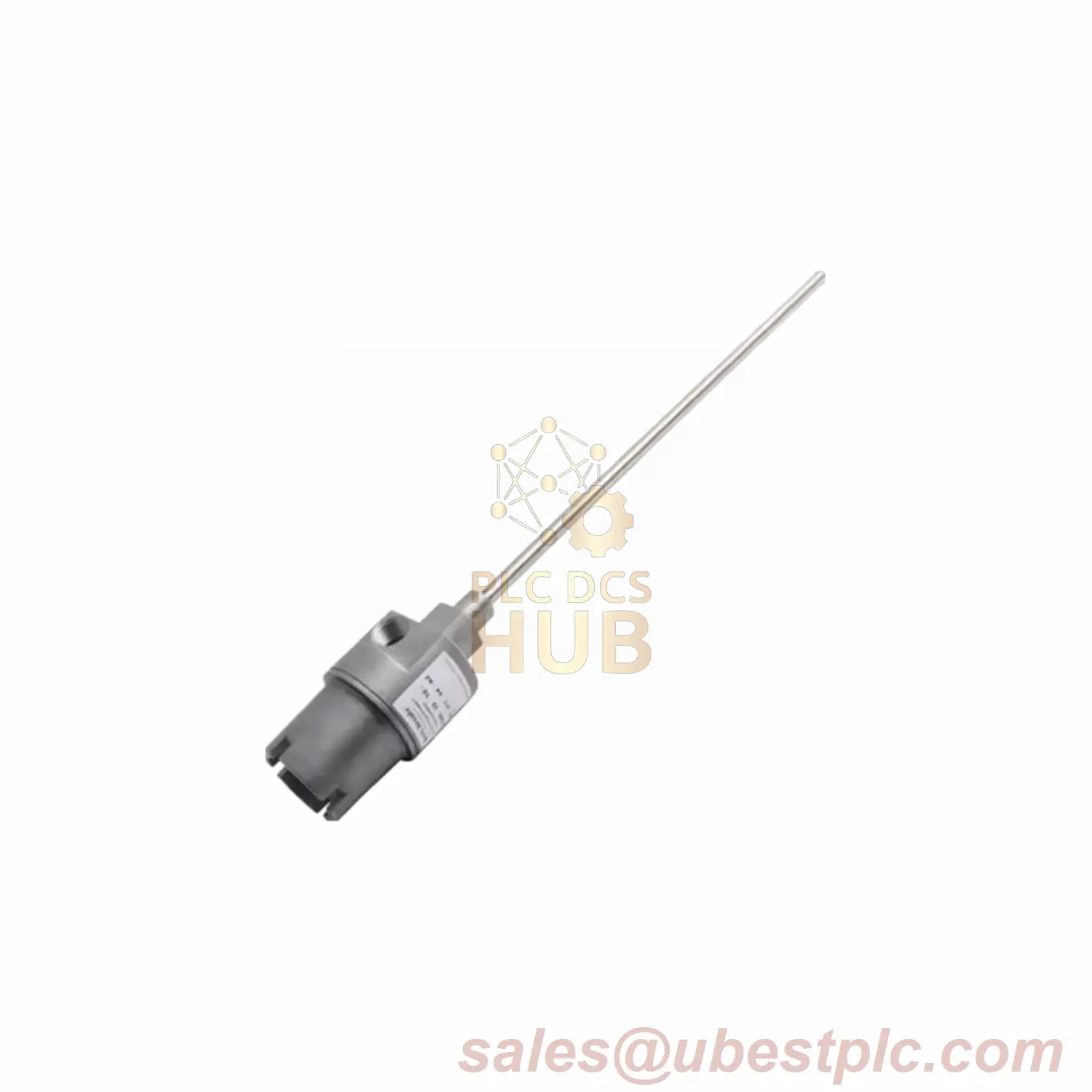

Bently Nevada 24701-28-05-20-024-03-02 | Housing Assemblies

Description

Bently Nevada 24701-28-05-20-024-03-02: Precision Short-Depth Monitoring Solution

Ultra-Compact Design

2.4″ shallow probe with 2″ standoff and 0.5m armored cable. Perfect for space-constrained installations requiring ATEX/IECEx approvals.

Decoding the Model

• 24701-28-05-20-024-03-02
  • 28: 8mm probe with explosion-proof certification
  • 05: Compact 0.5m cable
  • 20: 2.0″ extension standoff
  • 024: Minimal 2.4″ penetration
  • 03: One 3/4-14 NPT plug
    One 3/4-14 to 1/2-14 NPT reducer
    One cable seal grip with grommets for the following
    cable sizes:
    • 1/8 to 3/16 inches
    • 1/4 to 5/16 inches
    • 5/16 to 3/8 inches
  • 02: Industrial 3/4-14 NPT threads

Advanced Performance Data

• Explosion Proof: ATEX II 2G Ex ia IIC T4
• Surface Tolerance: 0.05mm roughness max
• EMI Resistance: 100V/m @ 1GHz
• Shock Survival: 100g @ 6ms

Critical Installation Notes

• Grounding strap required in explosive areas
• Max 25Nm torque on standoff
• Annual intrinsic safety checks mandatory

Technical FAQs

Q: Cleanroom compatible?
A> Yes – non-outgassing materials

Q: Replace probe separately?
A> Certified assembly only
