Description
Product Overview

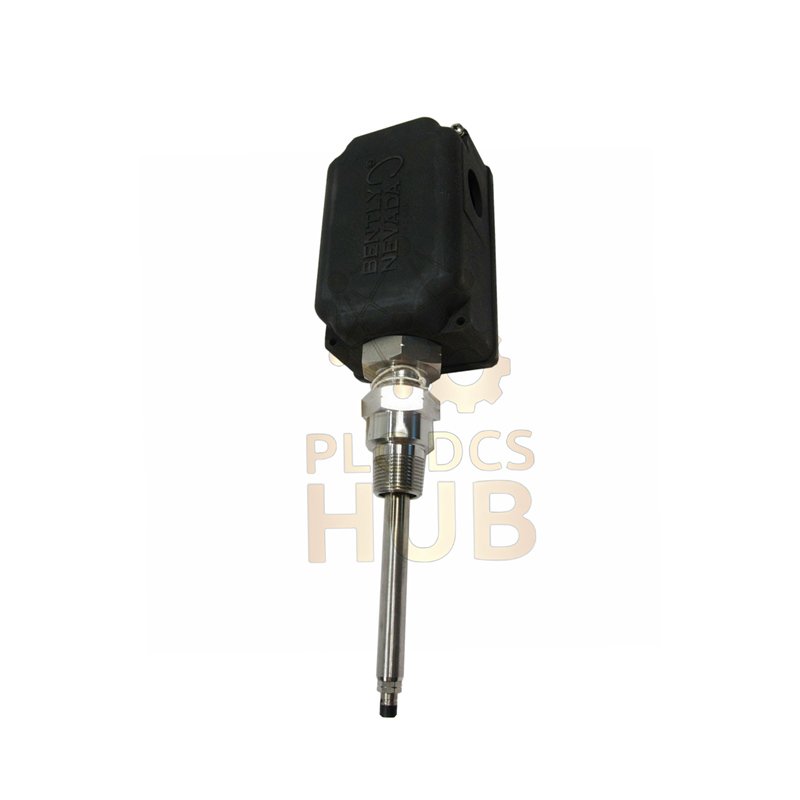

Introduce the robust Bently Nevada 31000-28-10-00-133-03-02. This is a premium 31000 Proximity Probe Housing Assemblies, manufactured in the USA. It features a durable plastic body for corrosive environments and includes a 3300 XL 8mm probe. Ideal for hazardous area monitoring with long 13.3-inch reach. For expert advice, contact us: +86 158 8020 0923.
Complete Kit Configuration
- Manufacturer & Type: Bently Nevada 31000 Proximity Probe Housing Assemblies
- Your Full Assembly Part: 31000-28-10-00-133-03-02
Configuration Breakdown:
- 31000 – Base Model: Proximity Probe Housing
- -28 – Probe: 3300 XL 8 mm with Multiple Approvals
- -10 – Cable: 1.0 m (39 in) Length
- -00 – Adapter: No Standoff Adapter
- -133 – Reach: Probe Penetration 13.3 in
- -03 – Fittings: Plugs, Reducer, Cable Seal Grip
- -02 – Mount: 3/4-14 NPT Thread
Technical Specifications
- Construction & Durability
- Housing Body: Conductive PPS Thermoplastic (Corrosion Resistant)
- Internal Sleeve & Chain: AISI 304 Stainless Steel
- External Screws: AISI 303 Stainless Steel
- Seals: Neoprene O-rings
- Weight: 1.2 kg (2.6 lb)
- Environmental Protection
- Enclosure Rating: CSA Type 4X, IP66 (Dust, Water, Hose-down)
- Temperature Range: -51°C to +105°C
- Hazardous Area Certified: CENELEC EN50014
- Impact Strength: Certified for 4J impacts at extreme temperatures
- Mechanical Strength
- Retaining Nut Torque: 29.4 N·m (260 in-lb) recommended
- Load Capacity: Supports over 200 lbs force on extended housing
- Included Components
- One (1) 3300 XL 8mm Probe (1.0m cable, multiple approvals)
- Housing with Dome Cover
- Two (2) Plugs, One (1) 3/4-14 NPT Fitting
- One (1) 3/4-14 to 1/2-14 NPT Reducer (Stainless Steel)
- Cable Seal Grip with Grommets (3 sizes)
Frequently Asked Questions
Material & Environment
- Why is the housing made of plastic (PPS) instead of metal?
Glass-reinforced PPS plastic offers excellent corrosion resistance. It is ideal for chemical plants or offshore platforms where metal housings can rust.
- What does “IP66” and “Type 4X” mean for my installation?
IP66 means it is totally protected from dust and powerful water jets. Type 4X adds corrosion resistance. It is safe for outdoor washdown areas.
Installation & Use
- The probe penetration is 13.3 inches. Is this adjustable?
No, the 13.3-inch reach is fixed by the sleeve length in this kit (-133). You must select a kit with the penetration that matches your measurement point.
- Can I use this housing with a different probe model?
This specific kit (-28) is pre-configured for a 3300 XL 8mm probe. The internal sleeve is sized for this probe only.
Ordering & Support
- What is the lead time and warranty for this assembly?
The assembly is in stock. It comes with a 12-month factory warranty. We ship worldwide via FedEx, UPS, and DHL for fast, trackable delivery.
Ordering Instructions
You are ordering the complete kit 31000-28-10-00-133-03-02. Verify the long 13.3-inch reach and plastic housing suit your application. This is a top-tier solution for tough, wet, or corrosive environments. We guarantee genuine Bently Nevada products.
