Description
Product Overview

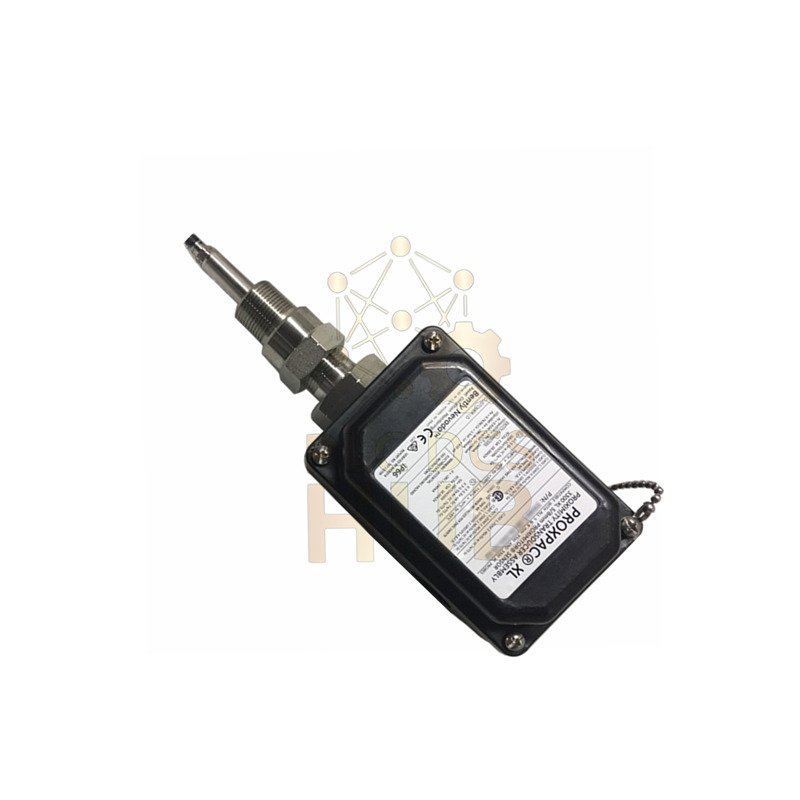

Genuine Bently Nevada 31000 Proximity Probe Housing Assembly. Made in USA. This is a rugged, non-metallic housing for hazardous areas. It is new and ready for installation.
Key Features
- Non-Metallic & Corrosion-Resistant: Made from conductive PPS thermoplastic.
- Extreme Durability: Certified impact resistance at high and low temperatures.
- Superior Environmental Protection: Rated NEMA 4X and IP66 for dust and water.
- Complete Kit: Includes housing, probe, and all necessary fittings.
Complete Product Specifications
- Brand & Model: Bently Nevada 31000-28-10-00-010-01-02
- Part Number Breakdown:
- 31000: Base Housing Model
- 28: Probe = 3300 XL 8 mm, multiple approvals
- 10: Cable Length = 1.0 meter
- 00: Standoff Adapter = None
- 010: Probe Penetration = 1.0 inch
- 01: Fittings = One 3/4-14 NPT fitting, two plugs
- 02: Mounting Thread = 3/4-14 NPT
- Construction & Materials:
- Housing: Conductive Glass-Reinforced PPS
- Sleeve & Chain: AISI 304 Stainless Steel
- Exterior Screws: AISI 303 Stainless Steel
- O-Rings: Neoprene & Viton
- Environmental Ratings:
- Temperature Range: -51°C to +105°C
- Enclosure Ratings: NEMA 4X, IP66, CSA Type 4X
- Impact Strength: Certified for 4J impacts at -39°C and +115°C
- Hazardous Area: CENELEC EN50014 compliant
- Physical Data:
- Weight: 1.2 kg (2.6 lb) typical
- Retaining Nut Torque: 29.4 N·m (260 in·lb) recommended
- Load Capacity: Supports 912 N (205 lb) at 38 mm from end
Included Components
The 31000-28-10-00-010-01-02 assembly is a full kit:
- One conductive PPS housing with cover
- One reverse-mounted 3300 XL 8 mm probe (1.0m cable)
- Stainless steel sleeve and retaining chain
- Neoprene and Viton O-rings
- One 3/4-14 NPT fitting and two plugs
Ideal Applications
- Corrosive environments (chemical plants, offshore platforms).
- Areas requiring non-metallic, non-sparking housings.
- Outdoor or washdown locations with water and dust exposure.
- Hazardous area monitoring with intrinsic safety systems.
Order & Support Details
- Condition: New Original in factory packing.
- Warranty: Full 12-month manufacturer warranty.
- Shipping: Fast global delivery via FedEx, UPS, or DHL.
- Support: Contact us on WhatsApp: +86 158 8020 0923.
Frequently Asked Questions (FAQ)
Product Design & Use
Why choose a plastic housing over metal?
This PPS housing resists corrosion. It is perfect for salty or chemical atmospheres where metal would rust.
What does “conductive” plastic mean?
The plastic has special fibers. These prevent static electricity buildup. This is critical for safe use in hazardous areas.
Certifications & Durability
Can this housing handle physical impacts?
Yes. It is certified by BASEEFA to survive strong impacts, even at very high and very low temperatures.
Is the housing waterproof?
Yes. It has an IP66 rating. This means it is totally protected against dust and powerful water jets.
Purchasing Guidance
What is the main benefit of the 31000 housing?
It offers metal-level strength with plastic-level corrosion resistance. It is a unique solution for tough environments.
