Bently Nevada 3300/55-01-04-02-02-01-00-06-00 Velocity Monitor | Vibration Module

Description

Product Description

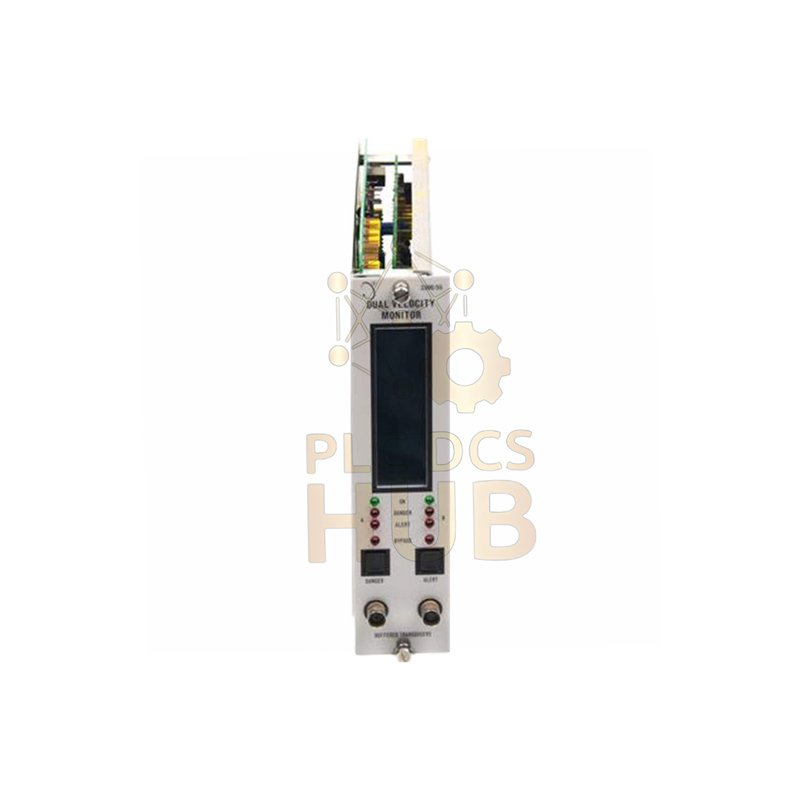

• Bently Nevada 3300/55-01-04-02-02-01-00-06-00 is a dual-channel velocity monitoring module.
• It provides continuous vibration protection for critical rotating equipment.
• The module supports precise velocity measurement with stable analog outputs.
• It suits industrial environments with high temperature and electrical noise.
• Core value: reliable vibration insight for early fault detection.

Technical Specifications

• Brand: Bently Nevada
• Series: 3300 Series
• Model: 3300/55-01-04-02-02-01-00-06-00
• Module Type: Velocity Monitor
• Channels: 2 independent inputs
• Measurement Range: 0.1 to 50 in/s velocity
• Metric Range: 0.25 to 1270 mm/s
• Frequency Response: 1 Hz to 1000 Hz standard
• Output Signal: 4–20 mA per channel
• Supply Voltage: 24 VDC nominal
• Operating Voltage: 20 to 30 VDC
• Weight: 0.54 kg

Measurement Performance

• Sensitivity: Optimized for velocity-based vibration sensing.
• Linearity: Maintains stable output across full measurement span.
• Resolution: Detects low-level vibration changes clearly.
• Noise Immunity: Designed for high EMI resistance.
• Result: consistent and repeatable vibration data.

Environmental & Reliability Ratings

• Operating Temperature: -40°C to +85°C
• Humidity: 0 to 95%, non-condensing
• Industrial Tolerance: Suitable for harsh plant conditions.
• Long-Term Stability: Built for continuous operation.

Sensor Compatibility

• Velomitor velocity transducers
• High Temperature Velomitor Systems (HTVS)
• Velocity Seismoprobe transducers
• Supports existing Bently Nevada sensor ecosystems.

Installation Guidelines

• Mounting: Panel-mounted installation.
• Ensure stable DC power before wiring.
• Use shielded cables for best signal quality.
• Allow airflow for thermal stability.

Commissioning & Maintenance

• Simple loop check using 4–20 mA output.
• Minimal calibration required after installation.
• Front-access design simplifies inspection.
• Reduces maintenance downtime significantly.

System Integration & Communication

• Analog outputs integrate with DCS and PLC systems.
• Optional Ethernet/IP or Modbus available.
• Supports scalable machinery protection architectures.

Typical Applications

• Steam and gas turbines
• Compressors and pumps
• Fans and motors
• Balance-of-plant rotating machinery

Diagnostic Capabilities

• Early detection of imbalance and misalignment.
• Trend-based condition monitoring.
• Supports preventive maintenance strategies.

Certifications & Compliance

• Manufactured under strict industrial quality systems.
• Complies with relevant industrial monitoring standards.

Packing List

• 1 × 3300/55 Velocity Monitor Module
• Protective industrial packaging
• Identification label

Warranty & Logistics

• Warranty: 12 months.
• Shipping: FedEx, UPS, DHL available.
• Global delivery with secure handling.

FAQ

• What signal does this module output?
• It outputs a stable 4–20 mA signal per channel.
• Can it work in high-temperature areas?
• Yes, it supports operation up to +85°C.
• Is it suitable for retrofit projects?
• Yes, it integrates easily with existing control systems.
• How do I choose the right velocity range?
• Select based on machine speed and expected vibration levels.
• What is a common field tip?
• Always verify grounding to reduce noise interference.

Selection Guidance

• Choose velocity monitoring for low-frequency machinery faults.
• Confirm sensor compatibility before ordering.
• Ensure power supply stability for best accuracy.
