Bently Nevada 3300 NSv Probe 330904-00-15-05-11-00

Description

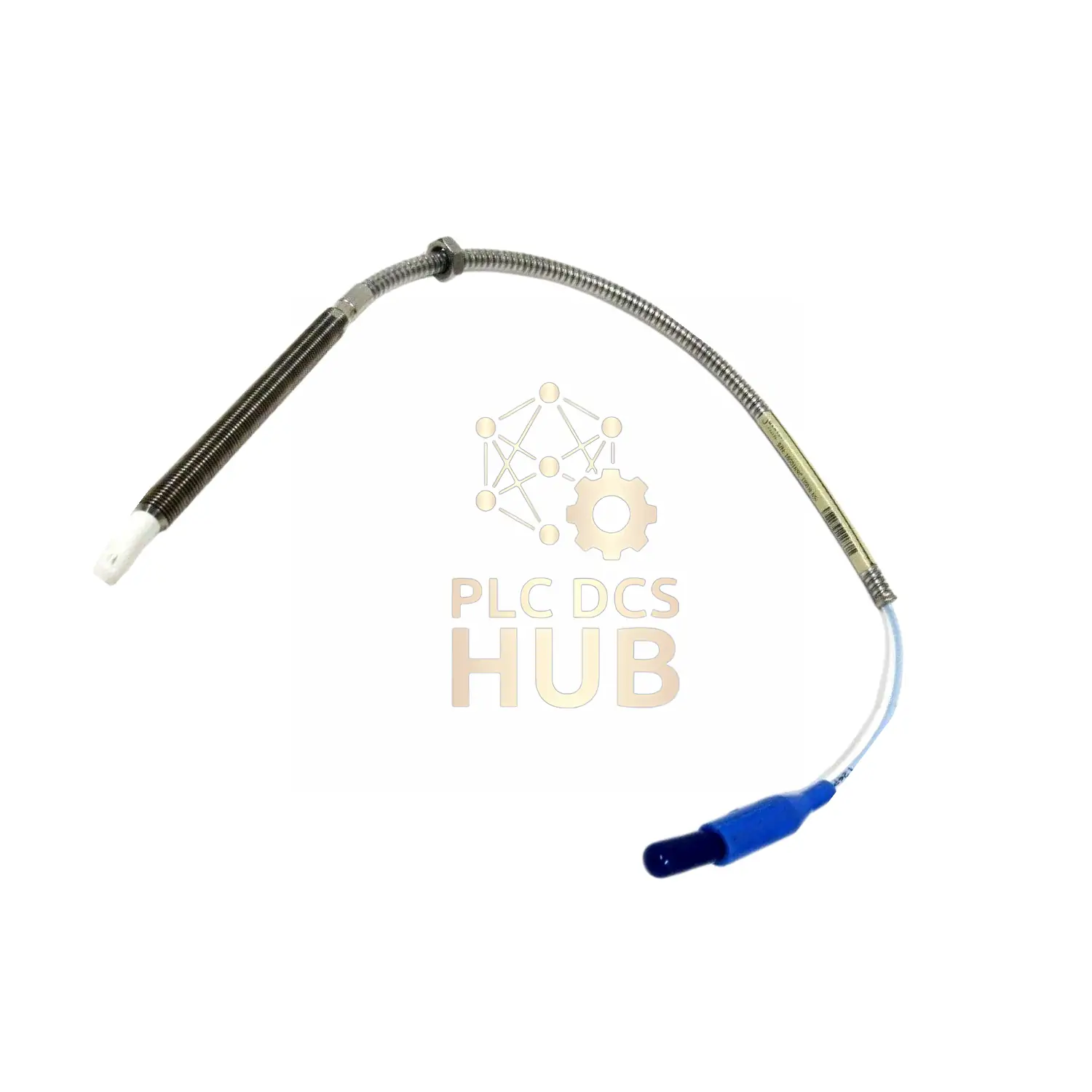

Bently Nevada 3300 NSv Compact Proximity Sensor

Product Overview

Factory-new vibration probe (Part 330904-00-15-05-11-00) with armored M8X1 thread. Features short 0.5m cable and connector protector. Direct replacement for 3300 RAM systems.

Model Breakdown

• Base Model: 330904 (NSv Probe)
• -00: 0mm unthreaded section
• -15: 150mm total case length
• -05: 0.5 meter cable
• -11: ClickLoc connector + protector
• -00: No agency approvals required

Key Specifications

• Linear Detection: 0.25-1.75mm range
• Output Sensitivity: 200 mV/mil
• Probe Resistance: 4.0Ω ±0.5Ω
• Temp Tolerance: -62°F to +351°F
• Cable Type: FluidLoc FEP coaxial
• Response Time: <0.1 ms

Installation Notes

• Optimal gap: 1.0 mm from target
• Max thread engagement: 12mm
• Hand-tighten only (5 in-lb max)

Compatibility

Works with all 3300 RAM systems. Better side-view performance than 3000-series probes.

Approvals Note

No agency certifications (Option 00) – ideal for non-regulated environments.

Package Contents

• New sensor in sealed packaging
• 12-month warranty

Global Shipping

FedEx/UPS/DHL express available.

Common Questions

Q: Why choose the -00 approval option?
A: For installations where certifications aren’t mandatory

Q: Minimum bend radius?
A: 1.0 inch (25.4mm) with armor

Q: Max field wiring distance?
A: 1000 feet with shielded cable

Q: Pressure sealing material?
A: Viton O-ring (contact for pressure testing)
