Description

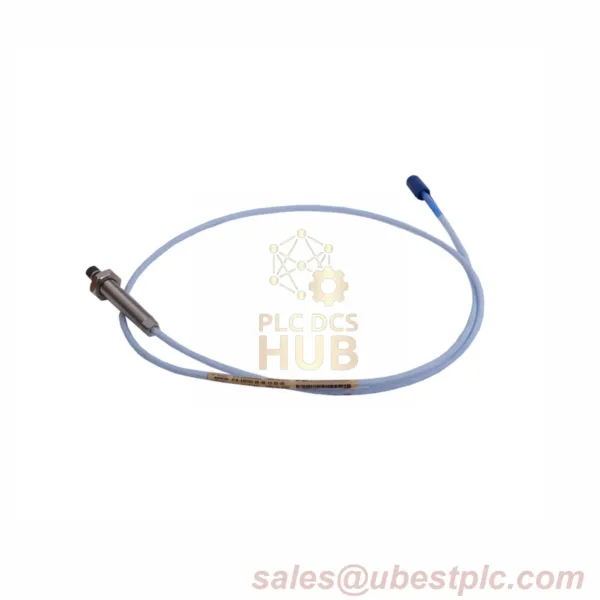

Bently Nevada 330904-08-10-50-01-00 – 5m Cable Proximity Sensor
New industrial-grade vibration probe with extended 5-meter cable for flexible machinery monitoring installations.
Full Configuration Details
- Base Model: 330904 (M8X1 thread with armor)
- Unthreaded Length: -08 → 80 mm
- Case Length: -10 → 100 mm
- Cable Length: -50 → 5.0 meters
- Connector: -01 → ClickLoc with protector
- Certifications: -00 → Standard approvals
Critical Specifications
- Range: 1.5 mm linear measurement
- Accuracy: ±0.06 mm deviation
- Output: -1 to -13 Vdc signal
- Temp Range: -52°C to +177°C
- Resistance: 5.3 ± 0.7 ohms (5m cable)
- Min Target: 8.9 mm diameter
- Bend Radius: 25.4 mm minimum
Installation Guide
- Set gap to 1.0 mm (40 mils) from target
- Apply finger tight torque + max 0.56 N•m
- Max thread engagement: 12 mm
- Use shielded triad cable for field wiring
Warranty & Shipping
- 12-month warranty
- FedEx, UPS, DHL express shipping
- New & original in factory packaging
Expert FAQs
- Q: What’s the resistance for 5m cable?
A: 5.3 ± 0.7 ohms between conductors - Q: Pressure rating for this probe?
A: Seals differential pressure with Viton O-ring (not pressure tested) - Q: Suitable for small shafts?
A: Yes, minimum 8.9mm diameter (13mm recommended) - Q: Chemical resistance level?
A: Enhanced resistance vs older RAM probes - Q: Frequency response with long cables?
A: 0-10 kHz (±3dB) with 305m field wiring
