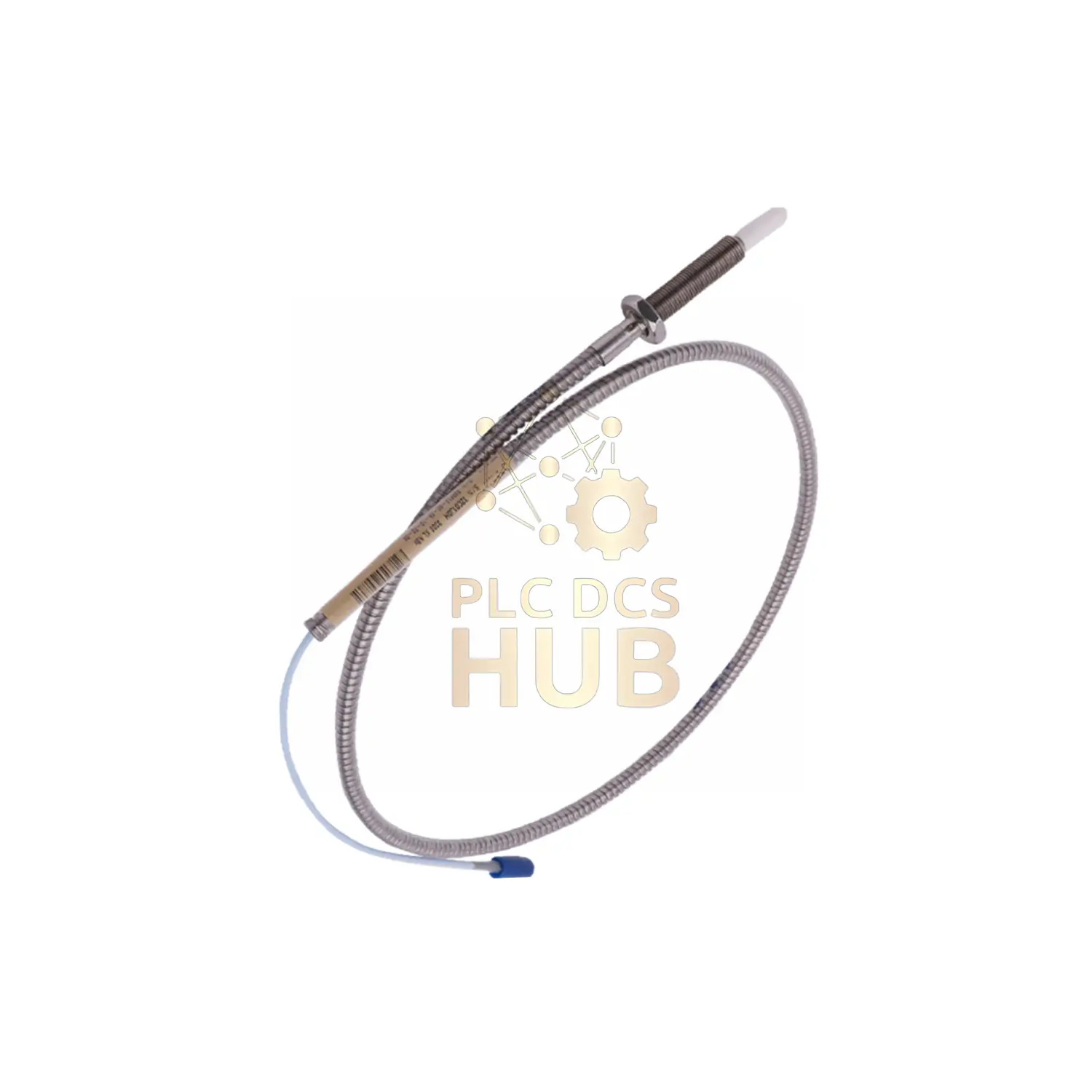

Bently Nevada 330904-08-15-50-02-05: High-Precision Proximity Probe for Industrial Monitoring
New & original 3300 NSv Proximity Probe with 12-month factory warranty. Designed for reliability in harsh environments like compressors and turbines. Ships globally via FedEx, UPS, or DHL.
Product Description
The Bently Nevada 330904-08-15-50-02-05 proximity probe delivers superior vibration monitoring with enhanced chemical resistance. Replaces legacy 3300 RAM probes while offering better side-view characteristics. Ideal for axial position measurements on rotating machinery.
Technical Data
Brand: Bently Nevada
Model: 3300 NSv Proximity Probe
Full Suffix: 330904-08-15-50-02-05
- 330904: M8X1 thread with armor
- 08: 80mm unthreaded length
- 15: 150mm case length
- 50: 5.0m cable (16.4 ft)
- 02: Miniature coaxial ClickLoc connector
- 05: Multiple agency approvals
Electrical Specs:
Probe resistance: 5.3Ω ±0.7Ω
Sensitivity: 7.87 V/mm ±20%
Frequency response: 0-10 kHz (±3dB)
Environmental:
Operating temp: -52°C to +177°C
Pressure seal: Viton O-ring
Minimum bend radius: 25.4mm
Installation Guide
- Recommended gap: 1.0 mm (40 mils)
- Torque: 5.1 N•m (45 in•lb) max
- Min. target size: 13mm diameter
- Field wiring: Max 305m shielded triad cable
Compatibility & Upgrades
Fully interchangeable with 3300 RAM probes. Features superior chemical resistance for process compressors and improved side-view accuracy vs. 190-series probes.
Certifications
ATEX, IECEx, CSA, and more (Option 05).
What’s Included
- 330904-08-15-50-02-05 Probe
- Factory packaging
- 12-month warranty card
FAQ
Q: Cable length options?
A: Standard: 0.5, 1, 5, or 7 meters (5m in this model).
Q: Pressure rating?
A: Not pressure-tested; contact for custom validation.
Q: Compatible with 3300 XL NSv monitors?
A: Yes, with ≤305m field wiring.
Download the full installation manual:
Click here for probe specifications PDF
