Description

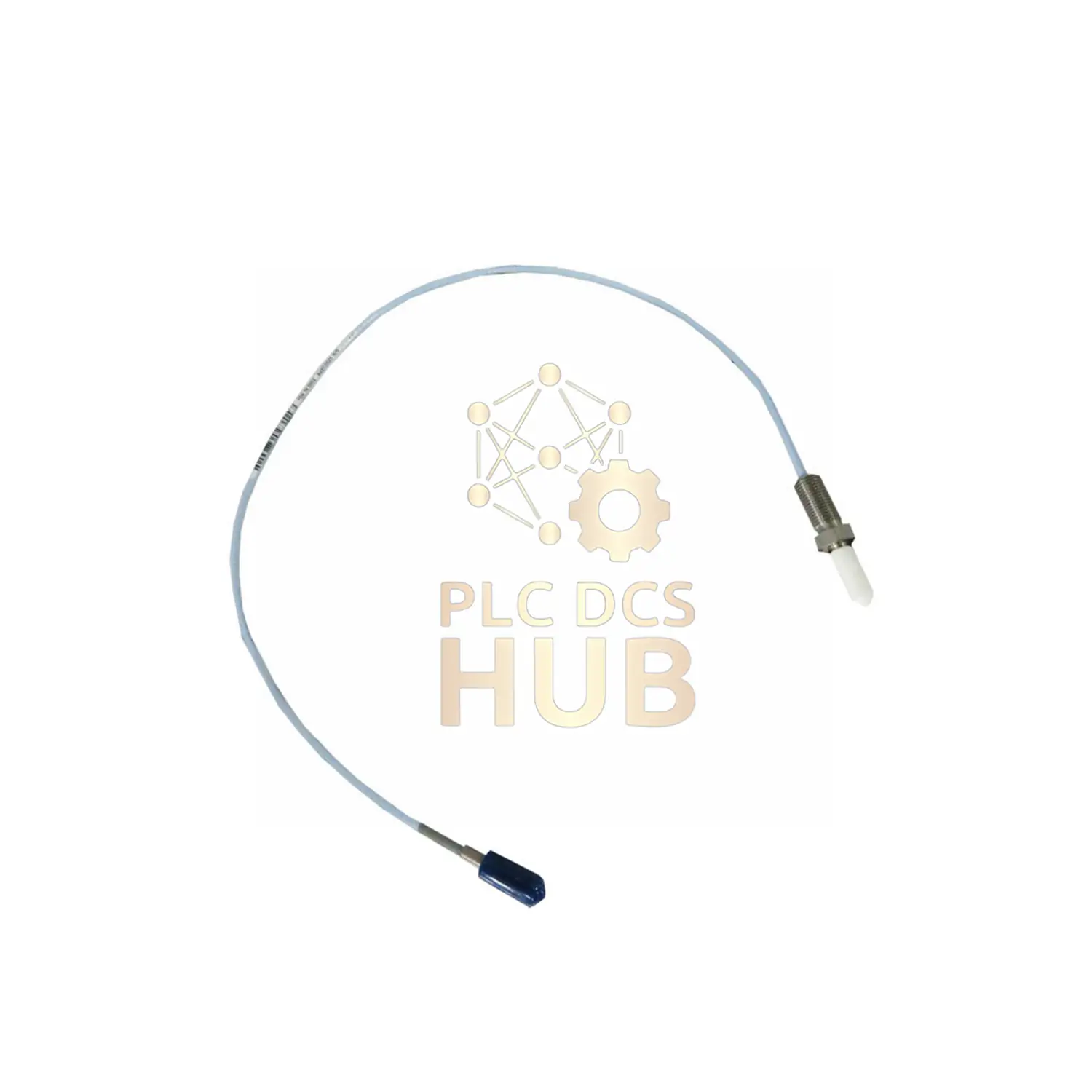

330904-08-15-70-01-05 Vibration Probe with Extended Reach
New original Bently Nevada proximity sensor for industrial machinery protection. Features 7-meter armored cable and multiple safety approvals.
Product Identification
- Brand: Bently Nevada
- Full Model: 330904-08-15-70-01-05
- Type: 3300 NSv Proximity Probe
Model Configuration Breakdown
- ├─ Base: 330904 (M8X1 threaded armored probe)
- ├─ Length 1: -08- = 80mm unthreaded section
- ├─ Length 2: -15- = 150mm total case
- ├─ Cable: -70- = 7.0 meter length
- ├─ Connection: -01- = ClickLoc connector with protector
- └─ Approvals: -05- = Multiple agency certifications
Key Measurements & Performance
- Operating Range: -52°C to +177°C extreme temperatures
- Electrical Resistance: 5.9Ω ±0.9 (center to outer conductor)
- Vibration Detection: 0-10kHz frequency response
- Sensitivity: 7.87V/mm (200mV/mil)
- Optimal Gap: 1.0mm (40 mils) from target
- Cable Protection: Stainless steel armor
Industrial Durability Features
- Chemical-resistant PPS probe tip
- Viton O-ring pressure sealing
- 304 stainless steel housing
- 25.4mm minimum bend radius
Setup & Compatibility
- Mounting Torque: 5.1 N•m (45 in•lb)
- Thread Engagement: Max 12mm
- Works With: All 3300 RAM probe systems
- Wiring: Up to 305m field wiring
What’s Included
- New probe in factory packaging
- 12-month warranty
- Global shipping: FedEx, UPS, DHL options
Technical Questions Answered
- Q: What approvals does this model have?
A: Multiple international agency certifications - Q: Cable length options available?
A: This model has 7m cable; also comes in 0.5m/1m/5m - Q: Pressure testing available?
A: Custom testing can be arranged upon request - Q: Minimum shaft size for accurate readings?
A: 13mm diameter recommended - Q: Chemical resistance compared to older models?
A: Enhanced for harsh process environments
Get Installation Documents
Download these free resources:
- Probe setup guide
- Wiring diagrams
- Safety certifications
- Troubleshooting manual
