Bently Nevada 3300 NSv Proximity Probe | 330904-08-10-50-11-00

Description

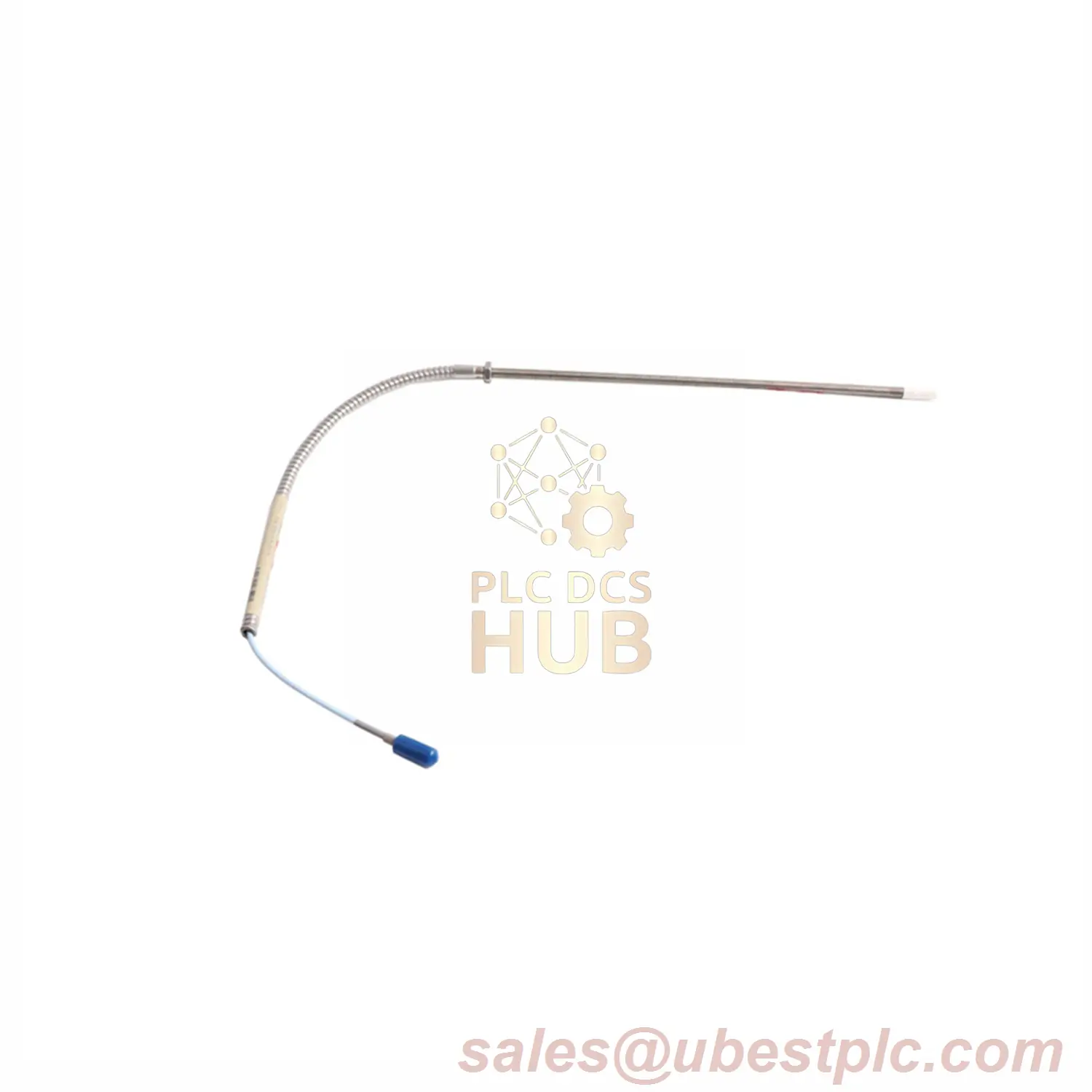

Bently Nevada 5-Meter FluidSafe Proximity Sensor

New factory-sealed 3300 NSv probe with FluidLoc cable protection. No safety certifications needed. Ships fast via FedEx/UPS/DHL. Includes 12-month warranty.

Model Code Details

• Probe Type
  • 330904: Armored M8X1 thread
• Length Options
  • 08: 80mm smooth section
  • 10: 100mm total case
• Cable System
  • 50: 5.0 meter length
  • 11: ClickLoc + protector + FluidLoc
• Certifications
  • 00: No approvals needed

Technical Highlights

• Precision Measurement
  • Linear range: 0.25-1.75mm
  • Accuracy: ±0.06mm
  • Gap setting: 1.0mm optimal
• Electrical Performance
  • Resistance: 5.3Ω ±0.7Ω
  • Sensitivity: 7.87V/mm
  • Frequency: 0-10,000 Hz
• Rugged Construction
  • PPS tip resists chemicals
  • 304 stainless steel armor
  • Viton O-ring seal

Installation Tips

• Max torque: 5.1 N•m (45 in•lb)
• Min shaft size: 8.9mm diameter
• Max wiring distance: 305 meters
• Min bend radius: 25.4mm

5 New FAQ

Q: What does FluidLoc protect against?
A: Oils, coolants, and industrial chemicals

Q: Certification requirements?
A: None needed (option 00)

Q: Probe tip material?
A: Chemical-resistant PPS plastic

Q: Temperature limits?
A: Works from -52°C to +177°C

Q: Waterproof rating?
A: Seals pressure differences but not fully waterproof
