Description

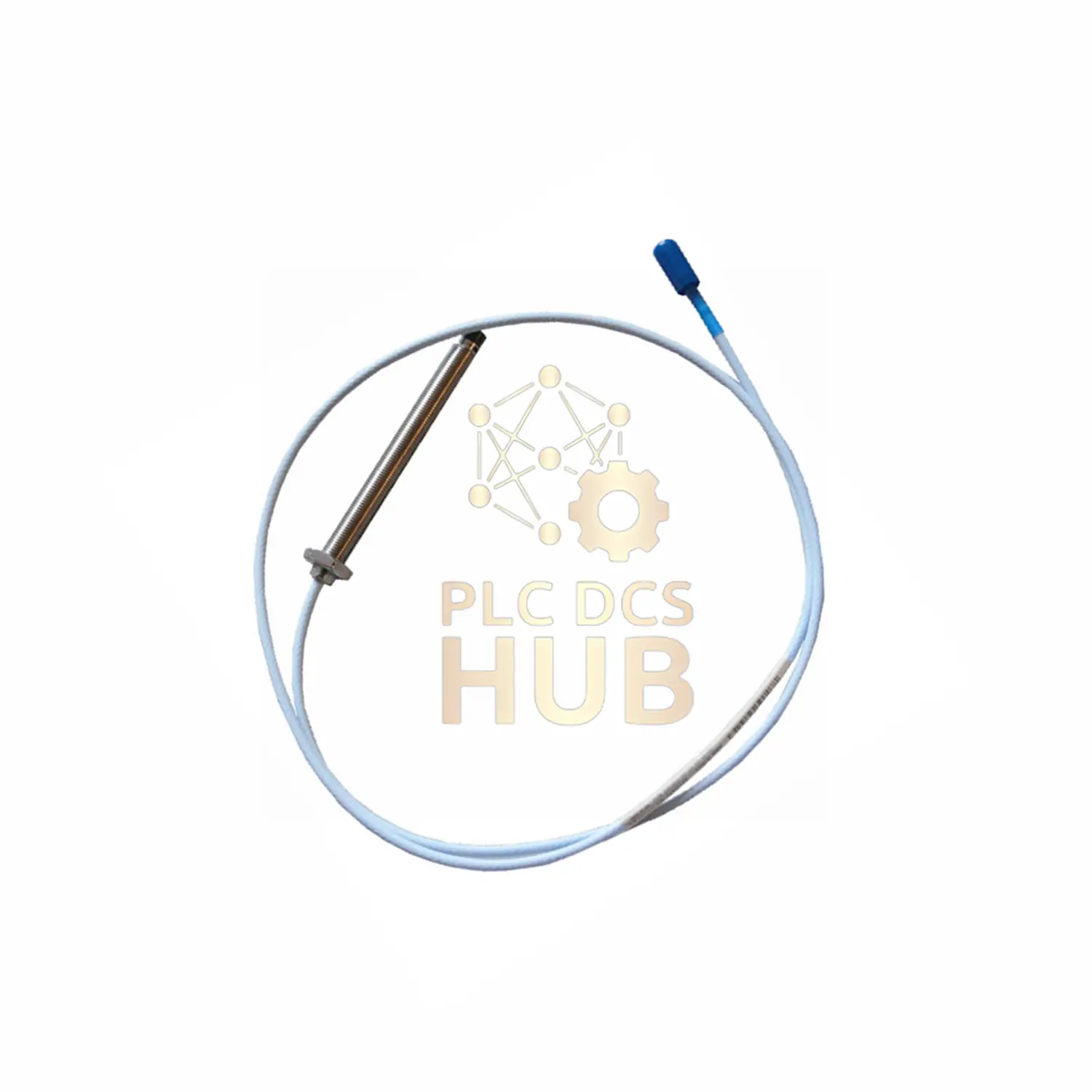

Bently Nevada 330904-08-15-70-11-00 Long-Reach Proximity Probe: 7m FluidLoc Solution
New 7-meter armored probe with chemical-resistant cable. Ideal for hard-to-reach locations. 12-month warranty. Ships worldwide via FedEx/UPS/DHL.
Part Number Details
- 330904 → M8X1 armored probe
- 08 → 80mm smooth section
- 15 → 150mm full body length
- 70 → 7.0 meter cable
- 11 → ClickLoc + FluidLoc + protector
- 00 → Standard approvals
Performance Specifications
- Wire Resistance: 5.9Ω ±0.9 (7m cable)
- Detection Distance: 1.5mm range
- Cable Durability: SST armor protected
- Bend Flexibility: 25.4mm min radius
- Signal Speed: <1ms response time
- Pull Strength: 75N cable tension
- Temp Stability: -52°C to +177°C
Installation Notes
- Hand-tighten only (max 0.56 N•m)
- Maintain 25.4mm bend radius
- Use provided connector protector
- Set 1.0mm gap from target surface
Support & Service
- 12-month full warranty
- Original factory packaging
- Global express delivery options
Technical Questions
- Q: Max cable length without signal loss?
A: 7m probe + 305m extension - Q: FluidLoc chemical resistance?
A: Resists oils, coolants, solvents - Q: Deep mount applications?
A: 150mm case for buried installs - Q: Vibration limits for 7m cable?
A: 15g @ 1.5kHz maximum - Q: Replacement for RAM probes?
A: Direct swap for 3300 RAM systems
Get Installation Resources
- Probe mounting guide
- Wiring diagrams
- Gap setting tool
- Safety instructions
