Description
Description

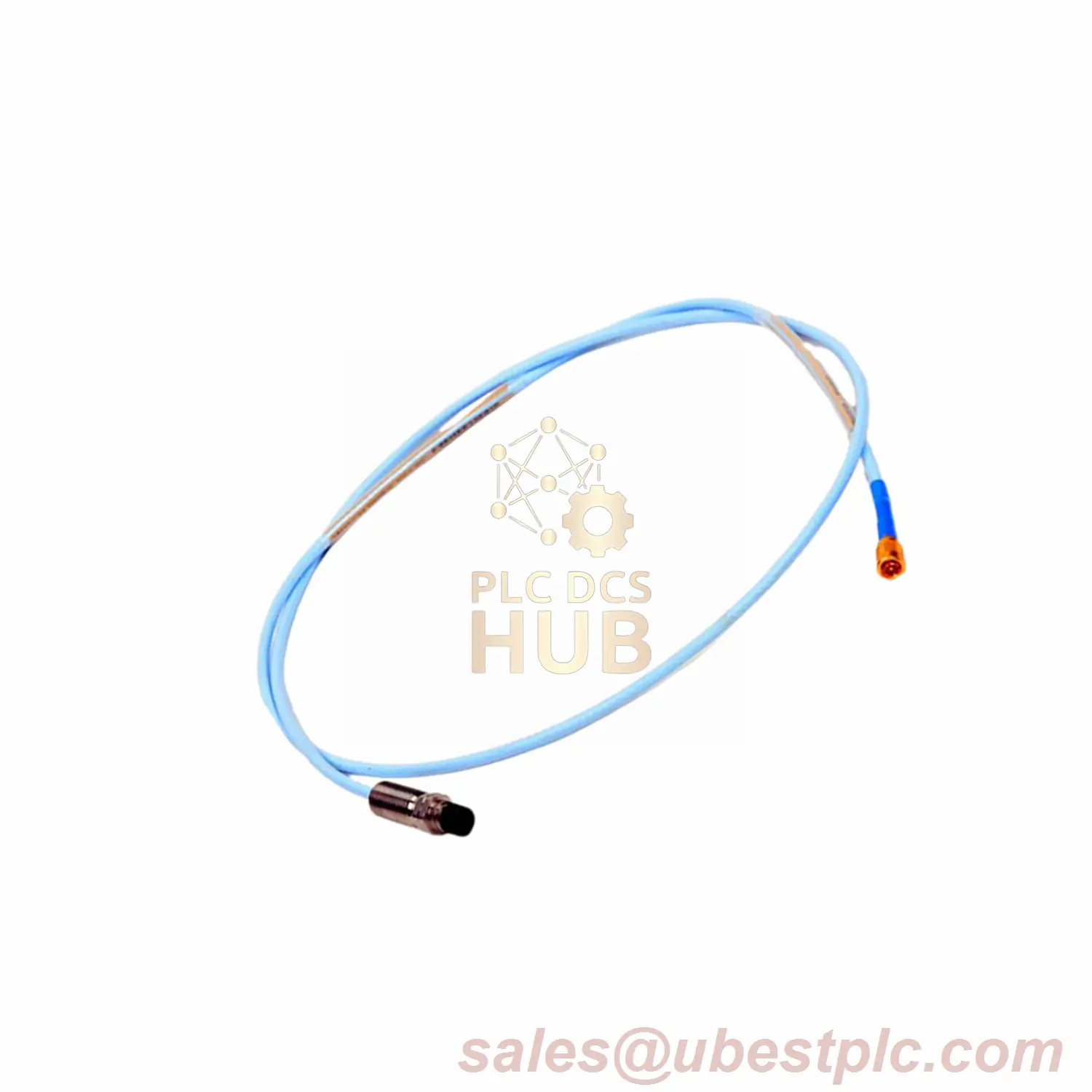

The Bently Nevada 3300 XL 8 mm Probe (Model: 330101-00-11-20-02-05) is a high-performance sensor for industrial vibration monitoring. Designed without armor, it features a 3/8-24 UNF thread and a robust PPS plastic tip.
Technical Data
- Brand: Bently Nevada
- Model: 330101-00-11-20-02-05
- Suffix Details: 00 (0.0″ unthreaded), 11 (1.1″ case), 20 (2.0m cable), 02 (Mini-ClickLoc connector), 05 (CSA/ATEX/IECEx)
- Range: 2 mm (80 mils)
- Accuracy: ±0.025 mm (Standard)
- Output: 7.87 V/mm ±5%
- Temperature: -52°C to +177°C (Standard)
- Resistance: 7.88 Ω ±0.50 (2.0m cable)
- Material: Stainless steel case, PPS tip
Installation Guide
- Use 0.2-1.5 mm² (16-24 AWG) shielded triad cable.
- Max field wiring: 305m.
- Set radial gap to -9 Vdc (~1.27mm).
- Avoid temperatures below -34°C to protect seals.
Certifications
CSA, ATEX, IECEx approved for hazardous areas.
Package Contents
- 3300 XL 8mm Probe
- Mini-ClickLoc connector
- COO (upon request)
Application Examples
- Industrial machinery vibration monitoring
- Power plant turbines
- Oil & gas rotating equipment
