Product Specifications
| Parameter | Value |
|---|
| Brand | Bently Nevada |

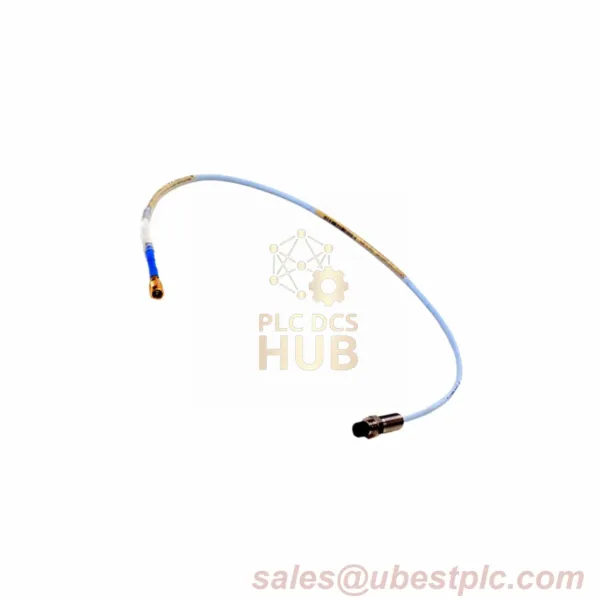

| Full Model | 330101-00-16-10-02-00 |
| Suffix Breakdown | 00 (0.0″ unthreaded length), 16 (1.6″ case length), 10 (1.0m cable), 02 (Miniature coaxial ClickLoc) |
| Thread Type | 3/8-24 UNF |
| DC Resistance | 7.59Ω ±0.50Ω at 1.0m |
| Cable Capacitance | 69.9 pF/m (21.3 pF/ft) |
Performance Data for 330101-00-16-10-02-00
| Linear Range | 0.25-2.3mm (10-90 mils) |
| Radial Vibration Gap | -9Vdc (1.27mm/50 mils) |
| Scale Factor Accuracy | ±5% (5m system), ±6.5% (9m system) |
| Deviation (DSL) | ±0.025mm (5m), ±0.038mm (9m) |
Physical Properties
- Probe Tip: Molded PPS plastic
- Case Material: AISI 303/304 stainless steel
- Weight: 323 g/m (11.4 oz)
- Pressure Seal: Viton® O-ring (untested)
Temperature Limits
| Standard Operation | -52°C to +177°C (-62°F to +350°F) |
| Extended Range | Up to +260°C (+500°F) for cable |
| Humidity Tolerance | <3% ASF change at 93% RH |
Field Wiring Guide
- Use 0.2-1.5mm² (16-24 AWG) shielded triad cable
- Max 305m (1,000ft) between probe & monitor
- Tinned wiring recommended
Industrial Use Case
Monitors steam turbine shafts in power plants where high temperatures (up to 200°C) and vibration accuracy (±0.025mm) are critical. The 8mm PPS tip withstands steam exposure.
Special Features
- TipLoc™ molding for strong tip-body bond
- CableLoc™ design (330N pull strength)
- Optional FluidLoc™ leak prevention
Package Details
- 1x 3300 XL 8mm probe
- 1m ClickLoc connector cable
- COO available on request
Warnings
- Avoid temperatures below -34°C (-30°F)
- Not pressure-tested by default
- Use only in non-hazardous areas (00 suffix)
Contact Support
Email sales@ubestplc.com for custom pressure testing or ETR configurations.
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
