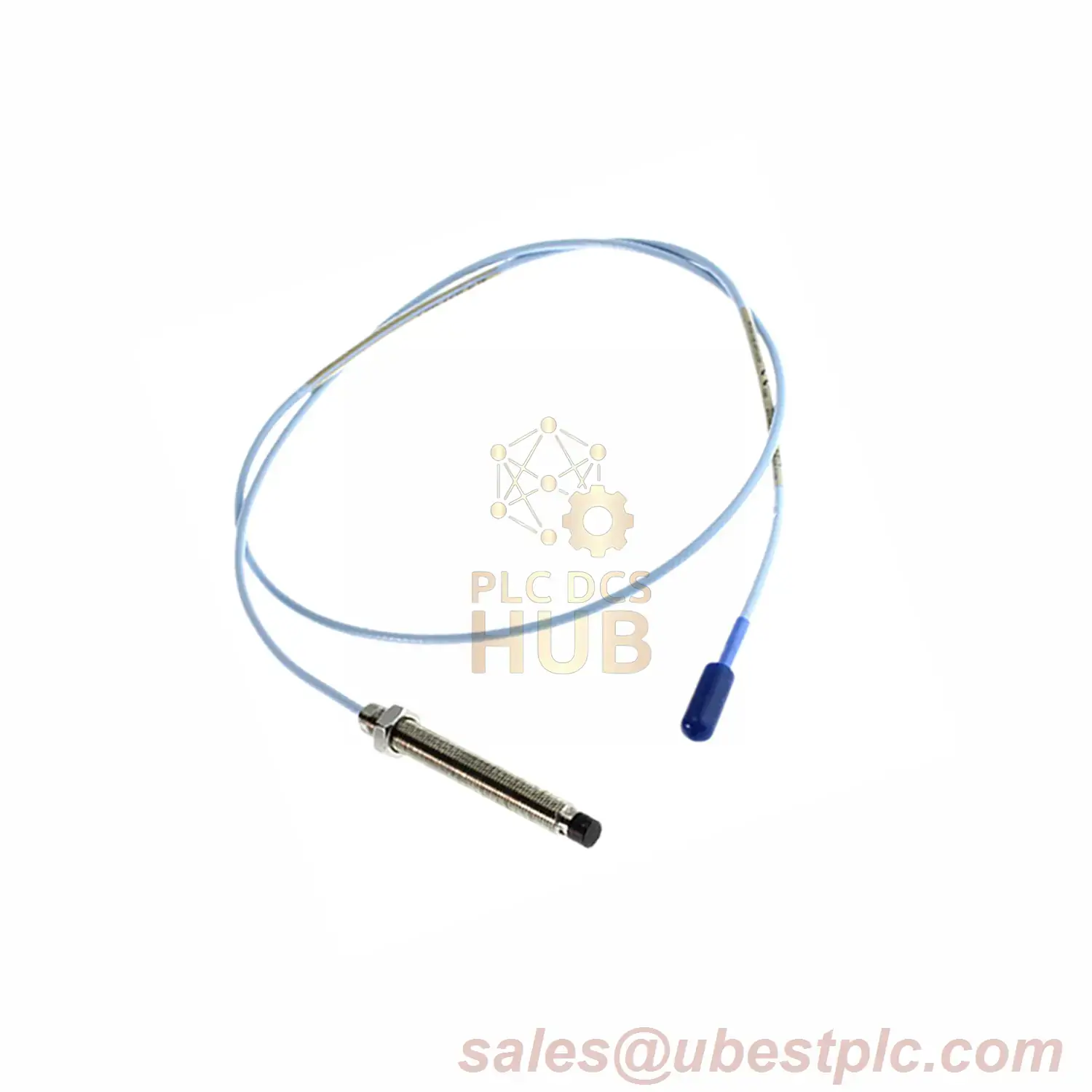

Bently Nevada 330191-00-16-15-CN Proximity Probe: Heavy-Duty Precision Monitoring
Core Innovations for 330191-00-16-15-CN
- Enhanced Durability: TipLoc® molded tip + CableLoc® 75lb pull strength
- Extreme Temp Ready: -55°C to +232°C (T1 Classification)
- Secure Fit: 3/8-24 UNF thread (14.3mm engagement)
- FluidLock Option: Optional oil-resistant cable sealing
Suffix Configuration Tree
- Root
- 330191 – 8mm ETR Probe Base
- Mechanical
- 00 – Zero Unthreaded Length
- 16 – 1.6″ Compact Housing
- Electrical
- 15 – 1.5m FEP Cable
- Compliance
- CN – Country-Specific Certification
Technical Specifications
| Electrical Performance: • DC Resistance: 7.73Ω ±0.5 • Output Impedance: 50Ω • Voltage Range: -17.5V to -26VDC • Current Draw: 12mA max | Mechanical Robustness: • Thread Torque: 5.1N·m (45 in-lb) • Cable Strength: 330N Pull Rating • Weight: 485g (1.5m cable) • IP Rating: 66 (with optional armor) |
Installation Guide
- Max Thread Engagement: 14.3mm
- Recommended Torque: 5.1N·m
- Bend Radius: 38mm (1.5″) minimum
- Grounding: <5Ω to chassis required
FAQ
Q: Difference between EPL T1-T5 ratings?
A: T1 allows highest temp operation (+232°C), T5 limited to +40°C ambient
Q: Cleanroom compatibility?
A: Yes – meets ISO Class 3 particle emission standards
Q: Hydrostatic pressure rating?
A: 5000psi with optional pressure-balanced design
