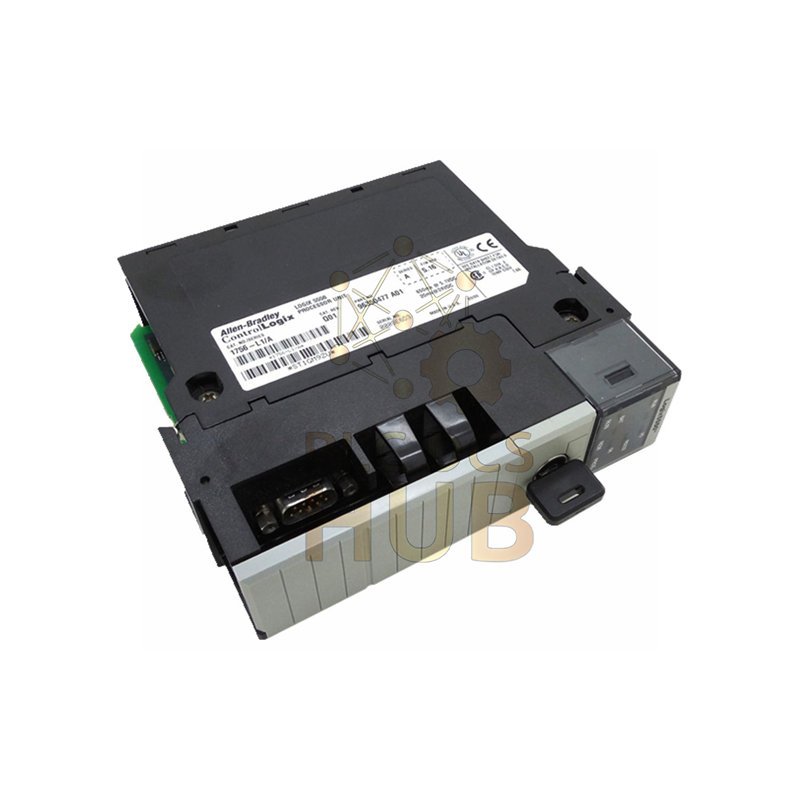

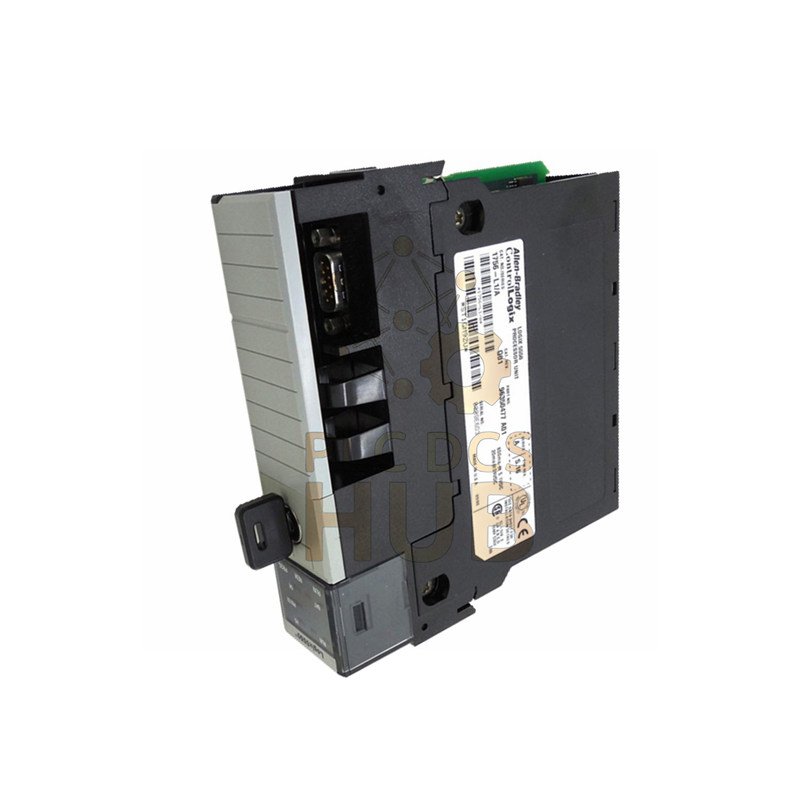

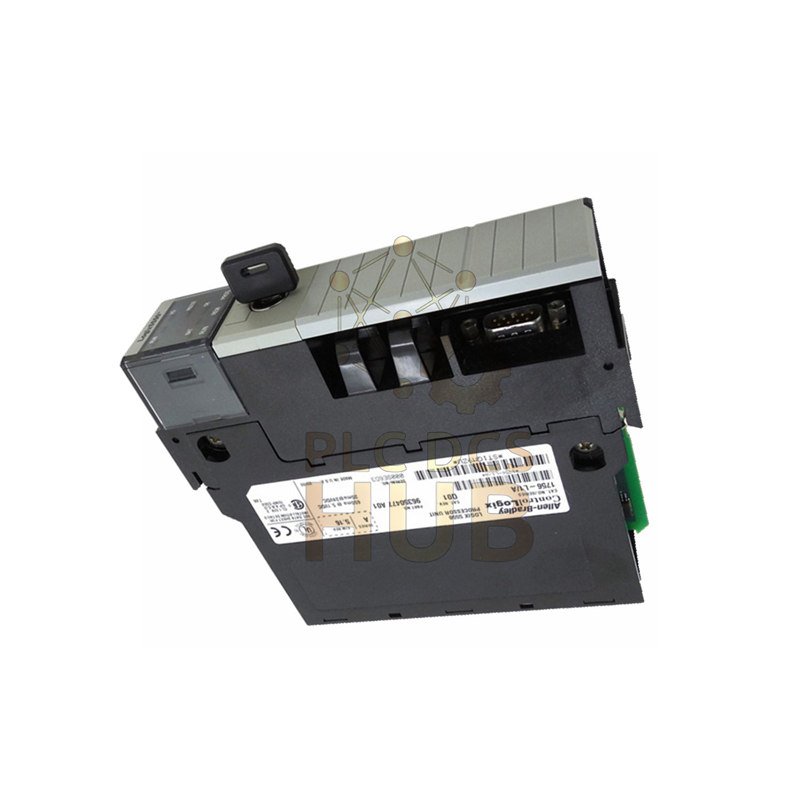

Allen-Bradley 1756-L1 ControlLogix 5550 Processor Module
Powerful, flexible, and reliable. The Allen-Bradley 1756-L1 is a ControlLogix 5550 controller, perfect for medium-scale automation projects. This processor module delivers high performance with support for up to 250 connections and multiple network protocols. It features 64 KB of user memory and an integrated RS-232 port for easy setup. Install it in any slot of a ControlLogix chassis for centralized or distributed control. Download the full datasheet for more in-depth information: Click Here to Download
Complete Technical Data
| Manufacturer Brand | Rockwell Automation | Allen-Bradley |
| Part Number / Catalog No. | 1756-L1 |
| Series & Type | ControlLogix Processor Module |
| User Memory | 64 Kilobytes |
| I/O Capacity | 128,000 Discrete / 4,000 Analog |
| Communication Port | One (1) RS-232 |
| Isolation Voltage | 30 Volts Continuous |
| Backplane Current | 5V DC: 120 mA | 24V DC: 2 mA |
| Power Dissipation (Max) | 4.1 Watts |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Storage Temperature | -40 to 85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Battery Backup | 1756-BA1 (0.59g Lithium) |
| Compatible Cables | 1756-CP3, 1747-CP3 |
| Enclosure Type | Open |
Installation Guide
Installation is simple. Insert the module directly into any available slot of a compatible ControlLogix chassis (e.g., 1756-A4, A7, A10, A13, A17). The module gets power from the chassis backplane. You can install multiple controllers in the same chassis; they can communicate with each other and operate independently.
Compatibility Notes
This module works with:
- Chassis: ControlLogix 1756-A* series.
- Memory Modules: For non-volatile memory, use only 1756-M1, 1756-M2, or 1756-M3.
- Battery: Use only the recommended 1756-BA1 lithium battery for replacement.
- Programming Cables: 1756-CP3 or 1747-CP3 Category 3 serial cables.
- Software: Configured using RSLinx Classic/Enterprise.
Packaging & Warranty
Package Includes: One (1) Allen-Bradley 1756-L1 Controller Module.
Warranty: We offer a full 12-month warranty on this product from the date of purchase.
Shipping: We ship worldwide via trusted carriers: FedEx, UPS, and DHL.
