Description
Product Summary

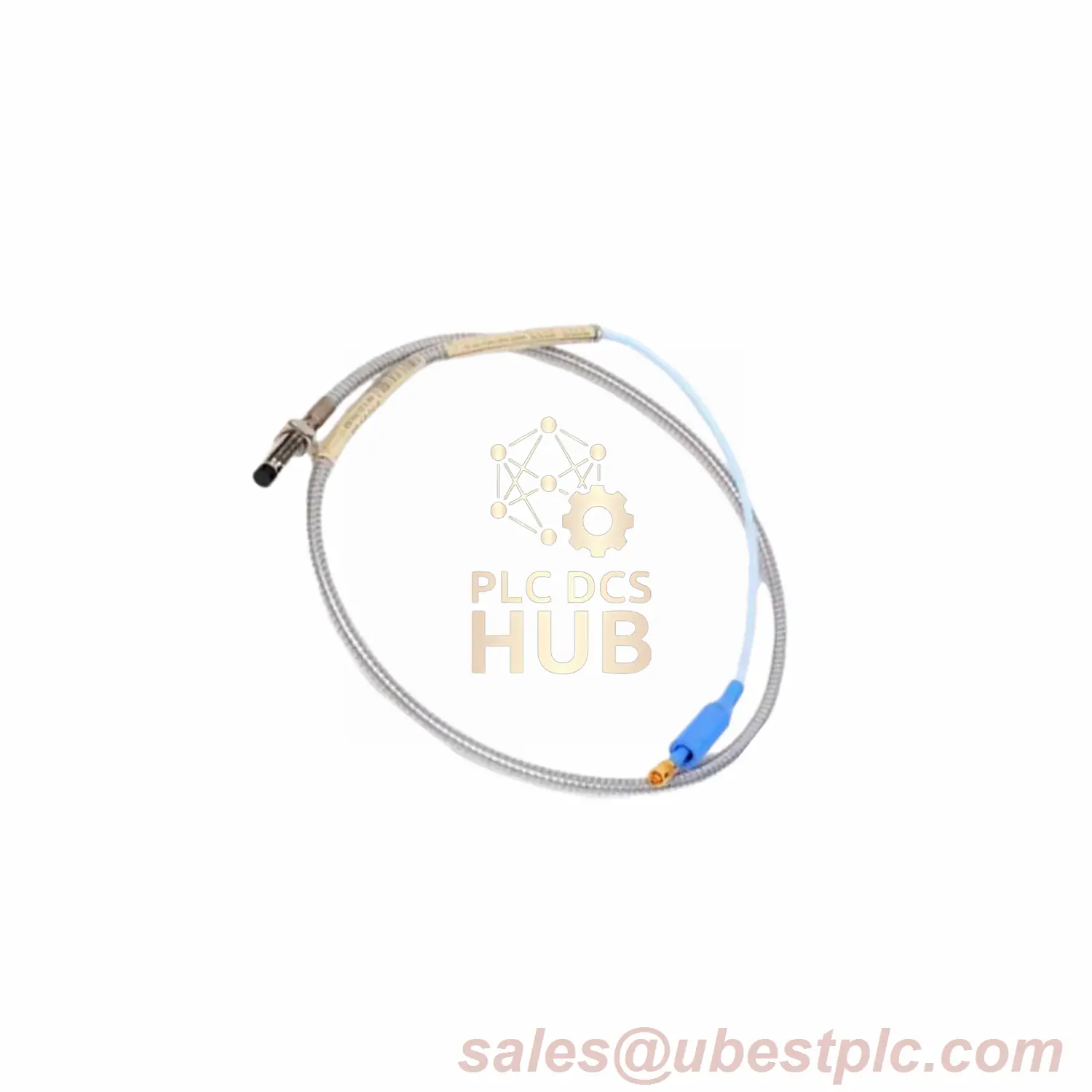

The Bently Nevada 3300 XL 8 mm Probe (Product No. 330101-00-50-10-02-00) delivers reliable vibration monitoring with a 5.0-inch stainless steel case and 3/8-24 UNF thread. Designed for durability, it includes TipLoc and CableLoc technology (330 N pull strength) and optional FluidLoc to prevent fluid leaks. Ideal for demanding industrial environments.
Technical Parameters
| Brand | Bently Nevada |
|---|---|
| Model | 3300 XL 8 mm Probe |
| Product Number | 330101-00-50-10-02-00 |
| Suffix Breakdown | 00-50-10-02-00 (Case: 5.0 in, Cable: 1.0 m, ClickLoc Connector) |
| Probe Tip | PPS Plastic |
| Case Material | AISI 303/304 Stainless Steel |
| Weight | 323 g/m (11.4 oz) |
| Pressure Seal | Viton® O-ring (custom testing available) |
Key Performance Metrics
- Linear Range: 0.25–2.3 mm (10–90 mils).
- Accuracy: ±5% (1/5 m systems), ±6.5% (9 m/ETR systems).
- Humidity Stability: <3% error after 56 days at 93% humidity (IEC 68-2-3).
- Cable Capacitance: 69.9 pF/m (21.3 pF/ft).
Temperature Specifications
- Standard Range: -52°C to +177°C (-62°F to +350°F).
- Extended Probe Tip: Up to +218°C (+425°F).
- Cable & Connector: -51°C to +260°C (-60°F to +500°F).
- Avoid storage below -34°C (-30°F) to protect seals.
Installation Notes
- Use 3-conductor shielded cable (16–24 AWG).
- Max. wiring distance: 305 m (1,000 ft).
- Set radial gap to -9 Vdc (~1.27 mm/50 mils).
Application Examples
- Hydroelectric Turbines
- Food Processing
- Aerospace Testing
Support & Services
- COO (Certificate of Origin): Available upon request.
- Contact sales@ubestplc.com for pressure testing or custom requirements.
