Bently Nevada – 3300 XL 8 mm Proximity Probe 330101-00-52-10-12-05

Description

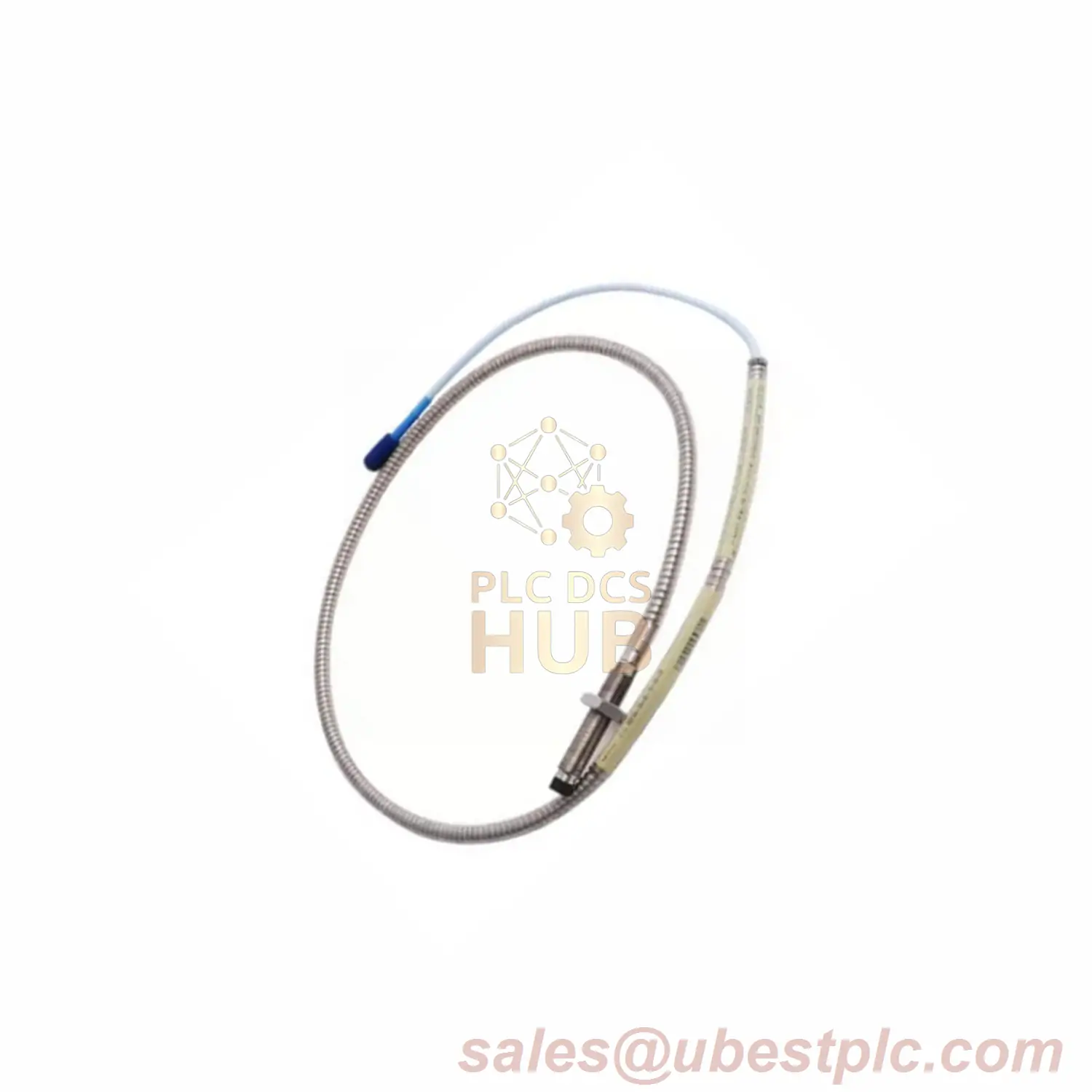

Bently Nevada Probe 330101-00-52-10-12-05

New 330101-00-52-10-12-05 | Hazardous Area Certified | FluidLoc® Leakproof Design

Part Number Breakdown

• 00: 0.0″ Unthreaded Shaft
• 52: 5.2″ Stainless Steel Case
• 10: 1.0m Cable (3.3 ft)
• 12: ClickLoc Connector + FluidLoc® Cable
• 05: CSA/ATEX/IECEx Certified

Critical Technical Data

• Resistance: 7.59Ω ±0.50 (Center to Outer Conductor)
• Voltage: -17.5V to -26V DC
• Temp Range: -52°C to +218°C (Tip) / -51°C to +260°C (Cable)
• Linear Range: 0.25mm to 2.3mm (10-90 mils)
• Humidity Tolerance: <3% ASF change @93% RH for 56 days
• Weight: 323g/m (11.4 oz/ft)

Advanced Design Features

• TipLoc® Molding: Bonds probe tip to body for shock resistance.
• CableLoc® Technology: 75 lbs pull strength (330N) for secure attachment.
• FluidLoc® Cable: Seals oil/liquid leaks in wet environments.
• Material: PPS Plastic Tip + AISI 303/304 SST Case + Viton® Seal.

Industrial Applications

• Wastewater Treatment: Submersible pump vibration monitoring in corrosive tanks.
• Semiconductor Fabs: Precision alignment of wafer-handling robots in cleanrooms.
• Paper Mills: Press roller gap measurement in high-humidity zones.

Certifications & Safety

• ATEX/IECEx Ex ia IIC T1-T5 (Zone 0/1)
• CSA C/US, FCC Part 15, RoHS, EMC EN 61000-6-2/4
• Maritime ABS 2009 compliant for shipboard use.

Installation Notes

• Max Field Wiring: 305m (1,000 ft) shielded triad cable.
• Optimal Gap: 1.27mm (50 mils) @ -9V DC output.
• Avoid: Temperatures <-34°C (-30°F) to prevent seal damage.

Support: sales@ubestplc.com | COO Available | Warranty: 12 Months
