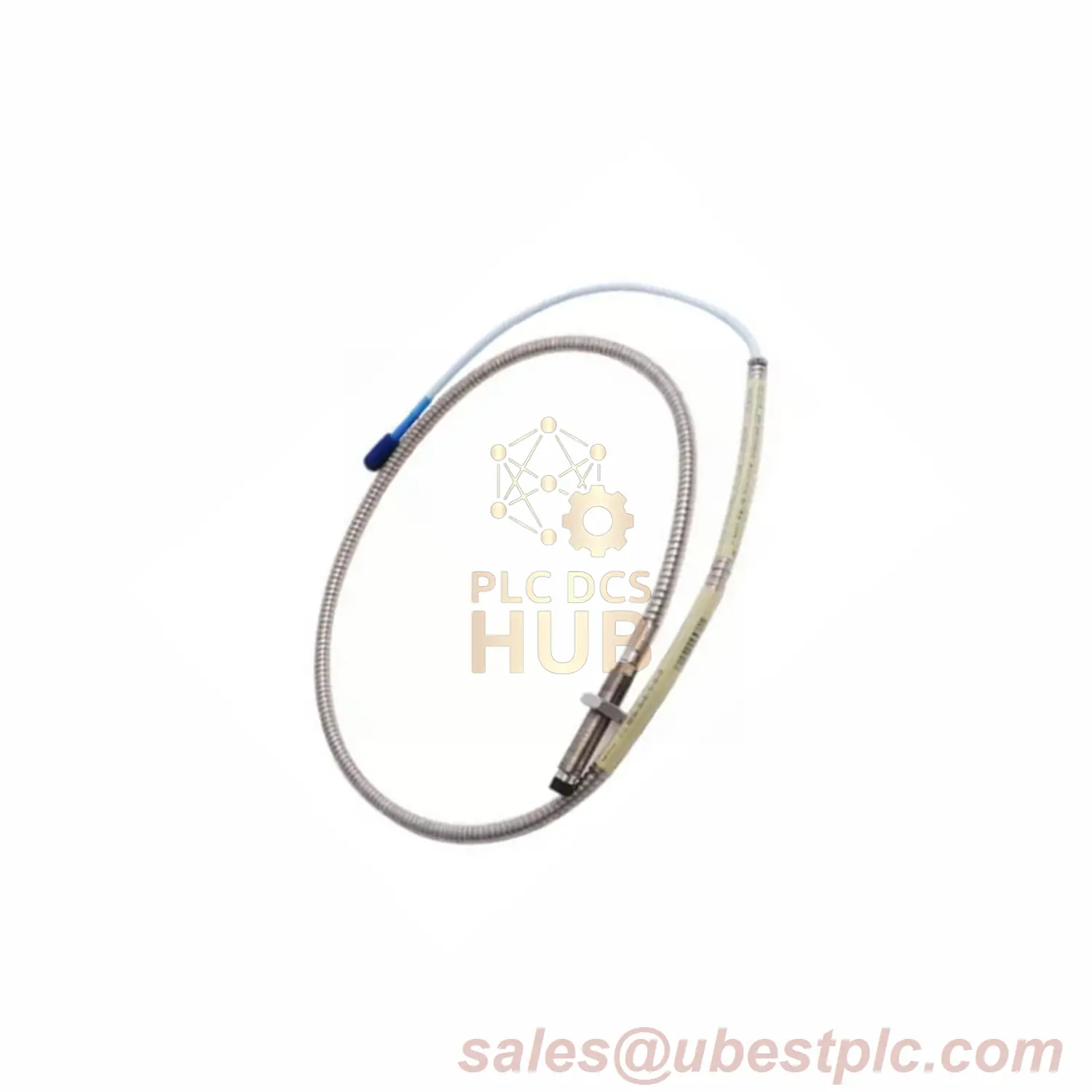

3300 XL 25 mm Proximity Probe Bently Nevada – 330851-08-000-064-10-01-05

Description

Product Overview for 330851-08-000-064-10-01-05

• Brand: Bently Nevada
• Model: 3300 XL 25 mm Proximity Probe
• Full Suffix: 330851-08-000-064-10-01-05
• Case Type: Smooth 1.5″ Dia. – Side Exit (Code 08)
• Case Length: 64mm (Code 064)
• Cable: 1.0m with SST Armor (Code 10)

Key Specifications

• Resistance: 6.2Ω ±0.5Ω (1m cable)
• Frequency Response: 0-10 kHz (±3dB)
• Temperature Range: -35°C to +200°C (continuous), 250°C (24h max)
• Cable Bend Radius: 25mm (min)
• Weight: 350g (armored)

Certifications

• ATEX/IECEx: AEx/Ex ia IIC T1-T5 (Zone 0)
• ABS Certified: 4-9-7/13 (marine use)
• FCC Part 15, EN 61000-6-2/4, RoHS

Installation Tips

• Torque Limit: 68 N•m (max recommended)
• Mounting: Fits 25mm DE systems (side exit)
• IP Rating: IP68 (submersible up to 1m/30min)

Real-World Uses

• Food Processing: Monitors mixer shafts in washdown areas
• Water Treatment: Detects pump vibrations in wet environments
• Wind Turbines: Tracks gearbox health in outdoor conditions

What’s in Box

• 1.0m armored probe (SST)

Support & Warranty

1-year limited warranty. Contact: sales@ubestplc.com
