Description
Heavy-Duty Industrial Sensor

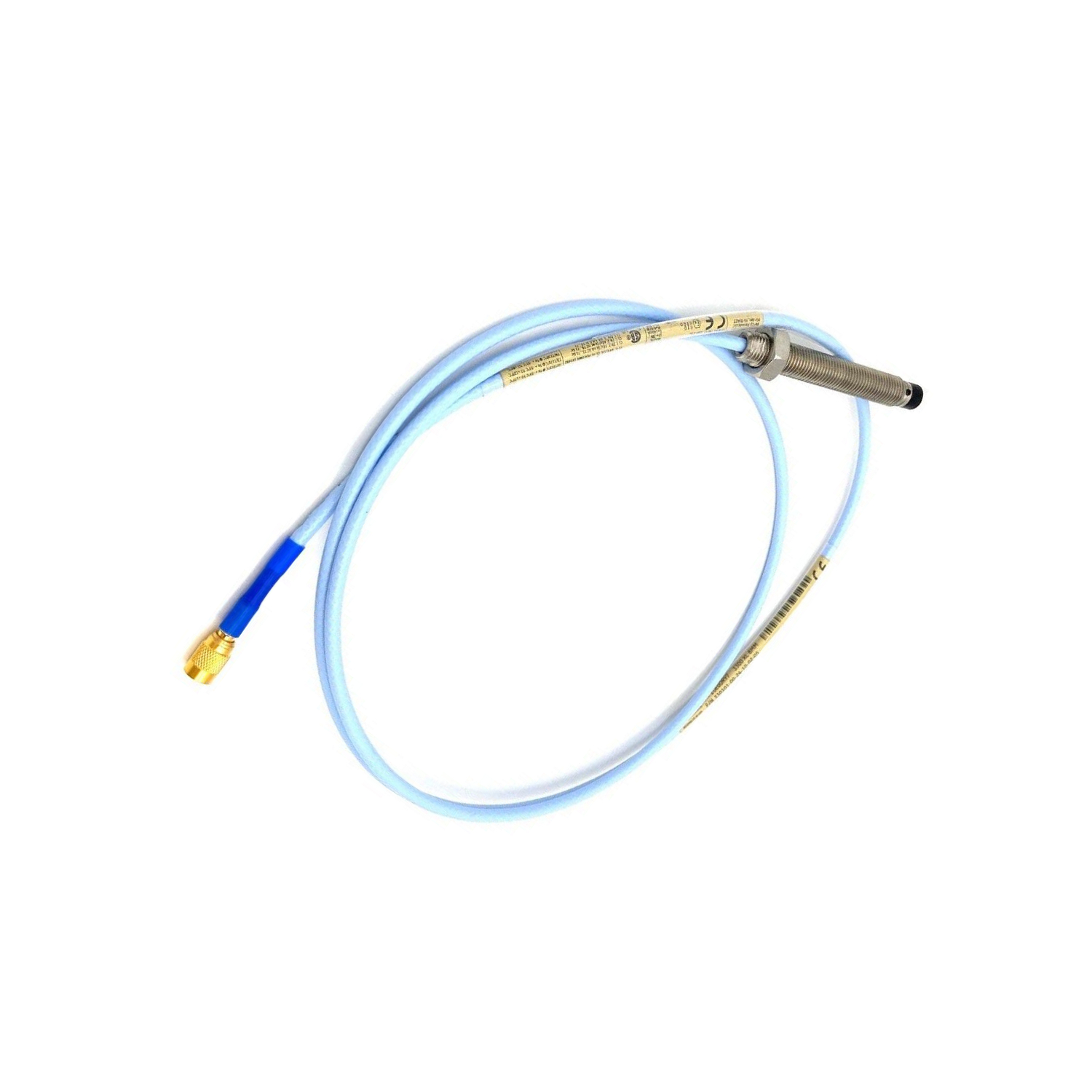

Bently Nevada 3300 XL Probe
Model: 330851-02-000-080-90-01-05
80mm Armored • 9m Cable • Multi-Certified
Complete Product Code Breakdown for 330851-02-000-080-90-01-05
- 02 = M30x2 Threaded Connection
- 000 = 0in Unthreaded Length
- 080 = 80mm Case Length
- 90 = 9.0m (29.5ft) Cable
- 01 = Stainless Steel Armor
- 05 = ATEX/IECEx/ABS Certified
Key Specifications
▷ Electrical
• Resistance: 8.8Ω ±1.1 (9m)
• Signal Loss: 1.8dB @ 100kHz
• 75Ω Triaxial Output
▷ Mechanical
• Weight: 330g (11.6oz)
• Armor Thickness: 1.2mm 316L SST
• IP69K Pressure Wash Proof
Certifications (Code 05)
- ATEX Zone 1: II 2G Ex nA IIC T4
- IECEx Certificate: IECEx UL 22.0087X
- ABS Marine Rule: 4-8-3/1.11.1
Industrial Applications
Chemical Reactors
Monitors agitator shafts in corrosive acid environments
Port Cranes
Tracks gearbox vibrations in saltwater-exposed machinery
Environmental Limits
| Condition | Normal | 24h Peak |
|---|---|---|
| Temperature | -55°C to +232°C | +280°C (EPL Dc) |
| Vibration | 25g @ 10Hz-5kHz | |
Package Contents
- 1x Armored Probe (80mm)
- 9m SST-Armored FluidLoc® Cable
- 1-Year Extended Warranty
Technical Support
Email support@ubestplc.com for marine-grade installation guides
