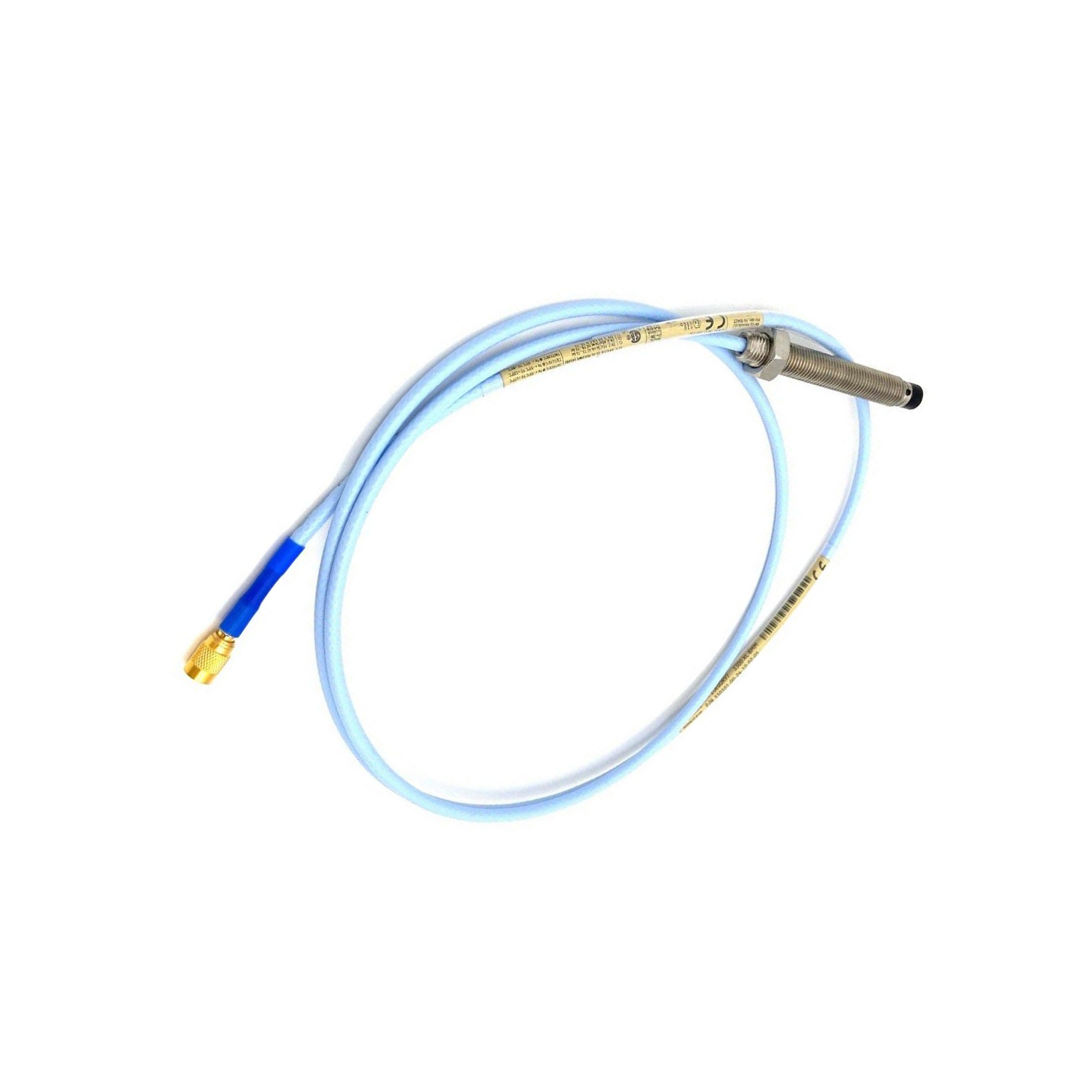

3300 XL 25 mm Proximity Probe Bently Nevada – 330851-02-000-030-90-00-05

Description

Bently Nevada Probe 330851-02-000-030-90-00-05

New 330851-02-000-030-90-00-05 | Multi-Certified | High-Temperature Resistant

Part Number Breakdown

• 02: M30x2 Threaded Case
• 000: 0″ Unthreaded Section
• 030: 30mm Case Length
• 90: 9.0m Cable (29.5 ft)
• 00: No Armor
• 05: CSA, ATEX, IECEx Certifications

Key Technical Data

• Resistance: 8.8Ω ±1.1 (Center to Outer Conductor)
• Voltage: -17.5V to -26V DC
• Temperature: -35°C to +200°C (Standard) / +250°C (24hr Max)
• Weight: 230g (8.1 oz) Without Armor
• Cable: 75Ω Triaxial with FluidLoc® (PFA Insulation)

Design & Durability

• Tip: PEEK Plastic (Extreme Heat/Chemical Resistance)
• Case: AISI 304 Stainless Steel (Corrosion-Resistant)
• Sealing: Withstands High-Pressure Steam Environments

Certifications & Compliance

• ATEX/IECEx Ex ia IIC T1-T5 (Zone 0 Hazardous Areas)
• FCC Part 15, EMC EN 61000-6-2/6-4
• ABS Maritime Rules for Ship Safety
• RoHS 2011/65/EU Compliant

Installation Notes

• Max Torque: 163 N·m (120 ft·lb)
• Recommended Torque: 68 N·m (50 ft·lb)
• Use with 3300 XL 25mm Proximitor Systems Only
• Avoid Cable Kinking to Maintain FluidLoc® Integrity
