Description
Industrial Sensor Solution

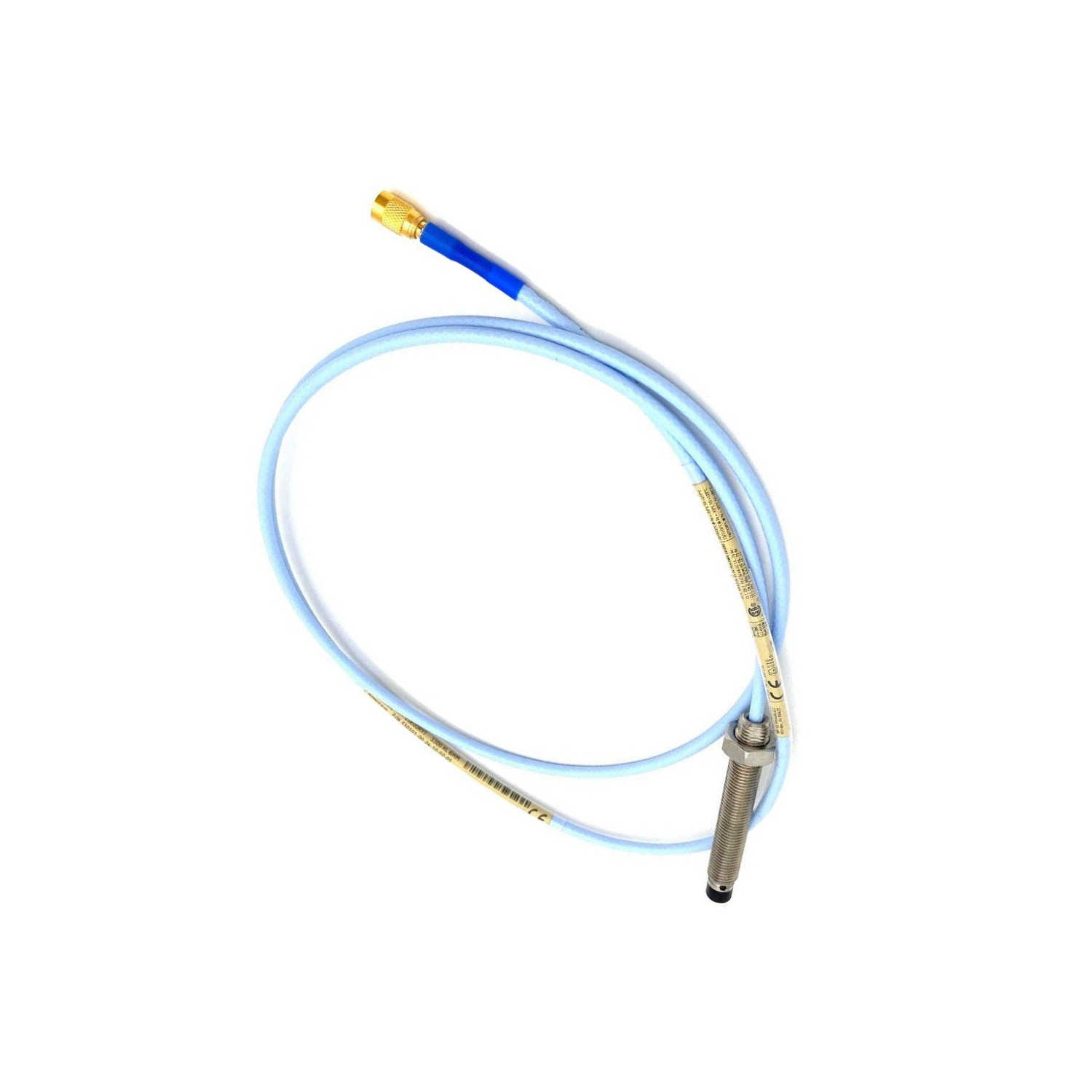

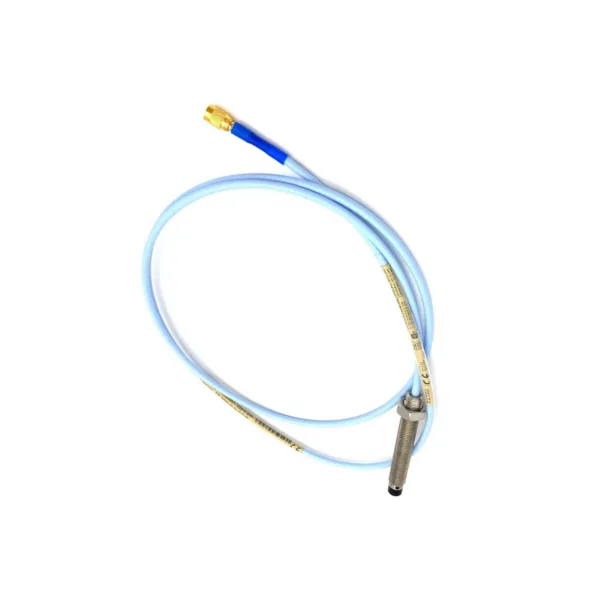

Bently Nevada 3300 XL Probe
Model: 330851-02-000-050-50-01-CN
50mm Armored • China-Certified • 5m Cable
Full Product Code Breakdown
- 02 = M30x2 Thread
- 000 = 0in Unthreaded
- 050 = 50mm Case
- 50 = 5.0m Cable
- 01 = SST Armor
- CN = China Approvals
Core Specifications for 330851-02-000-050-50-01-CN
► Electrical
• 7.5Ω ±0.8 Resistance
• 75Ω Triaxial Signal
► Protection
• IP67 Cable Entry
• Corrosion-Resistant SST
► Environment
• Temp: -55°C to +232°C
• Humidity: 0-100% RH
China Certifications
- CCC (2023-SE-387652)
- GB/T 3836-2017 Ex ia IIC T4
- HJ 2537-2014 (RoHS China)
Industrial Applications
Oil RefineriesMonitors crude oil pumps in explosive zones
Food ProcessingWashdown-proof in meat cutting lines
Durability Features
- Armor Thickness: 0.8mm 316L SST
- Vibration Resistance: 20g @ 2kHz
- Chemical Proof PFA Jacket
Temperature Limits
| Condition | EPL Ga/Gc | EPL Dc |
|---|---|---|
| Continuous | -55°C to +232°C | T280°C |
Package Contents
- 1x Armored Probe (50mm)
- 5m Armored FluidLoc® Cable
- 1-Year China Warranty
