Description
Core Product Info

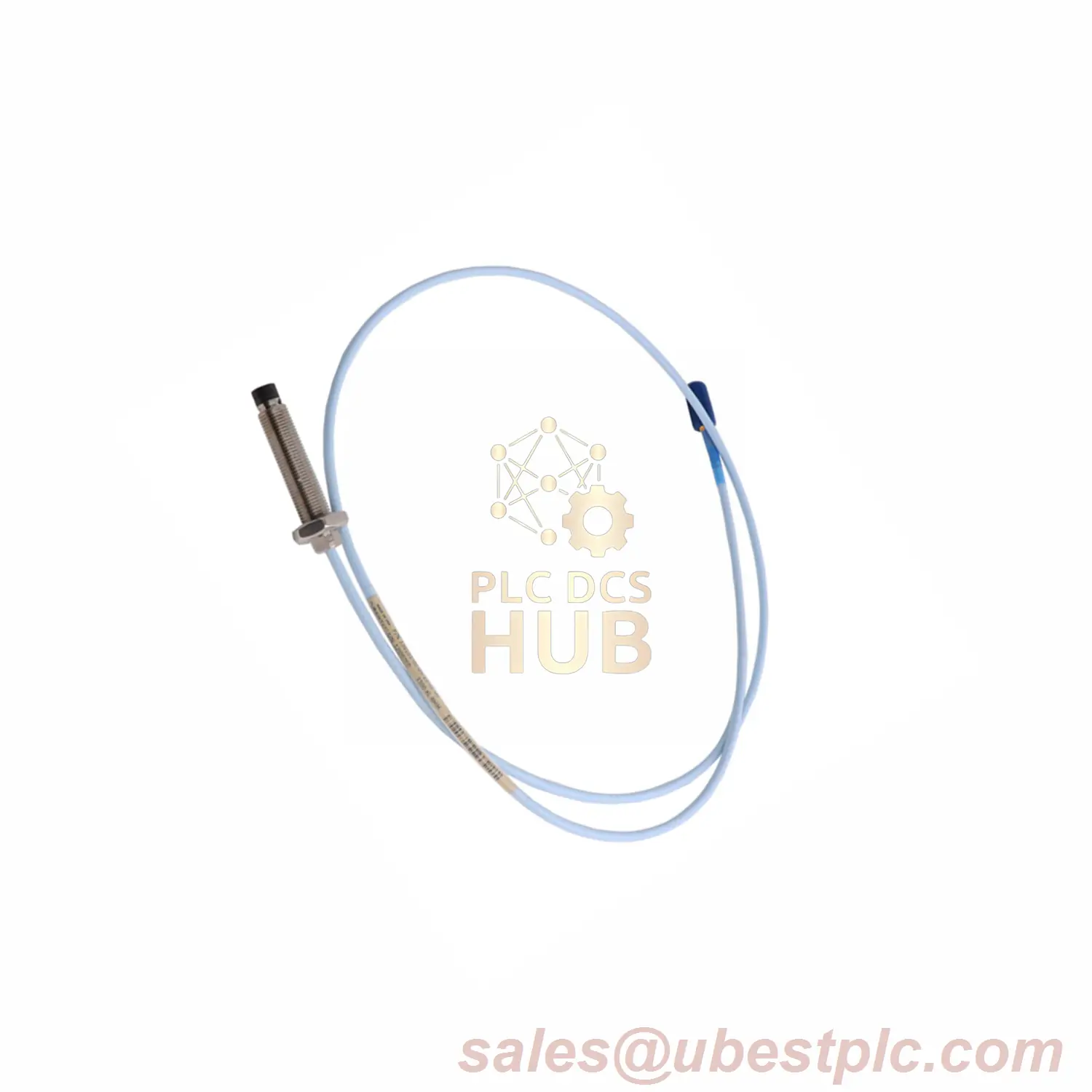

The Bently Nevada 3300 XL 25mm Probe (Model 330851-02-000-060-50-00-00) offers a balanced 60mm case length with 5m cable. No armor/certifications (Option 00). U.S.-made for reliable performance.
Specification Details for 330851-02-000-060-50-00-00
Product Code Parts:
- 02: M30x2 Threads
- 000: 0in Unthreaded
- 060: 60mm Case
- 50: 5.0m Cable
- 00: No Armor
- 00: No Safety Certifications
Critical Metrics:
- Resistance: 7.5Ω ±0.8 (5m cable)
- Temp Range: -35°C to +200°C
- Max Short Temp: 250°C (24h)
- Weight: 230g (8.1 oz) base
Design Advantages
- Case: Rust-proof AISI 304 Stainless Steel
- Tip: PEEK Polymer (Chemical Resistant)
- Cable: 75Ω Triaxial FluidLoc® (5m/16.4ft)
- Torque: 68-163 N·m (50-120 ft·lb)
Industry Uses
- Oil Refineries: Tracks pump shaft alignment in explosive zones.
- HVAC Systems: Monitors large fan bearings in commercial units.
- Rail Transport: Detects wheel axle vibrations at high speeds.
Compliance Notes
- FCC & EMC Certified
- RoHS Compliant
- Not approved for hazardous areas (Option 00)
What’s in Box
- 1x Probe (60mm case, 5m cable)
- Installation Manual
- 12-Month Quality Guarantee
Get Support
Questions? Email sales@ubestplc.com for quick answers.
