Product Details

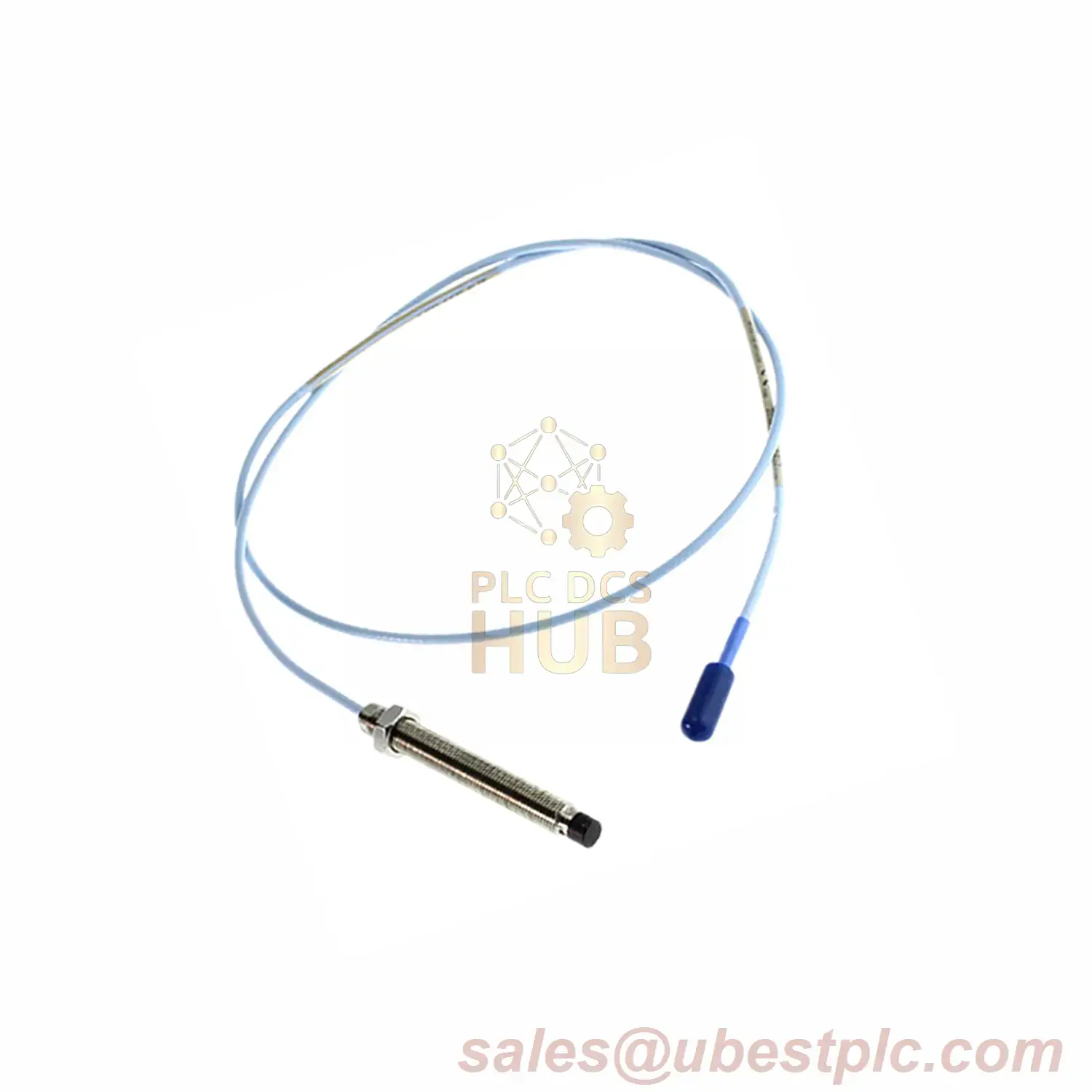

The Bently Nevada 3300 XL 25mm Proximity Probe (Model: 330851-02-000-050-10-00-CN) is built for extreme industrial use. With a 50mm case length, M30x2 threads, and no armor, it fits tight spaces while surviving steam, heat, and vibration. Made in the USA.
Key Specs for 330851-02-000-050-10-00-CN
- Brand & Model
- Bently Nevada 3300 XL 25mm Probe
- Full Product Code
- 330851-02-000-050-10-00-CN
- 02 = M30x2 Thread
- 000 = 0in Unthreaded
- 050 = 50mm Case
- 10 = 1.0m Cable
- 00 = No Armor
- CN = Country Approval
- Performance
- Range: 25mm
- Accuracy: ±0.5Ω at 1m
- Resistance: 6.2Ω (Center to Outer)
- Signal: 75Ω Triaxial
- Temp: -35°C to +200°C (24h peak 250°C)
Durability Features
- Tip Material: PEEK (heat-resistant)
- Case Material: Stainless Steel (AISI 304)
- Cable: 1m/5m/9m FluidLoc® (PFA insulated)
- Weight: 230g (8.1 oz) without armor
Installation Tips
- Max torque: 163 N·m (120 ft·lb)
- Recommended torque: 68 N·m (50 ft·lb)
- Works with 7200 25mm/35mm systems
Certifications
- ATEX/IECEx Zone 0 & 2
- FCC, EMC, RoHS
- ABS Marine Certified
Where It Works
- Chemical Plants: Monitors pump shafts in corrosive areas.
- Paper Mills: Tracks roller bearings in humid conditions.
- Water Treatment: Detects leaks in high-moisture pumps.
What’s Included
- 1x Probe (50mm case, 1m cable)
- 1-Year Warranty
