Description
Core Features

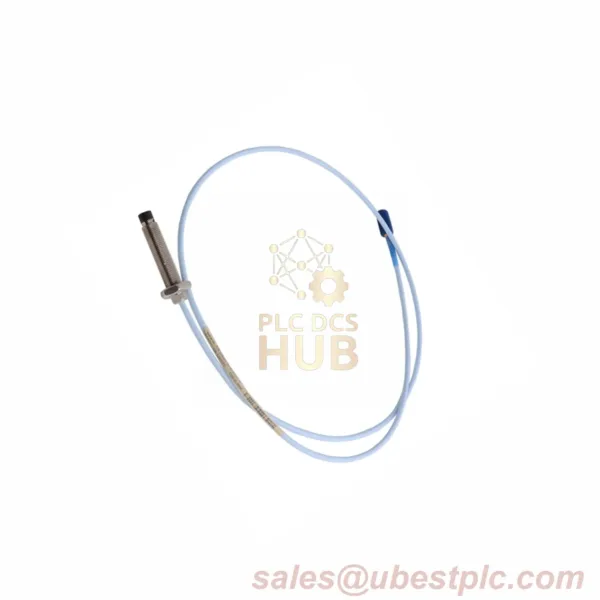

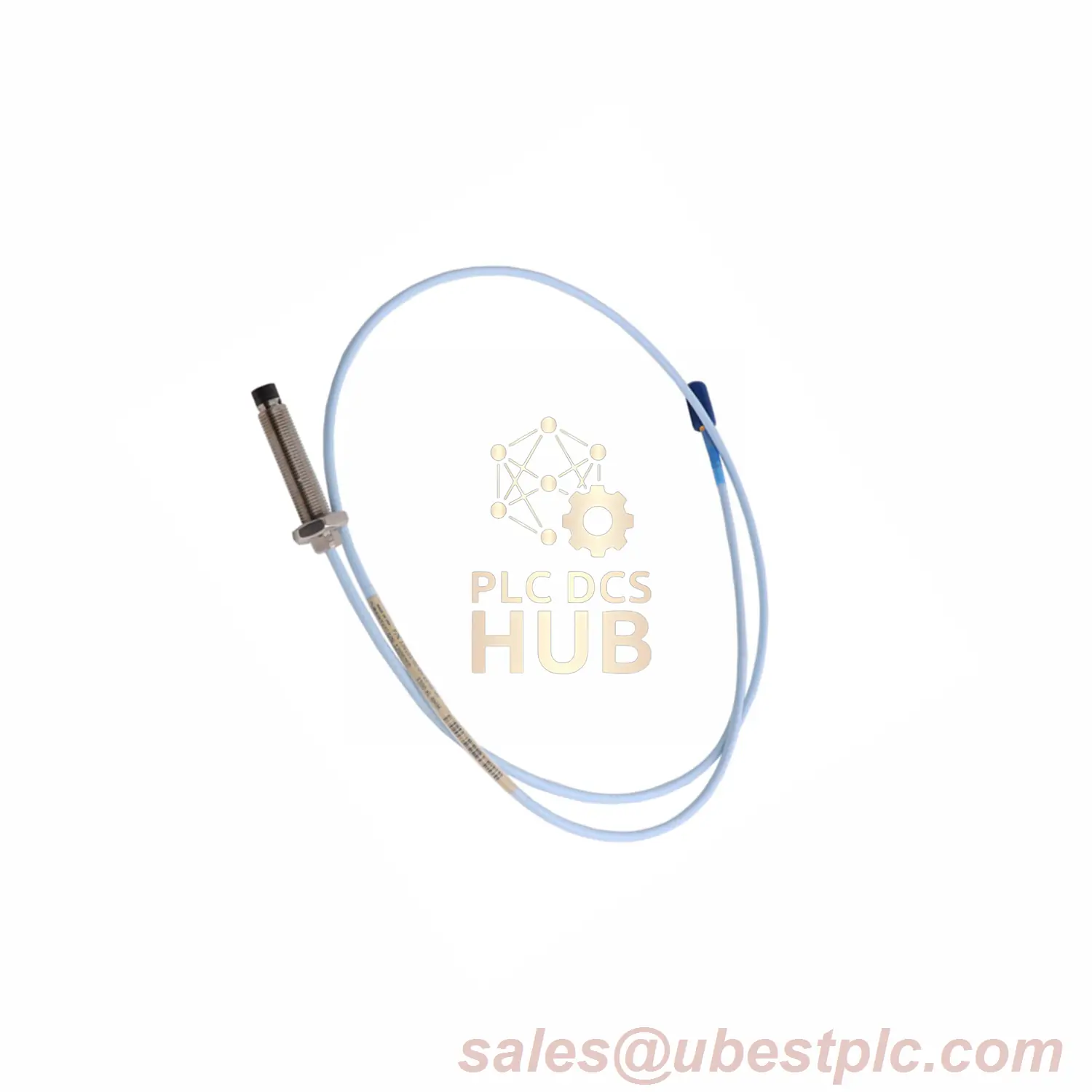

The Bently Nevada 3300 XL Probe (Model: 330851-02-000-060-10-00-00) has a 60mm stainless steel case (Code: 060) for tight spaces. Works without armor (Code: 00) in steam/dust areas. Handles 200°C heat daily and 250°C bursts.
Specifications
| Part Number | 330851-02-000-060-10-00-00 |
|---|---|
| Thread Type | M30x2 (Code: 02) |
| Case Length | 60mm (Code: 060) |
| Cable | 1m Triaxial (Code: 10) |
| Armor | None (Code: 00) |
| Resistance | 6.2Ω ±0.5 (1m cable) |
| Weight | 230g (8.1 oz) |
Performance
- Works from -35°C to +200°C (-31°F to +392°F)
- Survives 24hrs at 250°C (482°F)
- 75Ω triaxial signal output
Installation
| Max Torque | 163 N·m |
|---|---|
| Safe Torque | 68 N·m (50 ft·lb) |
| Cable Options | 1m/5m/9m PFA-insulated |
Certifications
- FCC Part 15
- EN 61000-6-2/4 (EMC)
- ABS Marine Approved
- ATEX Zone 2 (Code 00)
Real Use Example
Monitors water pump shafts in nuclear plants, giving vibration alerts in cooling systems with high steam exposure.
Package Includes
- 1x Probe (1m cable)
- Calibration report
- 12-month warranty
