Description
Compact Design

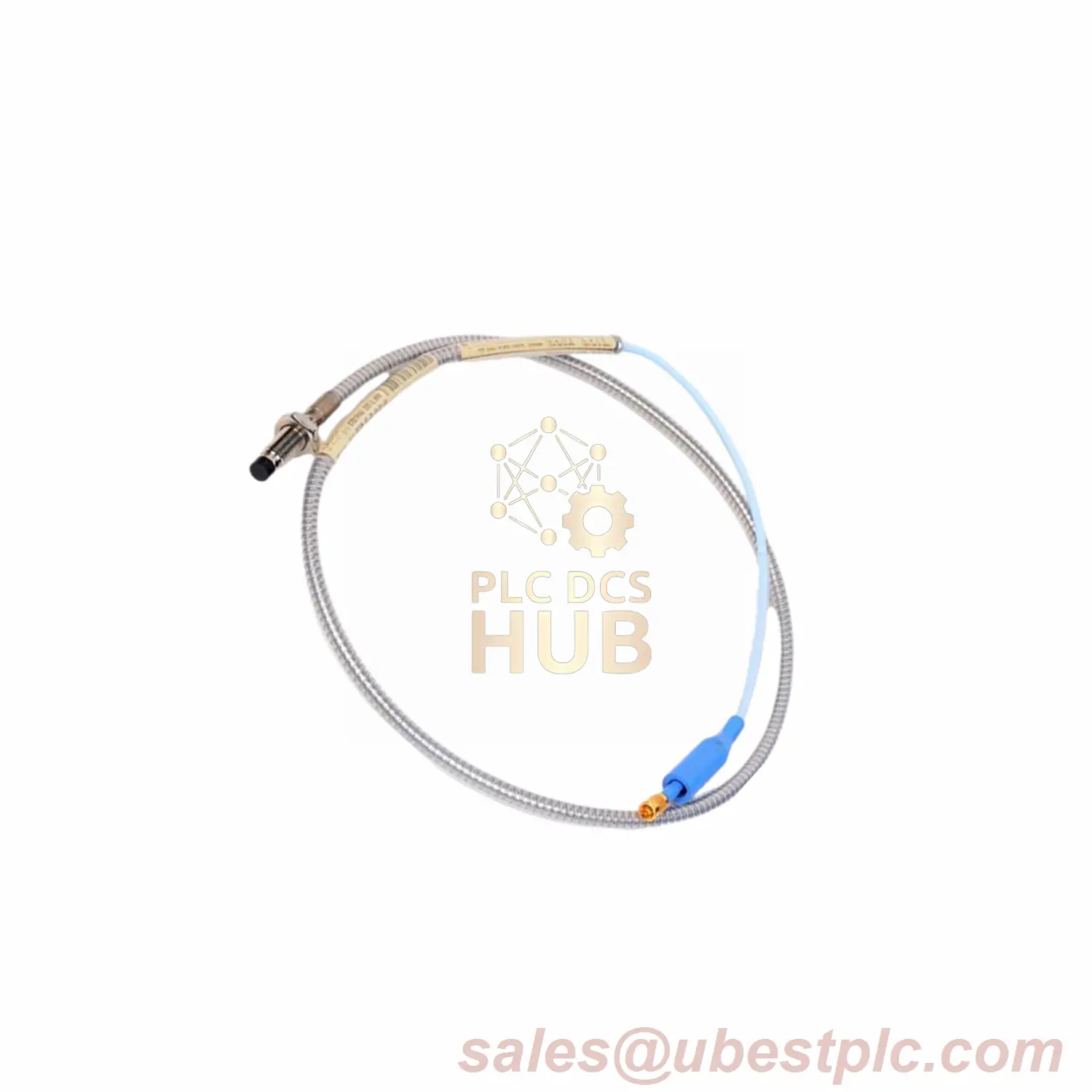

The Bently Nevada 3300 XL 25mm Probe (Model: 330851-02-000-030-10-00-00) features a 30mm short case for tight spaces. Made in USA, it replaces legacy 7200-series probes in steam turbines and compressors.
Critical Specs for 330851-02-000-030-10-00-00
| Case Length | 30mm |
|---|---|
| Thread Type | M30x2 (full threaded) |
| Cable Resistance | 6.2Ω ±0.5 (1m) |
| Temp Range | -35°C to +200°C (+250°C for 24h) |
| Weight | 230g (no armor) |
Key Components
- Tip: PEEK plastic (high heat resistance)
- Body: Stainless steel (AISI 304)
- Cable: 75Ω triaxial, 1/5/9m options
Installation Notes
- Max torque: 163 N·m (use 68 N·m for daily use)
- Works with M30x2 threaded mounts only
Certifications
- Safe for Zone 0 (with barriers)
- FCC, EN 61000 EMC, RoHS
- ABS marine approved
Industry Use
Oil Refinery Pumps: Monitors bearing vibration in high-pressure pumps exposed to chemicals and 180°C fluids. Resists corrosion from sulfur compounds.
Need Help? Email sales@ubestplc.com for datasheets or custom lengths.
Explore more detailed information in official datasheet here:
