Product Overview

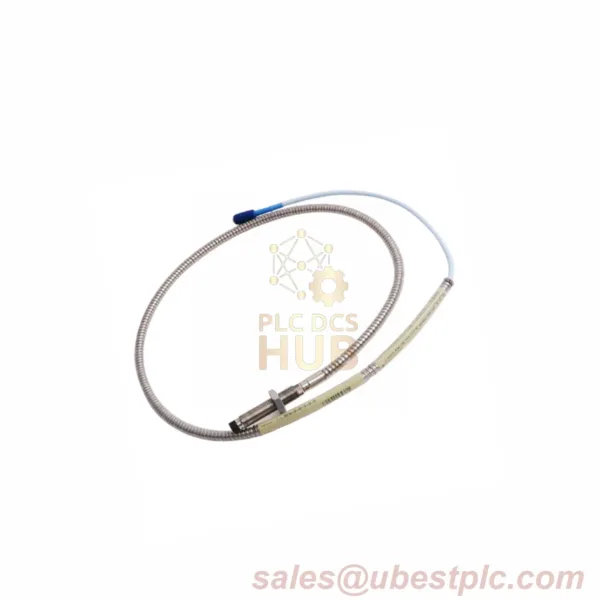

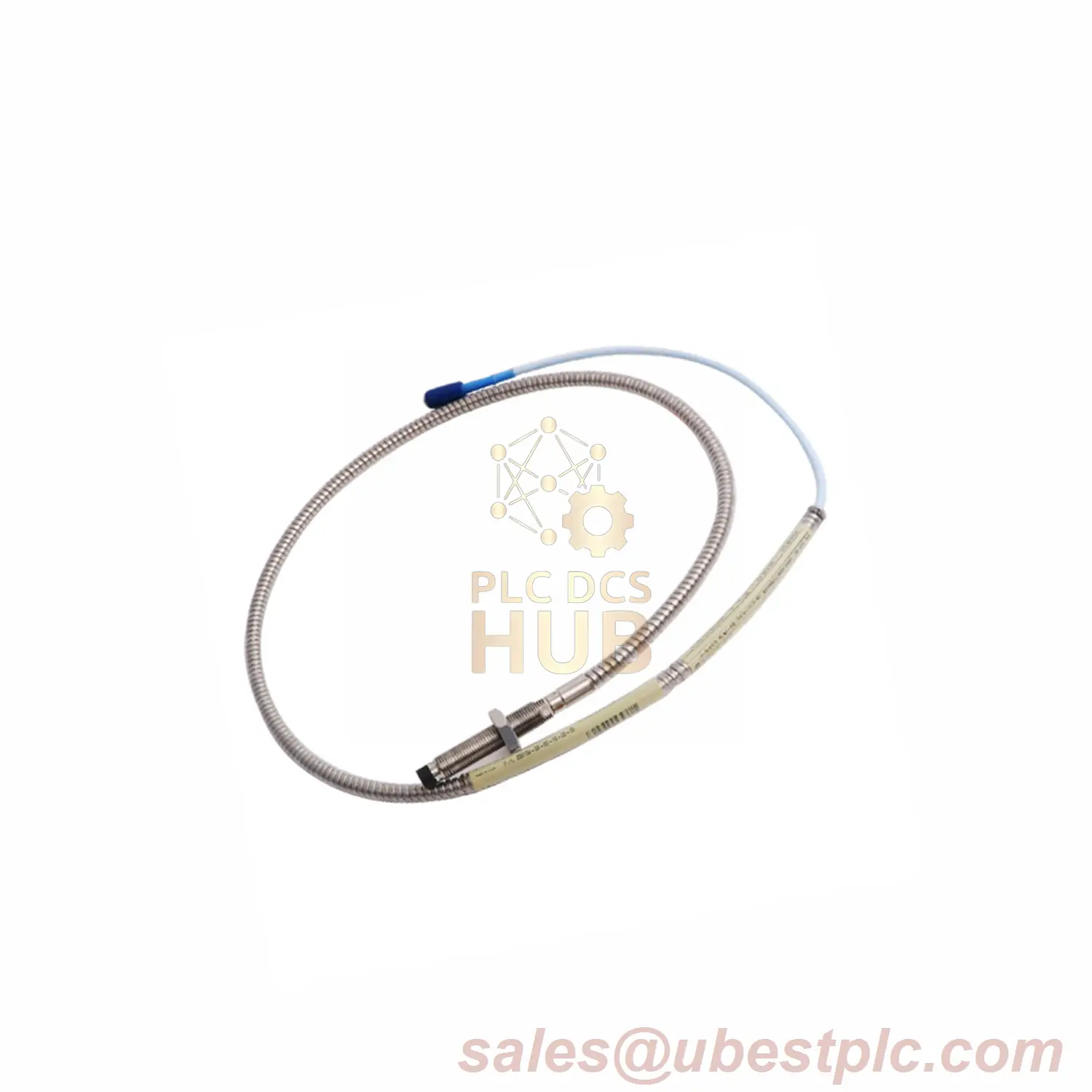

The Bently Nevada 3300 XL 25mm Proximity Probe (Full Model: 330851-02-000-080-10-00-00) is built for extreme industrial conditions. With an 80mm stainless steel case and M30x2 threaded design, it ensures reliable vibration measurement in high-heat environments.
Key Specifications
| Brand | Bently Nevada |
|---|---|
| Model Code | 330851-02-000-080-10-00-00 |
| Case Length | 80mm |
| Cable Length | 1.0m (3.3ft) |
| Resistance (1m) | 6.2Ω ±0.5 |
| Max Temperature | 200°C continuous, 250°C (24h max) |
Advanced Features
- Thread Type: M30x2 (no unthreaded section)
- Cable Type: 75Ω triaxial PFA FluidLoc®
- Weight: 230g (no armor), 330g (armored)
Installation Tips
- Use 68 N·m torque for safe mounting
- Works with M30x2 threaded holes
- Do not exceed 163 N·m maximum torque
Certifications
- ATEX/IECEx Zone 0 (with safety barriers)
- FCC Part 15, EN 61000 EMC
- ABS Marine Standards
Real-World Use Cases
Gas Turbine Monitoring: Measures blade vibration in power plants with 200°C exhaust zones. Survives oil contamination and rapid temperature changes.
Contact Technical Team: sales@ubestplc.com for datasheets or bulk orders.
