Description
Key Features

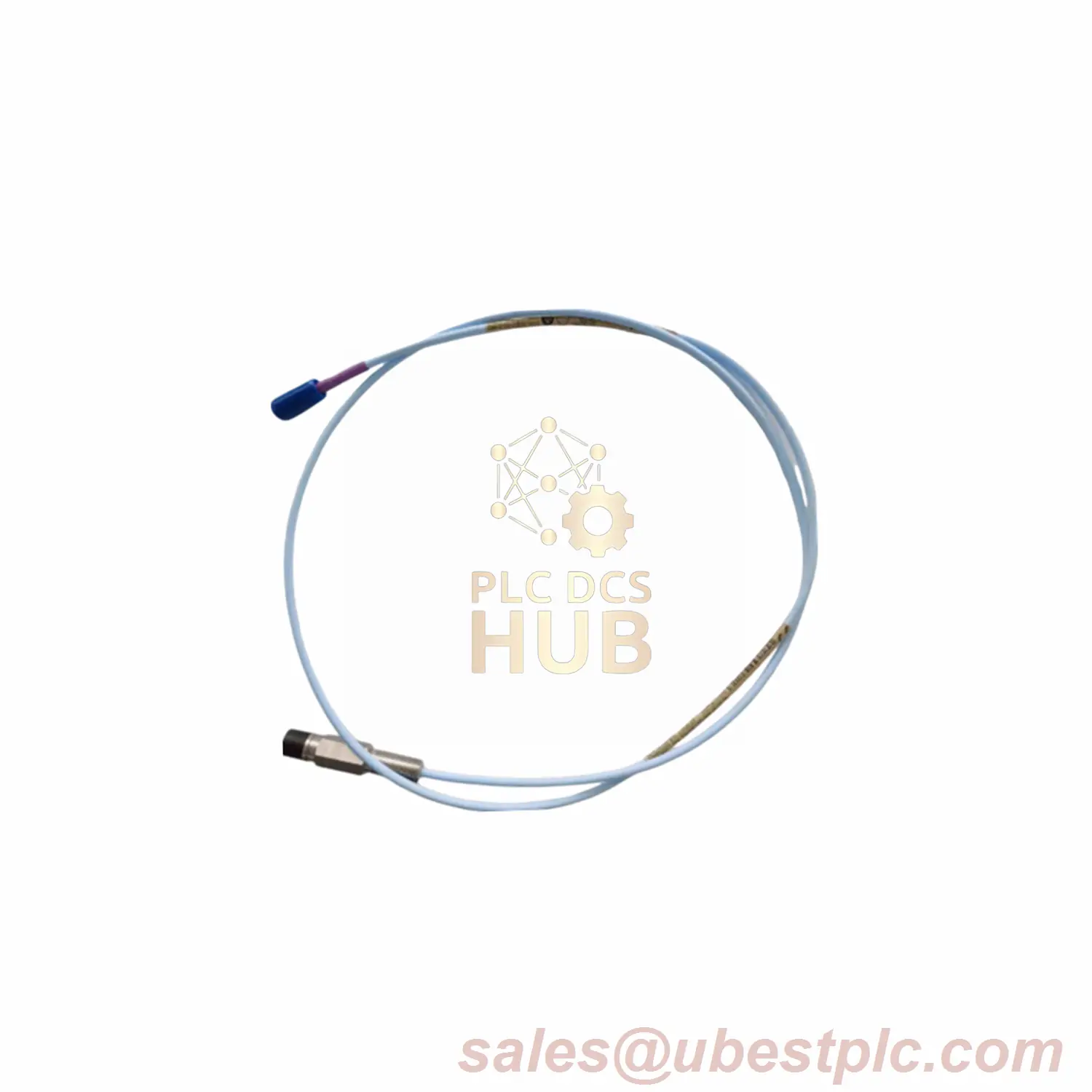

The Bently Nevada 3300 XL 25 mm Proximity Probe (Model: 330851-02-000-080-10-01-00) has an 80mm overall case length for flexible mounting. Built with AISI 304 stainless steel and PEEK tip, it works in extreme heat up to 200°C (392°F).
Technical Specifications
| Brand | Bently Nevada |
|---|---|
| Model Code | 330851-02-000-080-10-01-00 |
| Case Type | M30x2 Thread (Code: 02) |
| Case Length | 80mm (Code: 080) |
| Cable Length | 1.0m (Code: 10) |
| Armor | Stainless Steel Armor (Code: 01) |
| Resistance | 6.2 ±0.5 Ω (1m cable) |
| Output | 75 Ω Triaxial Signal |
Performance Data
| Max Temperature | 200°C (392°F) continuous 250°C (482°F) for ≤24 hours |
|---|---|
| Weight | 330g (11.6 oz) with armor |
| Cable Options | 1m, 5m, 9m lengths |
Installation Tips
- Use ≤68 N·m (50 ft·lb) torque for threading
- Works in temperatures from -35°C to +200°C
Certifications
| Safety | ATEX, IECEx (Zone 0/2) |
|---|---|
| EMC | EN 61000-6-2/4 |
| Marine | ABS Steel Vessel Rules |
Real-World Use
Monitors gas compressor bearings in oil refineries, providing vibration data in high-heat areas near furnace systems.
What’s Included
- 1x Probe with 1m cable
- Installation guide
- 1-year parts warranty
