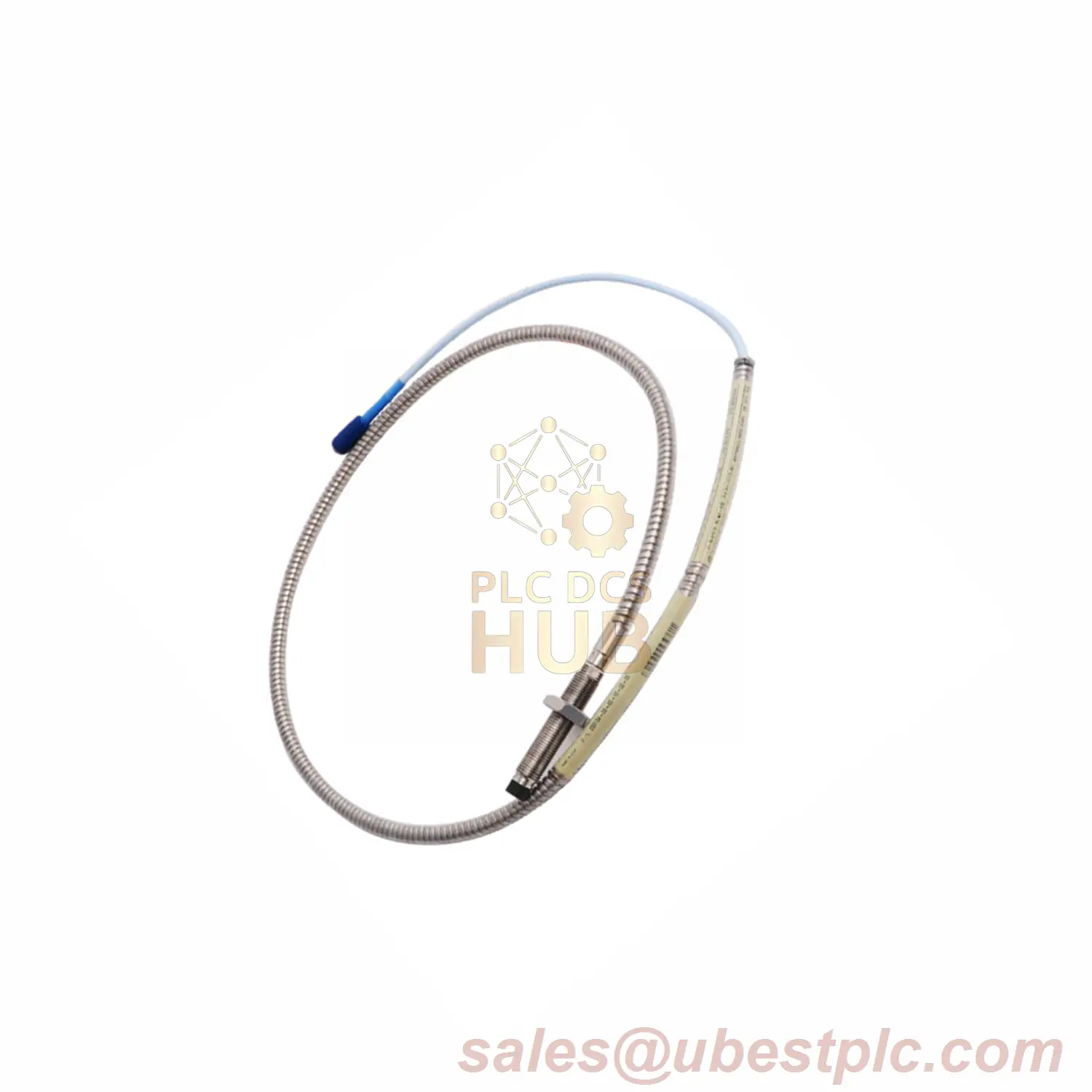

The Bently Nevada 3300 XL 25 mm Proximity Probe (Model: 330851-02-000-040-10-00-00) is a rugged sensor for industrial vibration monitoring. Designed for harsh environments like steam turbines, it operates at up to 200°C and survives short-term temperatures up to 250°C. Compatible with older 7200-series probes, it ensures easy replacement.
Technical Data
| Brand | Bently Nevada |
|---|---|
| Model | 3300 XL 25 mm Proximity Probe |
| Full Suffix | 330851-02-000-040-10-00-00 |
| Range | 25 mm sensing distance |
| Accuracy | Probe resistance: 6.2 ±0.5 Ω (1m cable) |
| Output Signal | 75 Ω triaxial PFA cable |
| Operating Temp | -35°C to +200°C (up to 250°C for 24h) |
| Weight | 230g (1m cable, no armor) |
Installation Guide
- Torque: Max 163 N·m, recommended 68 N·m
- Case Material: AISI 304 SST
- Tip Material: PEEK polymer
Compatibility
Replaces 7200 25mm/35mm probes and DE Integral systems (side/rear exit).
Certifications
- FCC Part 15
- EN 61000-6-2/6-4
- RoHS, ABS Maritime
- ATEX/IECEx: Zone 0/2 (with barriers)
Package & Warranty
- Includes probe, 1m cable, documentation
- 1-year limited warranty
Contact: sales@ubestplc.com for quotes or specs.
