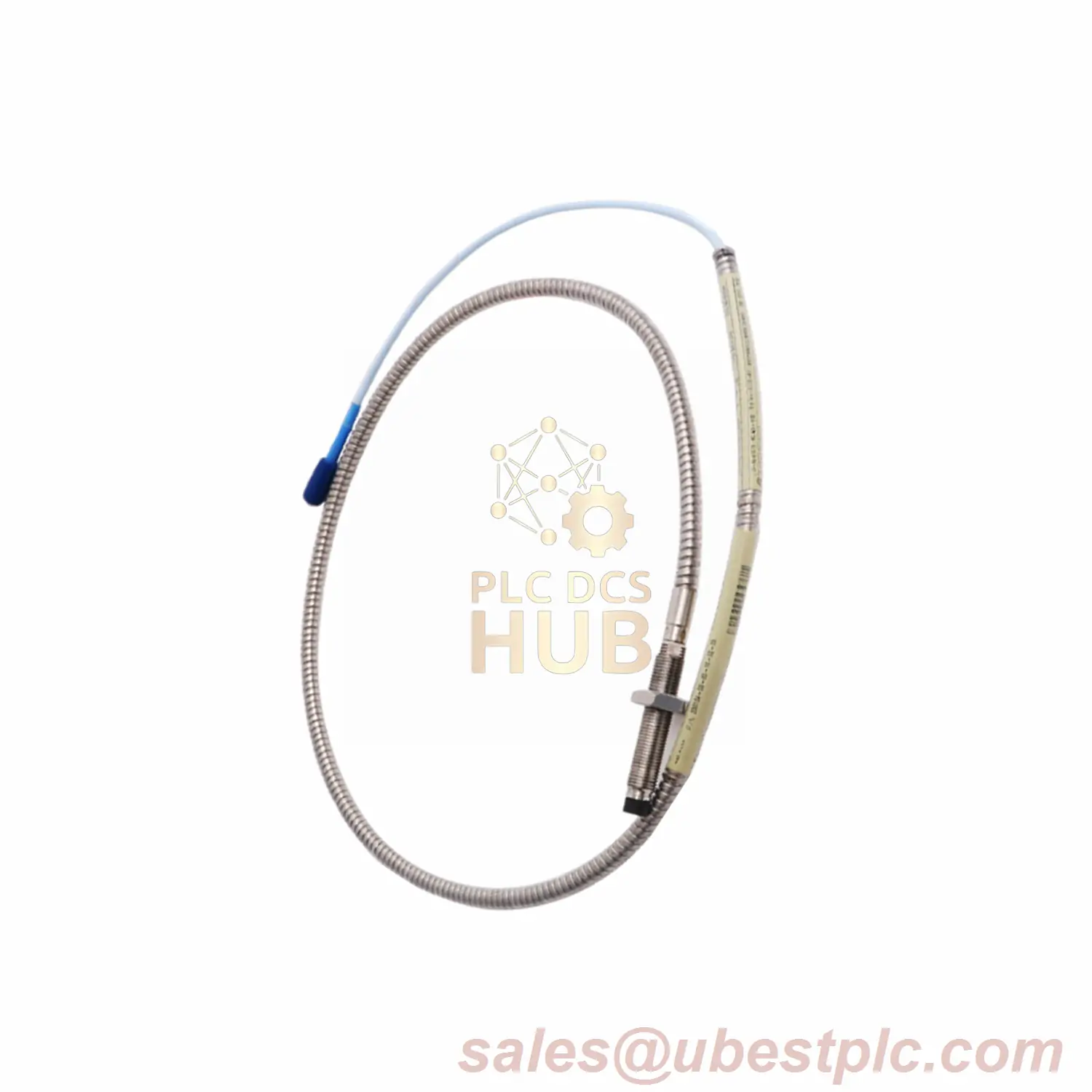

The Bently Nevada 3300 XL 25 mm Proximity Probe (Model: 330851-02-000-030-10-01-00) is a rugged sensor designed for harsh steam turbine environments. Built with stainless steel (AISI 304) and a PEEK tip, it withstands temperatures up to 200°C (392°F) continuously and 250°C (482°F) short-term. Compatible with legacy systems like 7200 series probes, it ensures reliable performance in vibration monitoring.
Technical Data
| Brand | Bently Nevada |
|---|---|
| Model | 330851-02-000-030-10-01-00 |
| Full Suffix | 02 (M30x2 Thread), 000 (0 in Unthreaded), 030 (30mm Case), 10 (1m Cable), 01 (SST Armor), 00 (No Approvals) |
| Range | 25 mm |
| Accuracy | Probe Resistance: 6.2 ±0.5 Ω (Center to Outer Conductor) |
| Output Signal | 75 Ω Triaxial (PFA Insulated Cable) |
| Operating Temp. | -35°C to +200°C (-31°F to +392°F) |
Installation Guide
| Torque (Threaded Cases) | Max: 163 N·m (120 ft·lb) | Recommended: 68 N·m (50 ft·lb) |
|---|---|
| Weight | 230 g (8.1 oz) without armor | 330 g (11.6 oz) with armor |
Compatibility
Replaces 7200 25 mm, 7200 35 mm, and 25 mm DE Integral systems (side/rear exit probes).
Certifications
- FCC Part 15
- EN 61000-6-2/4, EMC Directive 2014/30/EU
- RoHS 2011/65/EU
- ABS Maritime Standards
- ATEX/IECEx: Zone 0/2, Class I/II/III
Packaging & Warranty
- 1x Proximity Probe
- Installation Manual
- Calibration Certificate
- 1-Year Limited Warranty
