Description
Product Description

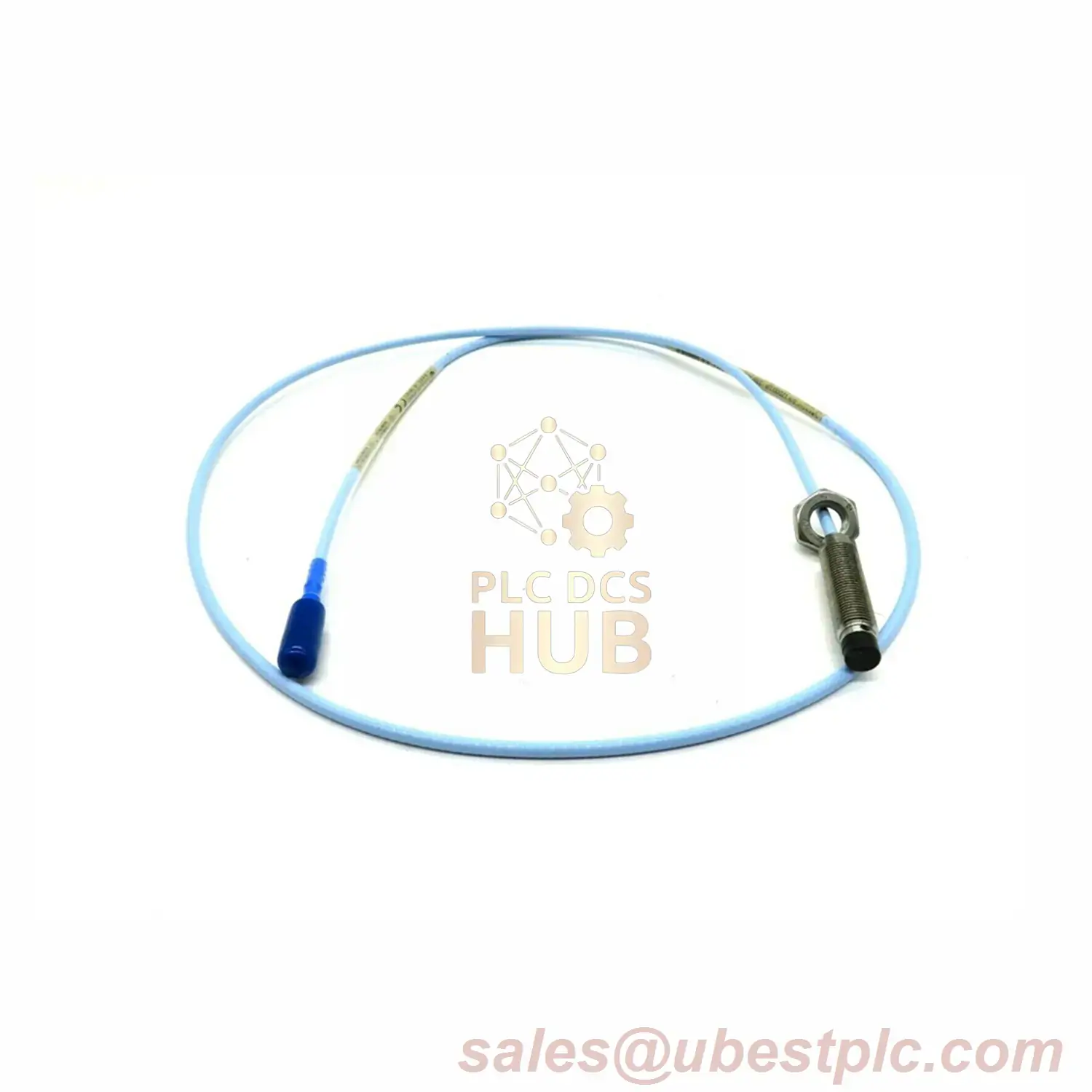

The Bently Nevada 3300 XL 8 mm Proximity Probe (P/N: 330104-00-02-90-01-CN) is designed for precise vibration and position measurement in industrial systems. Features an M10x1 threaded stainless steel case, PPS tip, and Viton® seal. Includes a 9.0m standard cable with ClickLoc connector.
Key Specifications
| Brand | Bently Nevada |
|---|---|
| Full Model | 330104-00-02-90-01-CN |
| Unthreaded Length | 00=0 mm |
| Case Length | 02=2 mm |
| Cable Type | 01=Standard cable |
| Resistance | 9.87 Ω ±0.50 Ω (9m cable) |
| Voltage Range | -17.5V to -26V DC |
| Max Altitude | 2000 meters |
Installation Tips
- Mount using M10x1 threads
- Keep 1.27 mm gap from target
- Use with 10 kΩ load
Certifications
- AEx/Ex ia IIC T1-T5 (Zone 0)
- AEx/Ex ec IIC T1-T5 (Zone 2)
- ATEX/IECEx compliant
What’s Included
- 1x 8 mm probe
- ClickLoc connector
- Installation guide
Performance Data
- Temp range: -55°C to +232°C (probe)
- Output stability: <2mV/V
- Seal pressure: Viton® O-ring
Real-World Uses
- Power plant turbine monitoring
- Oil pipeline pump alignment
- Paper mill roller positioning
Support & Warranty
1-year performance guarantee. Contact for technical help:
Email: sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
